A-GAGE EZ-ARRAY
QuickStart Guide
Receiver Interface
4.4 Inverting the 3-Digit Display
For instances where the sensors must be mounted in an
inverted position, the 3-digit display can be can be inverted for
readability. See the remote teach process below (Section 4.5).
The 3-digit display can then be switched back to “normal” by
repeating the process.
4.5 Remote Teach (Receiver Gray Wire)
Alignment, blanking, sensitivity, invert display and DIP switch
enable/disable can be set remotely. To access this feature,
connect a normally open switch between the receiver’s gray wire
and dc common, or connect the gray wire to a digital input (PLC)
and pulse the wire as indicated below.

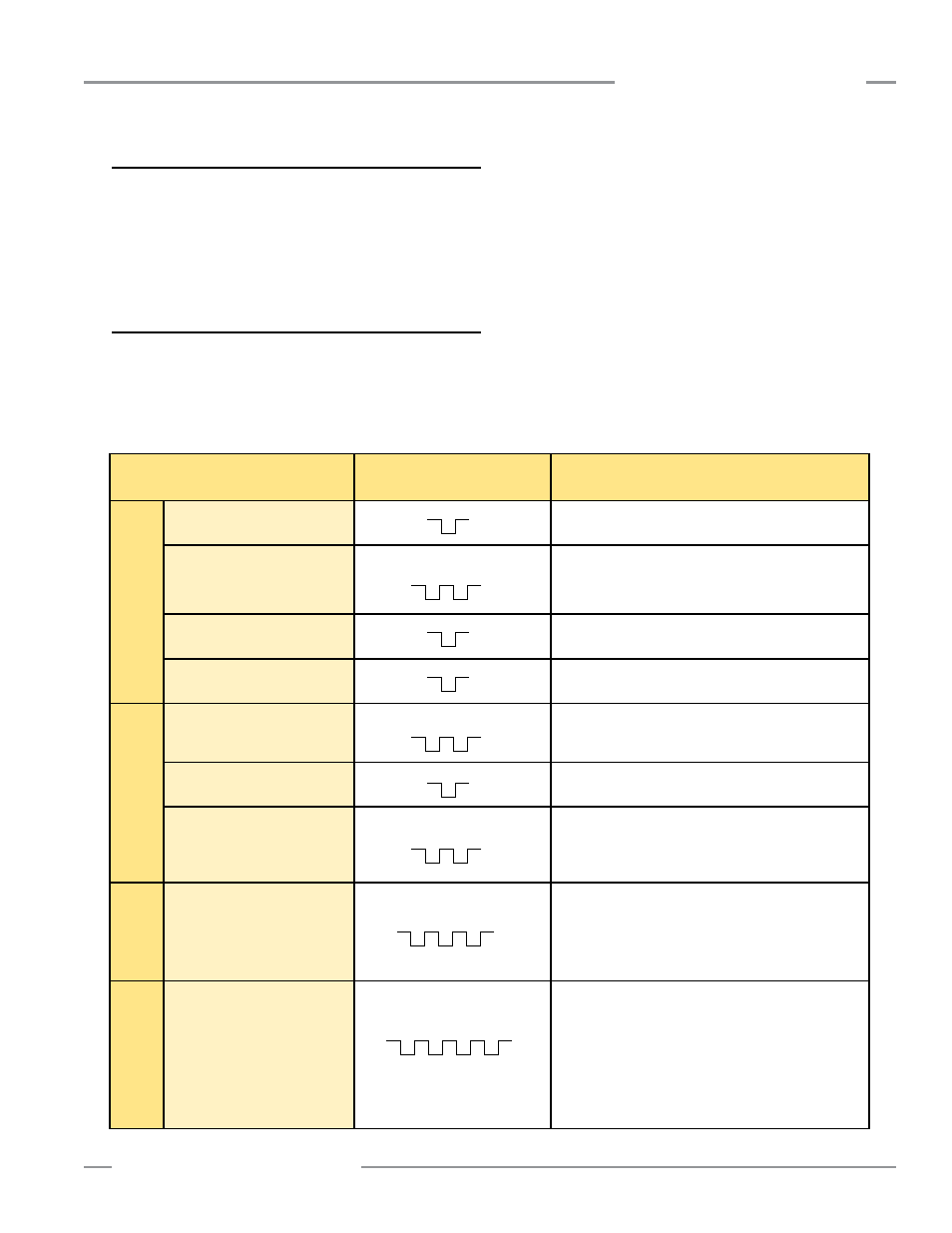

Remote Wire Procedure
0.05 sec. ≤ T ≤ 0.8 sec.
Result
Alignment
/B
lanking
Access Alignment Mode
“A” appears on 3-digit display
Access Blanking Mode
From Alignment Mode:
“n” appears on 3-digit display, along with number of
blocked beams
Exit Blanking Mode
“A.” appears on 3-digit display (sensor returns to
alignment mode with blanking enabled)
Exit Alignment Mode
Sensor returns to run mode
Gain
Method
Access Gain Mode
From Run Mode:
“L” appears on 3-digit display, along with number “1”
or “2”, to designate gain level
Toggle Between Gain Levels
Number changes from number “1” to “2”, back to “1”,
etc.
Save Gain Level and Exit
When correct level is displayed:
Gain level is configured:
“1” = High-excess-gain setting
“2” = Low-contrast setting
Sensor returns to run mode
Invert
Display
Invert Display
Display inverts from previous state; sensor continues
in run mode
Receiver
Interface
Enable/Disable
Receiver Interface
Enable/Disable
The factory default is Receiver Interface enabled.
Four-pulsing the remote line saves the current settings
and disables the interface (the sensor continues to
operate using the saved settings; changes made to
the DIP switch will have no effect).
Repeating the process enables the Receiver Interface
so that settings can be changed.
