Page 5

I/O Point
Modbus Holding Register
I/O Type
Gateway
Any Node
5
5
5 + (Node# × 16)
Serial device 1, secondary input 2; OR Serial device 2, primary input 2; OR Dis-
crete IN 4
0h04*
0h01
6
6
6 + (Node# × 16)
Serial device 1, secondary input 3; OR Serial device 2, primary input 3; OR Dis-
crete IN 2
0h05*
0h02
7
7
7 + (Node# × 16)
Reserved
8
8
8 + (Node# × 16)
Device Message
9
9
9 + (Node# × 16)
Serial device 1, primary output 1
0h00
10
10
10 + (Node# × 16)
Serial device 1, primary output 2
0h01
11
11
11 + (Node# × 16)
Serial device 1, primary output 3
0h02
12
12
12 + (Node# × 16)
Serial device 1, secondary output 1; OR Serial device 2, primary output 1
0h03*
0h00
13
13
13 + (Node# × 16)
Serial device 1, secondary output 2; OR Serial device 2, primary output 2
0h04*
0h01
14
14
14 + (Node# × 16)
Serial device 1, secondary output 3; OR Serial device 2, primary output 3
0h05*
0h02
15
15
15 + (Node# × 16)
Control Message
16
16
16 + (Node# × 16)
Reserved
* Based on DIP switch settings.

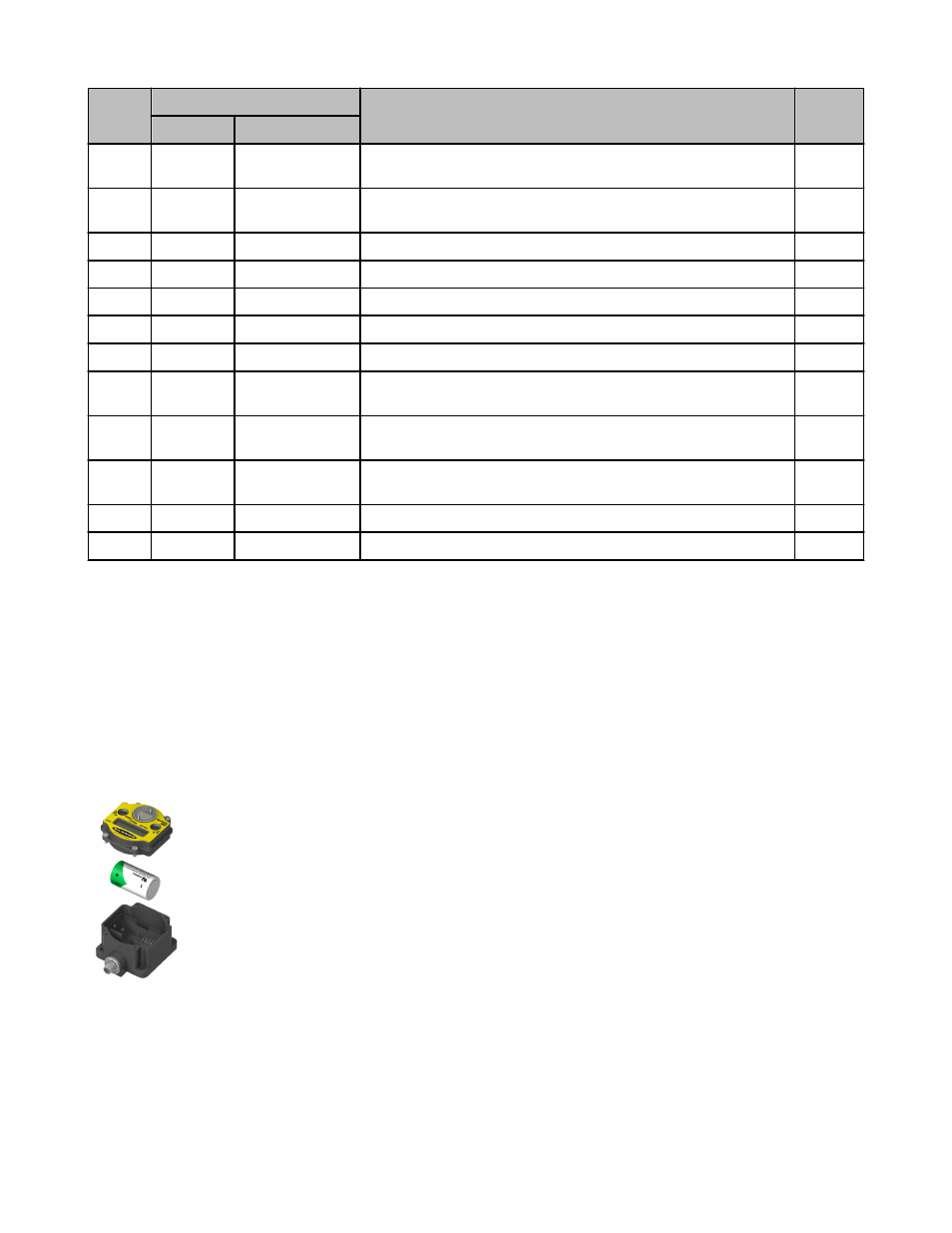

Replacing the Integrated Battery (DX80 Models)
To replace the lithium "D" cell battery in any integrated housing model, follow these steps.
1. Remove the four screws mounting the face plate to the housing and remove the face plate.
2. Remove the discharged battery and replace with a new battery. Only use a 3.6V lithium battery from Xeno, model number XL-205F.
3. Verify the battery’s positive and negative terminals align to the positive and negative terminals of the battery holder mounted within
the case. The negative end is toward the spring. Caution: There is a risk of explosion if the battery is replaced incorrectly.
4. After replacing the battery, allow up to 60 seconds for the device to power up.
When removing the battery, press the battery towards the negative terminal to compress the
spring. Pry up on the battery’s positive end to remove from the battery holder. Properly dispose
of your used battery according to local regulations by taking it to a hazardous waste collection
site, an e-waste disposal center, or other facility qualified to accept lithium batteries.
As with all batteries, these are a fire, explosion, and severe burn hazard. Do not burn or expose
them to high temperatures. Do not recharge, crush, disassemble, or expose the contents to wa-
ter.
Replacement battery model number: BWA-BATT-001. For pricing and availability, contact Ban-
ner Engineering.
Specifications
Radio range is with the 2 dB antenna that ships with the product. High-gain antennas are available, but the range depends on the envi-
ronment and line of sight. To determine the range of your wireless network, perform a Site Survey.
For European applications, power the DX80 from a Limited Power Source as defined in EN 60950-1.
SureCross DX80 Serial Node with Integrated Battery
P/N 137322 Rev. F
