￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3 Installation
858 Professional Sample Processor ￭￭￭￭￭￭￭￭ 35
More detailed information concerning the configuration of the
instrument can be found in the documentation for the respective PC
software.
3.14 Connecting MSB devices
In order to connect MSB devices, e.g.stirrers or dosing devices, Metrohm
instruments are equipped with up a maximum of four connectors at what
is referred to as the Metrohm Serial Bus (MSB). Various kinds of peripheral
devices can be connected in sequence (in series, as a "daisy chain") at a
single MSB connector (8-pin Mini DIN socket) and controlled simultane-
ously by the respective control instrument. In addition to the connection
cable, stirrers and the remote box are each equipped with their own MSB
socket for this purpose.

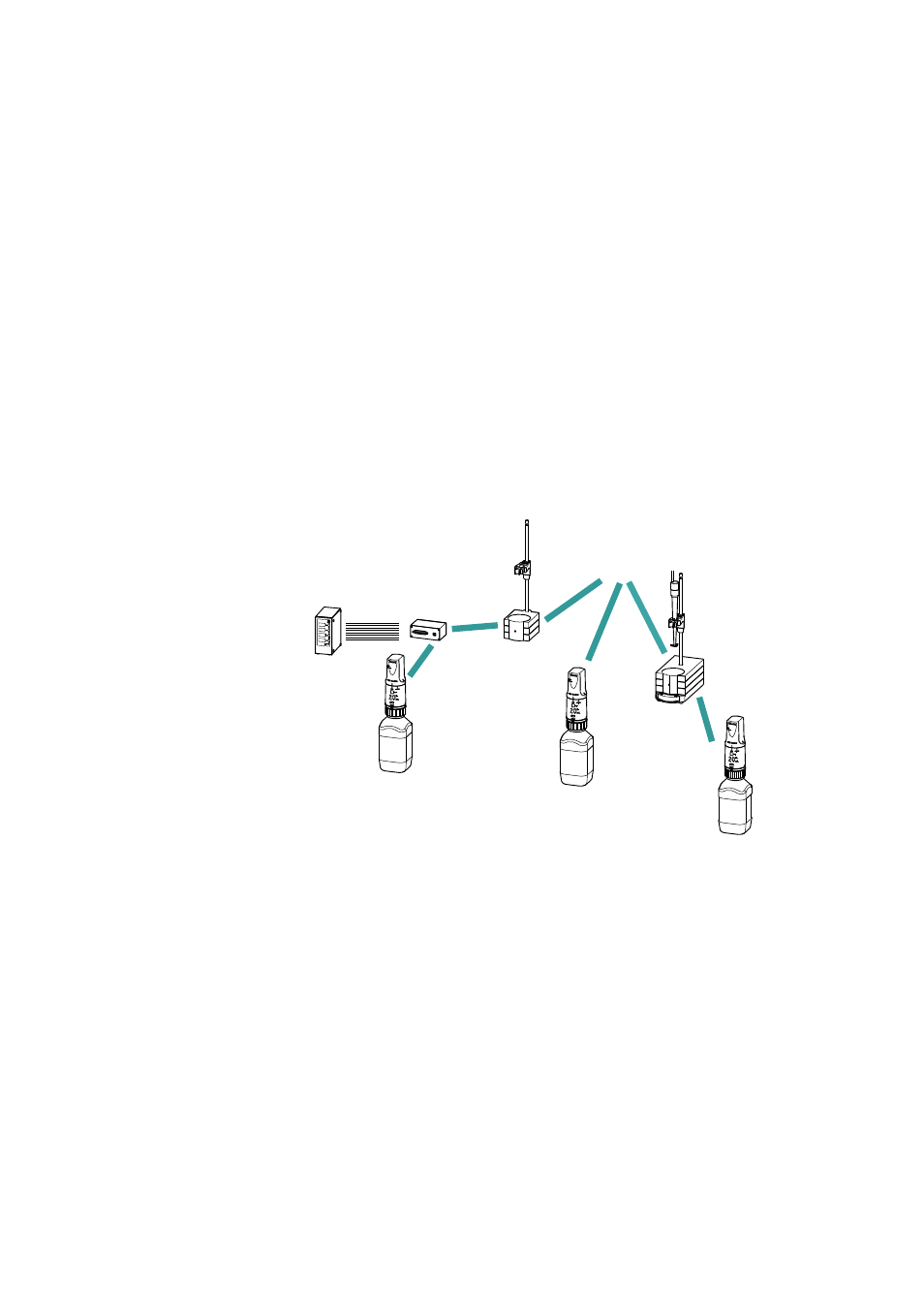

The following illustration provides an overview of the devices that can be
connected to an MSB socket, along with a number of different cabling
variations.
MSB
Stirrer / Ti Stand
Dosino
Remote Box
Dosino
Dosino
Relay Box
Ti Stand / Stirrer
Figure 34 MSB connections
The question of which peripheral devices are supported depends on the
control instrument.
