Handson

Manual

15.4 M

ODEL

ROPERTIES

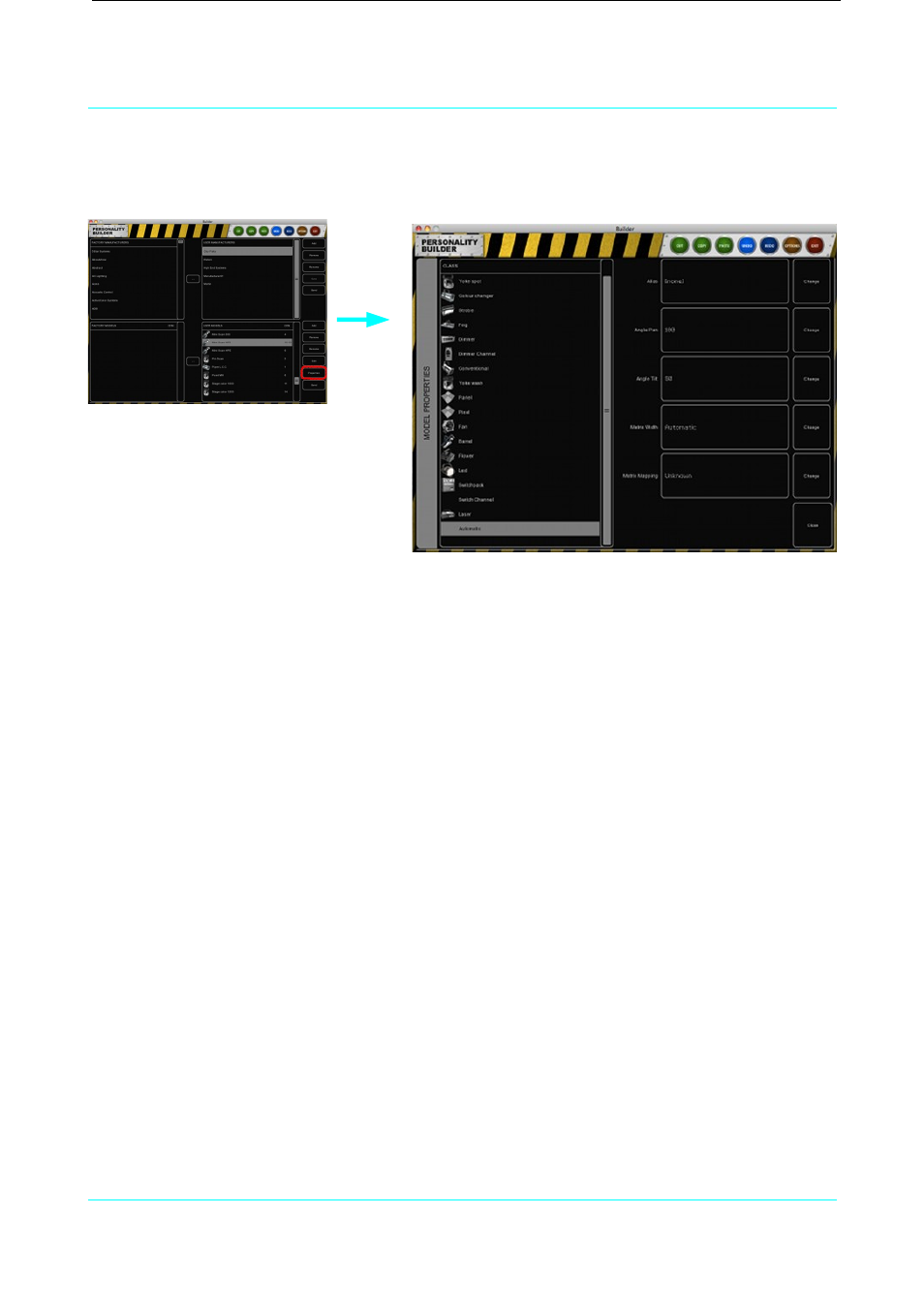

In the main overview, select the model that you want to edit and click PROPERTIES.

This dialog allows you to enter the

following properties:

Alias
The Alias feld defnes a default name when

patching this model in Handson. If you
leave this feld blank it will use the name of

the model instead.

Angle Pan
Maximum pan movement, when the light is not a moving light you do not need to change this.

Angle Tilt

Maximum tilt movement, when the light is not a moving light you do not need to change this.

Matrix Width
Width of a matrix; by setting the width Handson will calculate the height of the matrix according to the

number of sub-fxtures.

Matrix Mapping
If the model has multiple subs and is used for matrix control, then here you can fll in the order in which

the subs are layed out.

Class
The Class of a model is set to “Automatic” by default; Handson determines what type of fxture it is and

shows the relating icon. You can override this by manually selecting a class.
