UNIVERSAL DIGITAL PROTRACTOR
For more information visit www.moore-and-wright.com Partners in Precision
、 ：
；
Use acute angle attachment
for 0-15
、 ；
、 ：
、 ：

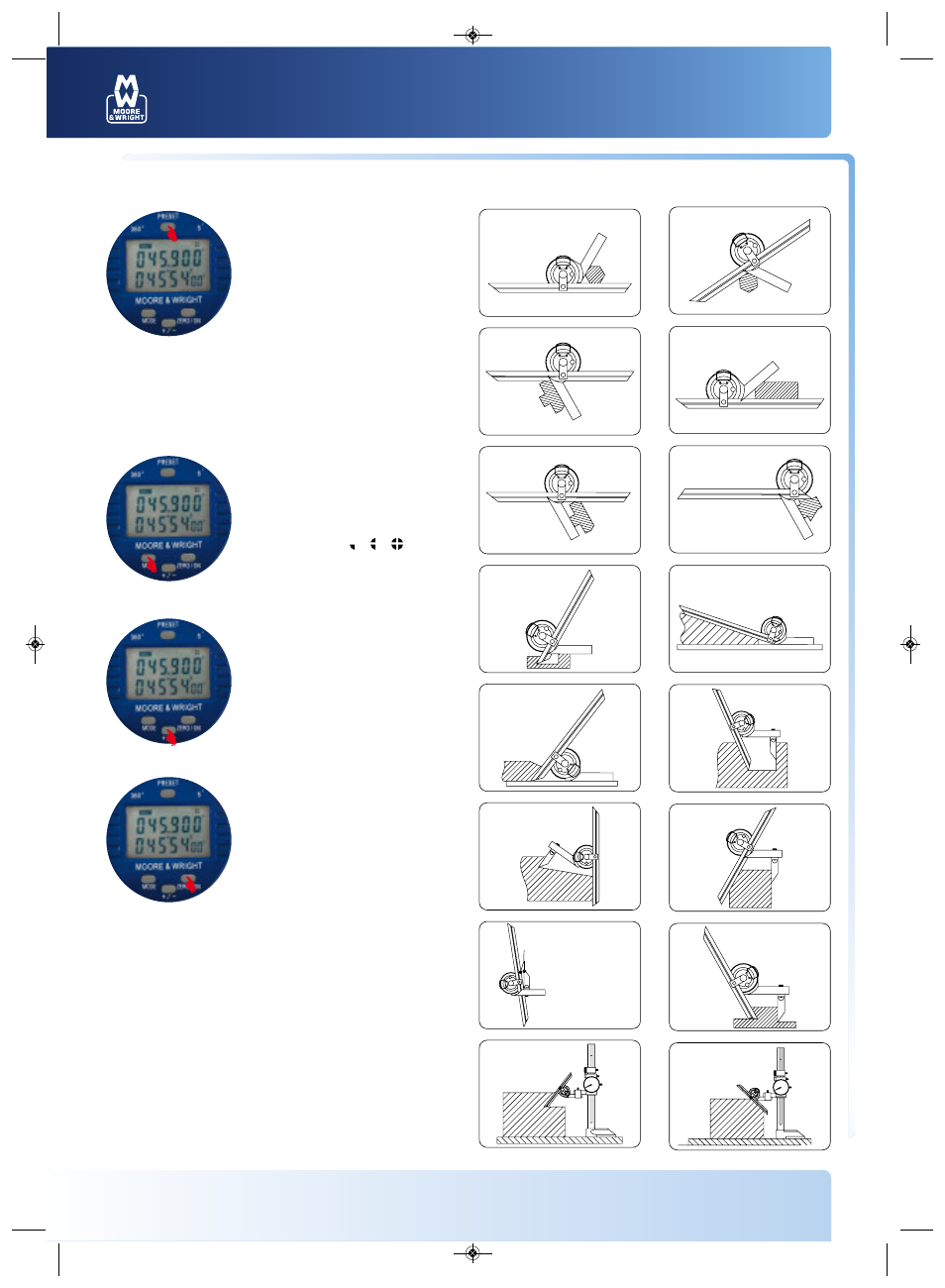

Button usage How to use
1) PRESET button
a) Short press this button to enter
setting mode; LCD will show
single row digits and the cursor
will flash
b) Short continually press to
change the pre-value as
required then long press to
move the cursor to the location
you want to change the value of
c) Once set, short press "ZERO"
button to exit setting mode, the
LCD will display setting value
and show double-row digits
2) MODE button
Short press this button; you can
choose 0-90°, 0-180° and 0-360°,
the LCD will display
、 ：
；
、 ；
、 ：
、 ：
3) +/- button
Short press this button to change
direction of display (when the LCD
displays 360°00 00", after a short
press of this button, the LCD will
display 000°00’00")
4) ZERO/ON button
a) Short press this button to
zeroset at any degrees or
to power on
b) Long press this button to
power off
Trouble shooting
Failure
1) LCD flashes rapidly
2) The display is locked
3) Nothing appears on the LCD
Corrective measures
1) Replace new battery
2) Remove battery and reinstall it after 30 seconds
3) Keep good contact for battery
Possible situation
1) Battery power low
2) Circuit problem
3) Battery has poor contact
