31
Peak Envelope Power
RF Power Range
13.3 – 1300 W
a
a. Max. power depends on frequency and system VSWR.
Measurement Uncert.:
burst width > 200 μs
1 μs < b.w. < 200 μs
burst width < 1 μs
burst width < 0.5 μs
± (7% of reading + 0.7 W)
b
b. Above 35 °C or below 15 °C add 3%
For D < 0.1 add 0.1 W
For period > 0.1s add (1.5% + 0.15 W)
± (10% of reading + 1.4 W)
b
± (15% of reading + 1.4 W)
b
± (20% of reading + 1.4 W)
b
Minimum Pulse Width:
400 ns

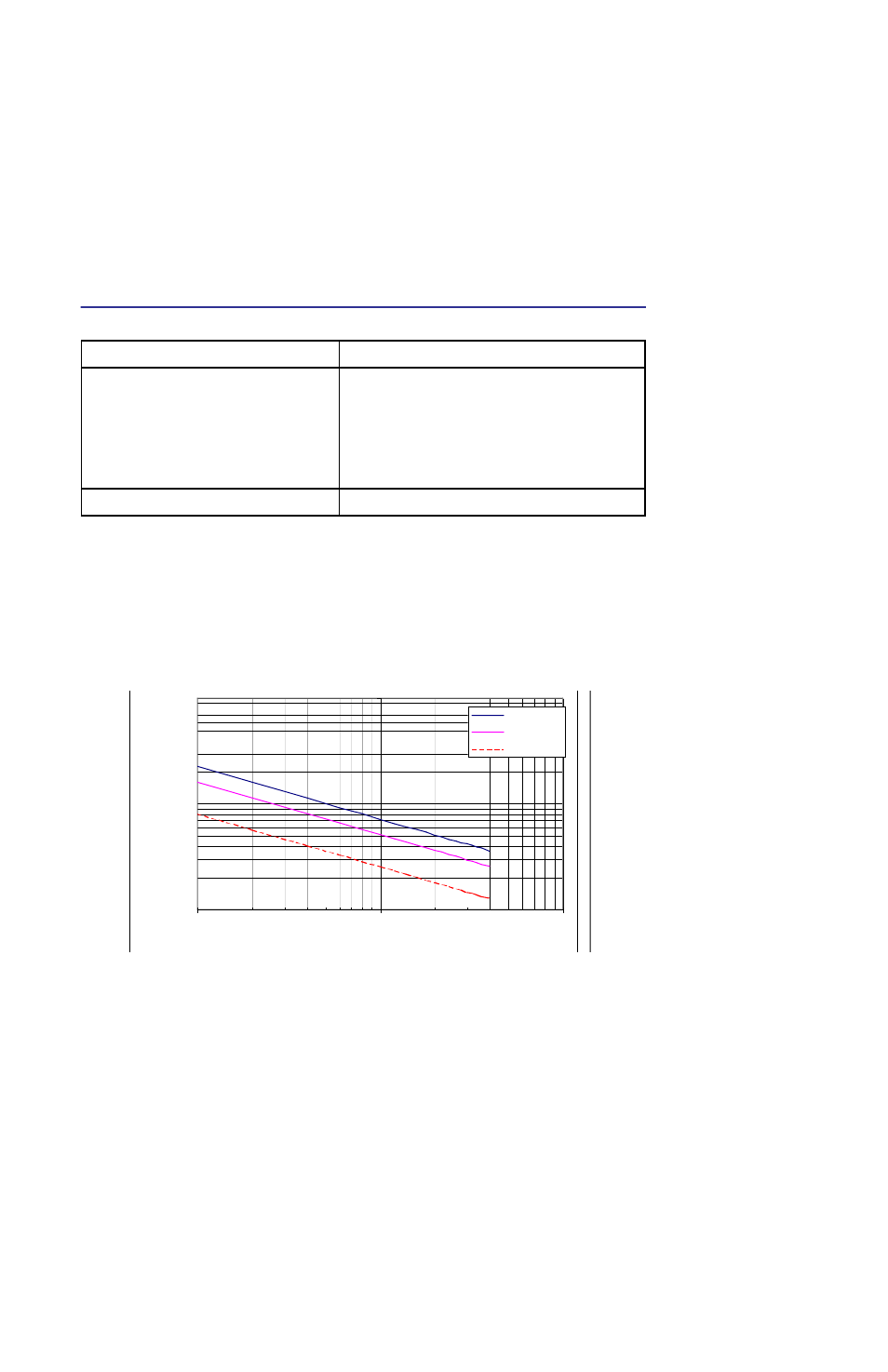

Figure
12
Max. Peak Power
100
1000
10000
0.1
1
10
Frequency (GHz)
P
o
w
e
r (W
a
tts
)
VSWR=1
VSWR=1.5
VSWR=3
