Instruction sheet wideband coupler, Description

background image

920-WBC

Rev. A

Page 1 of 6

Description

The Bird Wideband Coupler is a short length of line section with two directional couplers, allowing the RF
power in the line to be sampled with the Bird 5011 Terminating Power Sensor (TPS). Couplers are available
for either UHF or VHF operation in a variety of line sizes and power ratings.

To provide accurate power readings, the Wideband Coupler is measured across its frequency band to
determine the exact coupling factors. These are provided on a label on the back of the unit.

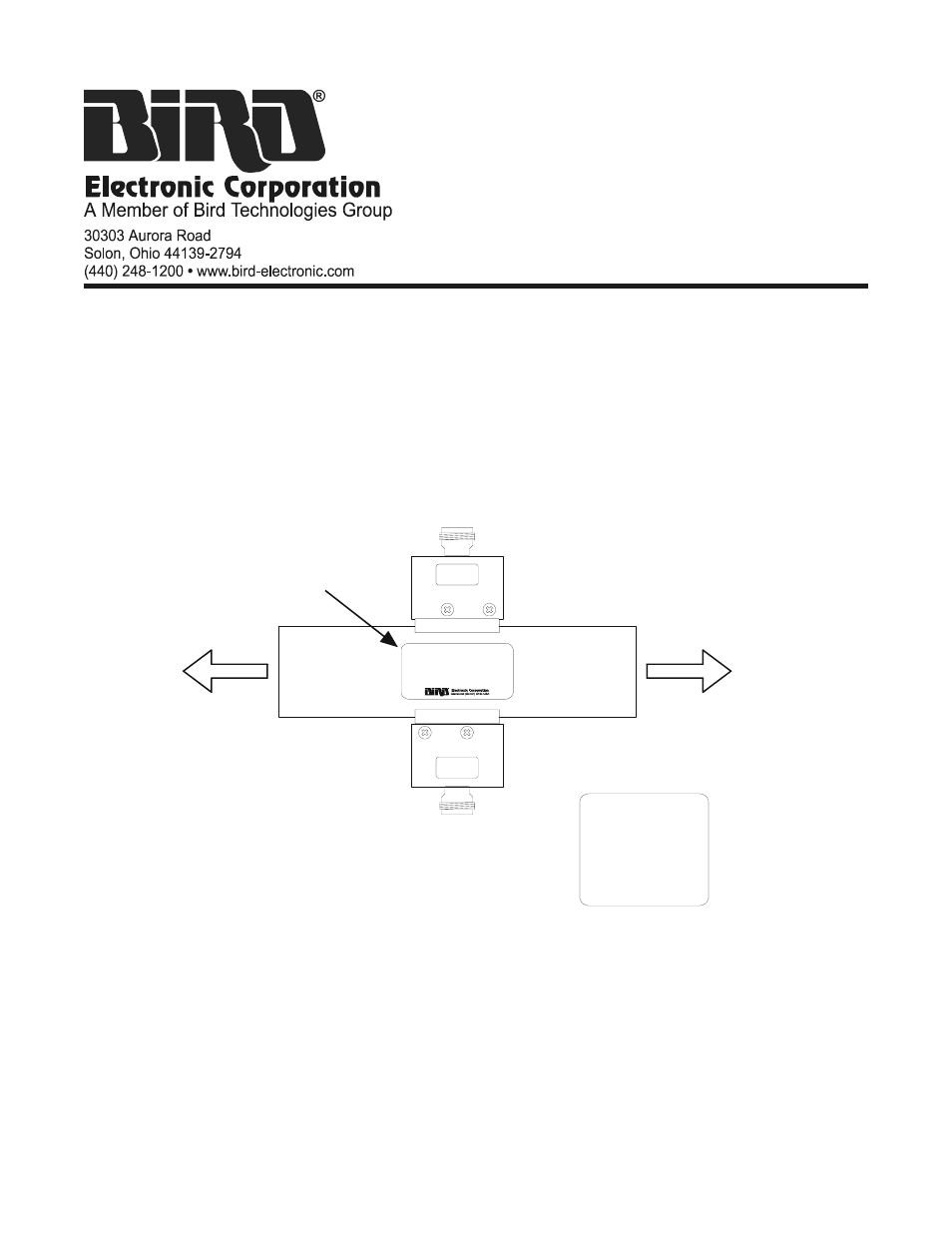

Instruction Sheet

Wideband Coupler

FWD

RFL

IN

P

U

T

O

U

T

P

U

T

WIDEBAND

COUPLER

FREQ

(MHz)

:
:

557
563

569

:

COUPLING

FWD

:
:

63.9543
63.6121

63.6100

:

RFL

:
:

63.9543
63.6121

63.6100

:

COUPLING FACTORS

(ON BACK OF

LINE SECTION)

FORWARD

COUPLER

NAMEPLATE

REFLECTED

COUPLER

TO RF

SOURCE

TO LOAD

OR ANTENNA
