Page 42: Average power match measurement, 30 average power

30
Average Power
RF Power Range
500 mW – 500 W
Peak/Average Ratio, Max 12 dB
Measurement Uncert.
± (4% of reading + 166 mW)
a
a. Above 35 °C or below 15 °C add 3%
Match Measurement
Measurement Range:
Return Loss
Rho (
)
VSWR
0 to 23 dB
0.07 to 1.0
1.15 to 99.9
Forward Power, Min
0.05 W
Measurement Uncert.
Figure
11

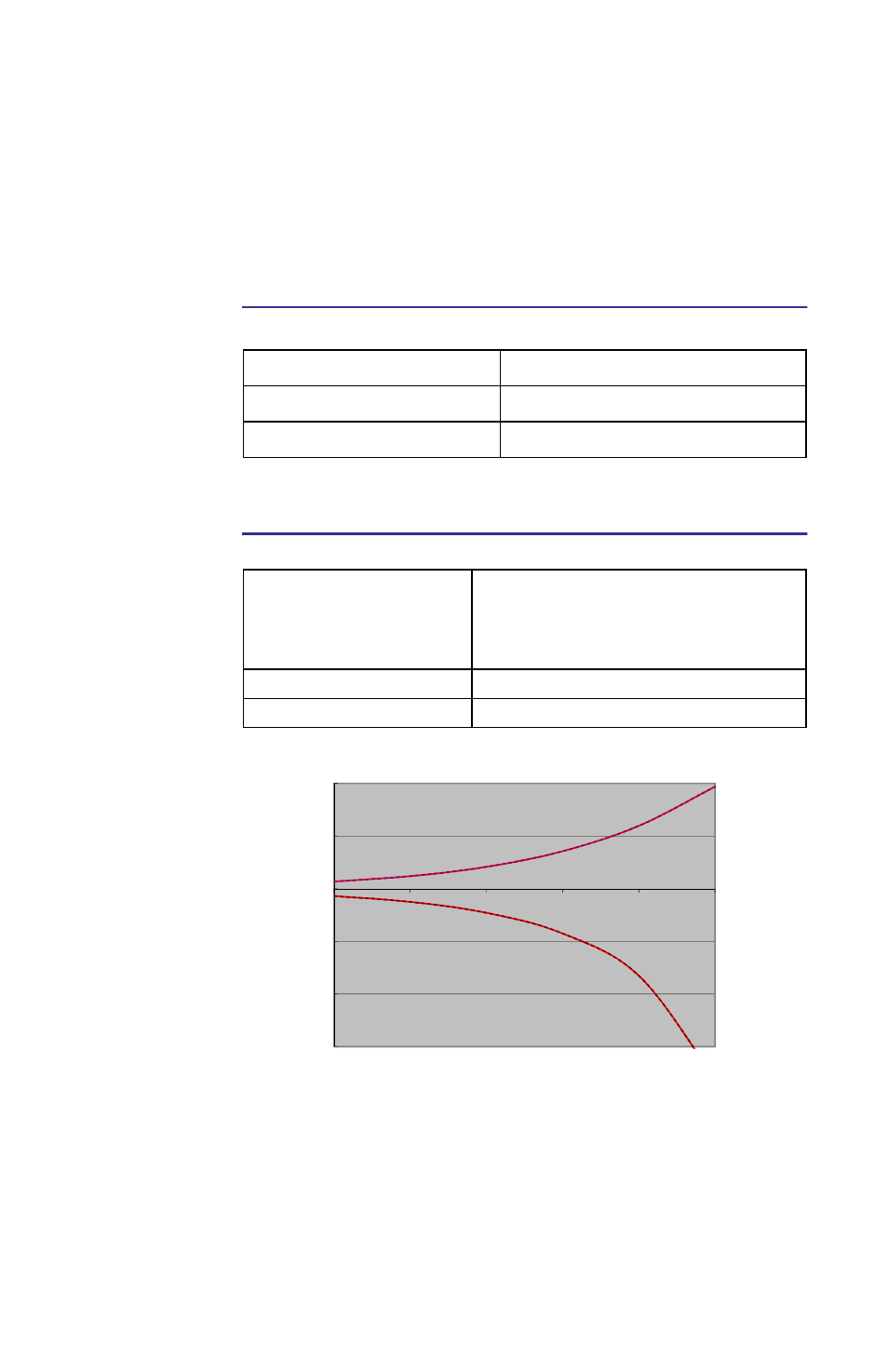

Match Measure Uncertainty
-6
-4
-2
0
2
4
-25
-20
-15
-10
-5
0
Un
certai
n
ty
(d
B)
Return Loss
