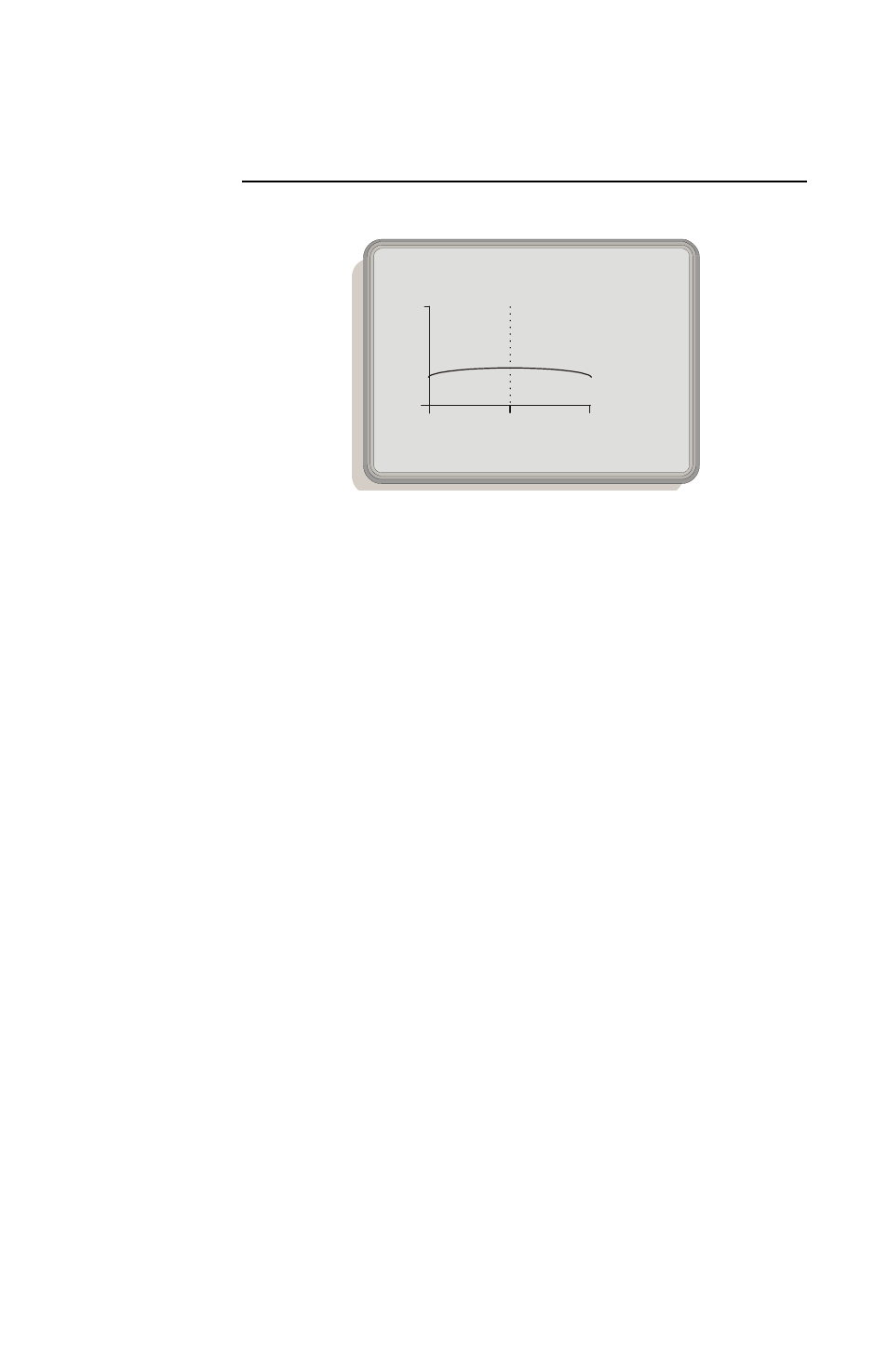

Figure 11 Save a Trace
The desired units, band, and scale should be selected.
You should be in the single hold mode and the trace
you want stored should be displayed. If continuous
sweep type is selected, the trace displayed when you
save will be stored.
1. Press the MENU key.
2. Press the SWEPT FREQ key.
3. Press the TRACE key.
4. Press the SAVE TRACE key.
5. Press a REG-n key that has EMPTY displayed.
6. Do one of the following:
z If a full register is selected, the new trace will
overwrite the old trace.
z If registers 1-4 are full, press the MORE SAVE
key to access 5-8 and again to access 9-12.
Note:
If needed, use the ESC key to back up.
Note:
HINT: It is a good idea to keep a
record of which traces are in which register as
they are identified by register number only.
Reg-1
Empty Reg-2
Empty Reg-3
Empty Reg-5
Empty More
Save
VSWR
2.0
1.0
2.00 MHz 136.00
1.35
69.00 MHz
