KUMO v3.1 www.aja.com 7
KUMO Features
The KUMO routers offer the following features for ease of use in any environment:
• Support for SD-SDI, HD-SDI, 3G-SDI, SMPTE 259M/292M/424M
• KUMO v3.0 firmware supports dual and quad mode routing, allowing users to group
together inputs and outputs for multiple cable applications like Dual Link, Quad HD,
Quad split monitors, etc.
• Automatic equalization and re-clocking
• Supports all ancillary data, including embedded audio
• Reference via BNC, passive loop, PAL/NTSC color black or HD tri-sync
• 10/100/1000 Ethernet LAN
• Embedded Linux OS with internal webserver for web browser control
• HTTP Control
• Optional pushbutton remote control panel via Ethernet
• 1RU form factor for 16x16, 2 RU for 32x32
• Redundant Power (optional), isolated power inputs
KUMO Connections

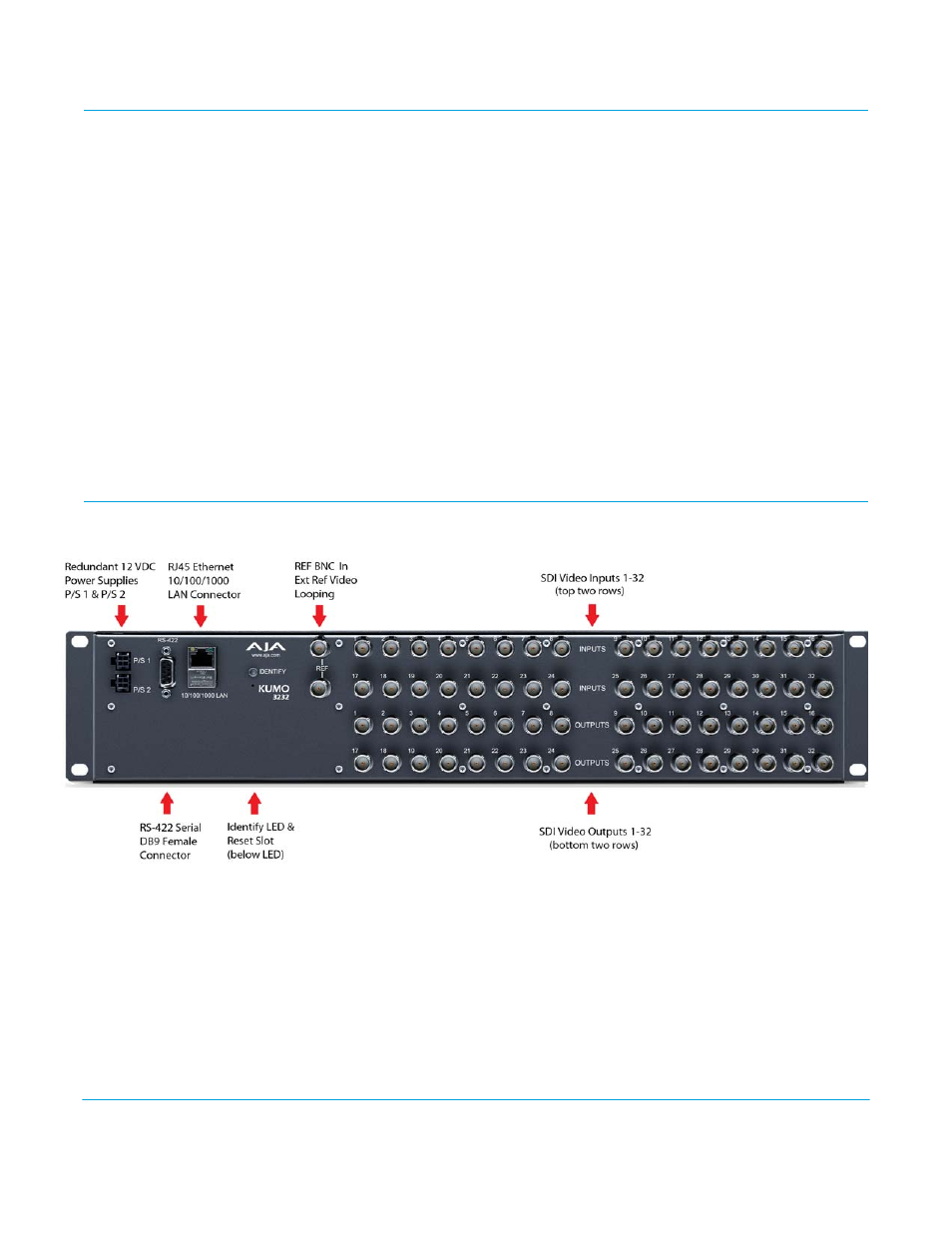

Figure 1. KUMO Rear Panel Connections (3232 shown, other models similar)
P/S 1 & P/S 2 Power
Connectors
Power to the KUMO unit is supplied by a power supply brick that accepts a 110-220VAC,
50/60Hz power input and supplies +12 VDC to KUMO via connector PS/1 or PS2. Only
one power supply is required and may be connected to either of the two power
connectors. An optional second power supply provides power redundancy to help
protect against outages. For additional protection, connect the two supplies to different
AC branch circuits so that KUMO will remain on even if there is a failure or open circuit
breaker on one branch.
