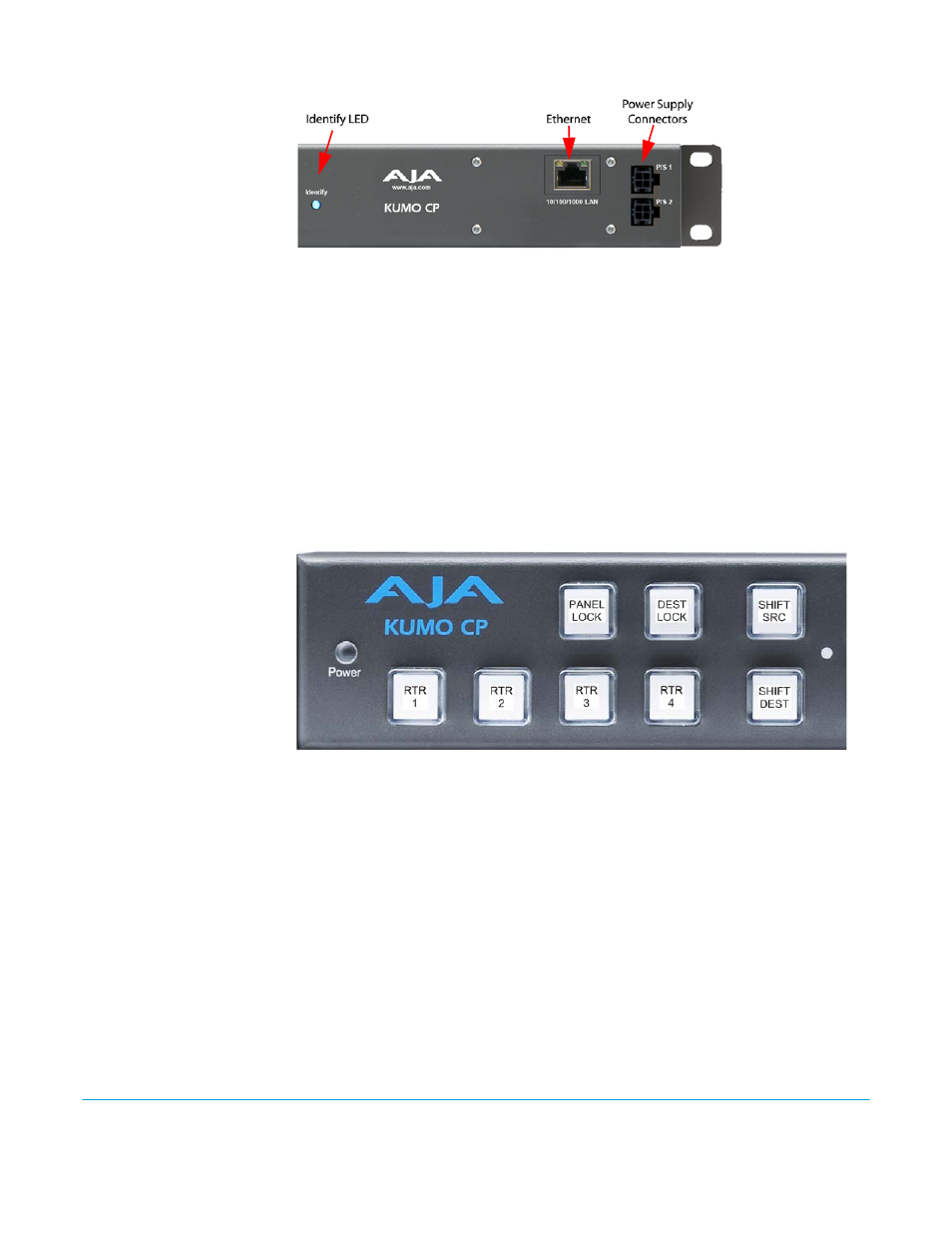

Figure 41. KUMO CP Connectors and Indicator
Button Key Caps Each control panel button has a removable lens cap that allows you to customize Source
and Destination names. AJA has provided a template for printing custom lens chips (we
suggest using 29 lb. vellum) for button designations. The template is available on your
software CD and at:
http://www.aja.com/support/kumo/lens_chip.zip
Panel Function
Buttons
Each KUMO Control Panel provides:
• Panel Lock – prevents Source or Destination changes from this panel.
• Destination Lock – prevents any Source change for a Destination.
• Router Delegation Buttons – (RTR 1–RTR 4) enable immediate control of the KUMO
assigned to the button.
Figure 42. KUMO CP Function Buttons
Panel Lock When you press the Panel Lock button, it lights red and all panel functions for this panel
are disabled. All other KUMO devices on the network will function normally.
Destination Lock Press the Destination (Dest) Lock button to prevent any changes to the KUMO
destination you are currently controlling (Dest button high tallied). The lock can be
removed from any other KUMO CP or browser interface on the network.
The DEST and DEST LOCK buttons turn red on all panels that are assigned to the KUMO
you are controlling. You can select other destinations and apply the Dest Lock function to
each. All locks will tally red. To remove the lock, select the destination and press Dest
Lock again.
NOTE: Locked destinations are reported on the KUMO router’s browser Home page with a lock icon.
