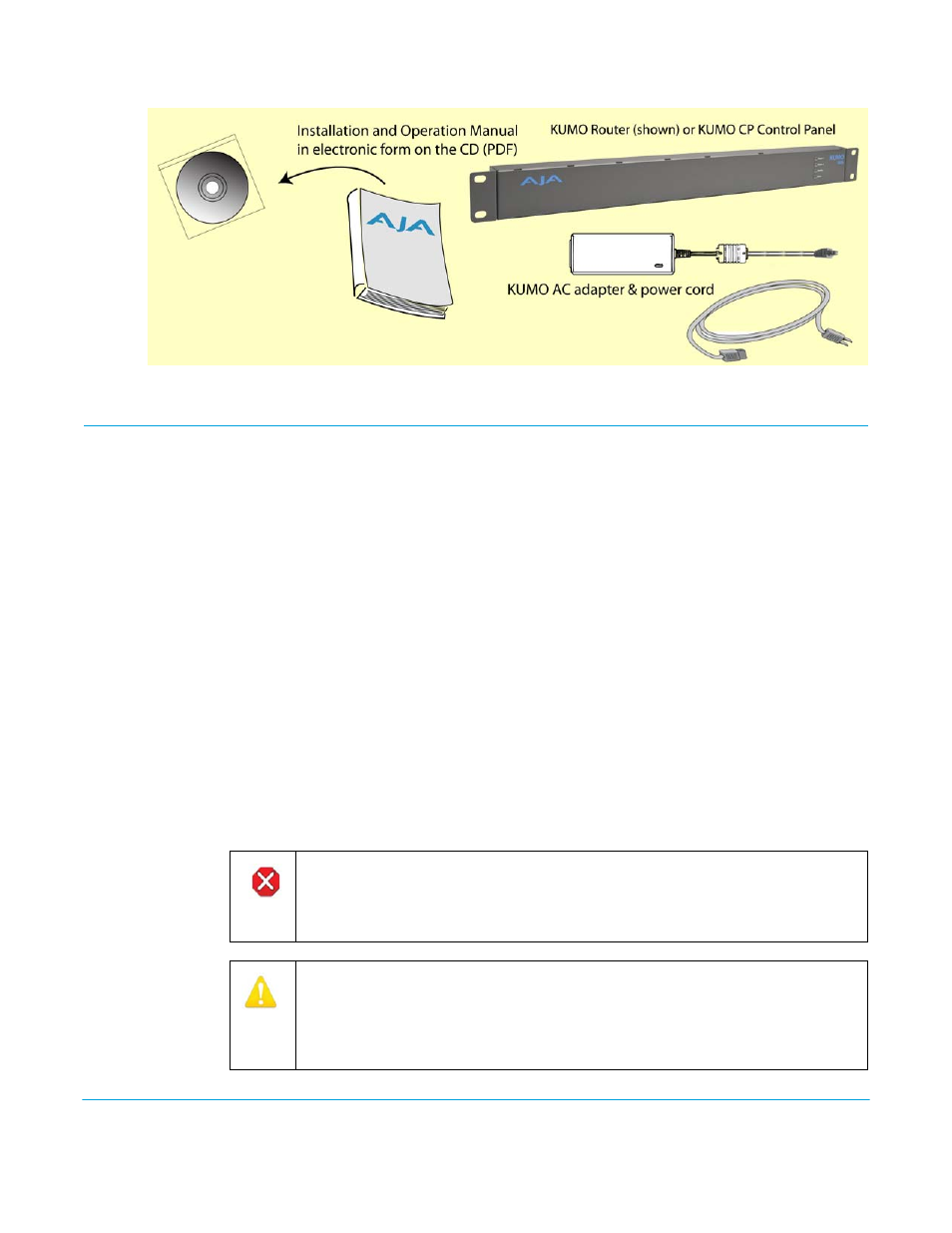

Figure 5. KUMO Shipping Box Contents
KUMO Chassis Installation
Where to Place
KUMO
Plan adequate space for cable routing from the back of the router chassis. Ensure that SDI
video cable connectors will not be stressed and that cables are not bent or crimped in
the process.
When rack mounting or stacking multiple KUMO chassis, ensure there is adequate
airspace for cooling around the KUMO units. Note the location of cooling vents on all
equipment next to the KUMO and ensure none are obstructed.
Physical
Requirements
When planning equipment locations and mounting methods, take into account the size
of the router chassis:
Router Dimensions: • 1 RU Height – 1.75” (4.45 cm); Depth – 1.5” (3.81 cm); Width – 19” (48.3 cm)
• 2 RU Height – 3.47” (8.814 cm); Depth – 1.543” (3.92 cm): Width – 19” (48.3 cm)
Power
Requirements
• Input Voltage: 110-220VAC, 50/60Hz to 12 VDC brick converter supply (fully redundant
with optional second brick supply; AJA recommends AJA p/n 103147-00)
• Power Consumption: KUMO 1604 = 9 Watts; KUMO 1616 = 20 Watts; KUMO 3232 = 26.4
Watts
Caution!
KUMO is designed to take advantage of its chassis to aid in cooling. It is common
and expected for the densely populated chassis to have a warm front panel in
normal, active operating conditions.
Warning!
Do not open the chassis. There are no user-serviceable parts inside. Opening the
chassis will void the warranty unless performed by an AJA service center or
licensed facility. Remove the brick power supply AC line cord(s) from mains power
when moving the unit.
