KUMO v3.1 www.aja.com 31

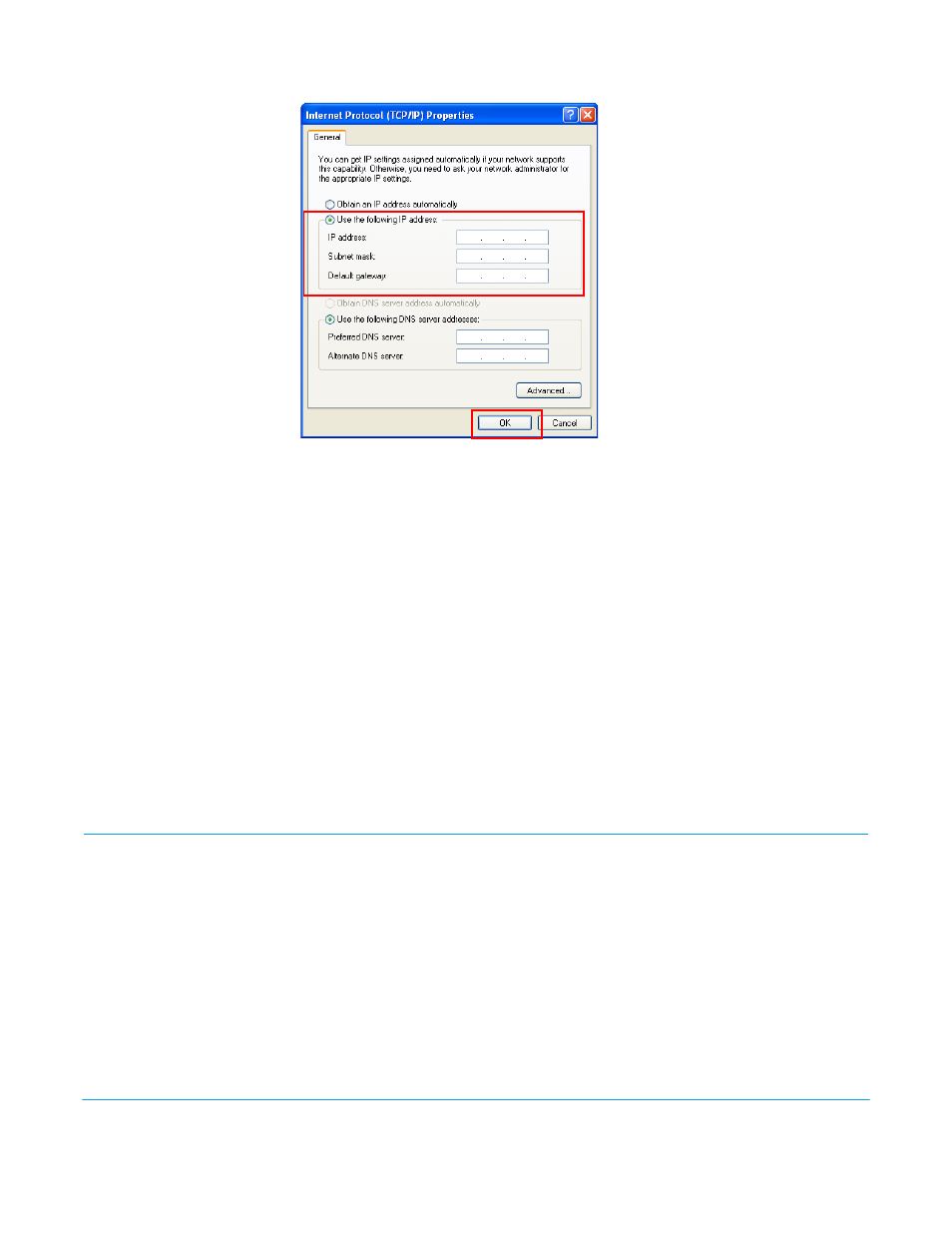

Figure 24. Windows TCP/IP Properties Screen
E. Finally, click the “Use the following IP address:” radio button and enter the IP
Address and Subnet Mask below:
• IP Address: 192.168.101.X (do not use .1 in the last octet).
• Subnet Mask: 255.255.255.0
F. Click the OK button to store the changes.
NOTE: The previous step is temporary. You will later need to restore the original settings on your
computer.
3. Connect the Windows XP PC to KUMO's RJ-45 port (either direct or through your
LAN)
4. Point your web browser to 192.168.101.1 as the web address. These are the KUMO
temporary static IP addresses.
5. Once connected to KUMO's web interface, reconfigure KUMO's network parameters
as desired.
6. Restore your computer to its normal network settings using this procedure and the IP
addresses you recorded earlier.
Larger System Control Configurations
This section describes a KUMO system network configuration that is part of a large LAN/
WAN – TCP-IP networking (DHCP or Static IP), and any number or combination of KUMO
routers, KUMO control panels, and web browser computer control.
If the KUMO will be attached to a WAN, talk to your IT administrator and obtain the
details on how he/she wishes you to configure the KUMO (DHCP or static IP). Manually
connecting to a network, you will need to configure the KUMO IP CONFIG, IP ADDR, IP
MASK, and IP GATEWAY parameters according to the information obtained from your IT
administrator.
