The vinyl outer surface of the mat is completely sealed to resist the ingress of liquids. It will resist
bleaches, acids, salts and most industrial chemicals. Refer to section 5.3.1 for detailed guidance on
chemical resistance.
The system operates at 24V DC with restricted fault current. Damage to the mats or interconnecting
wiring will not therefore generate any electrical shock hazard in normal circumstances.

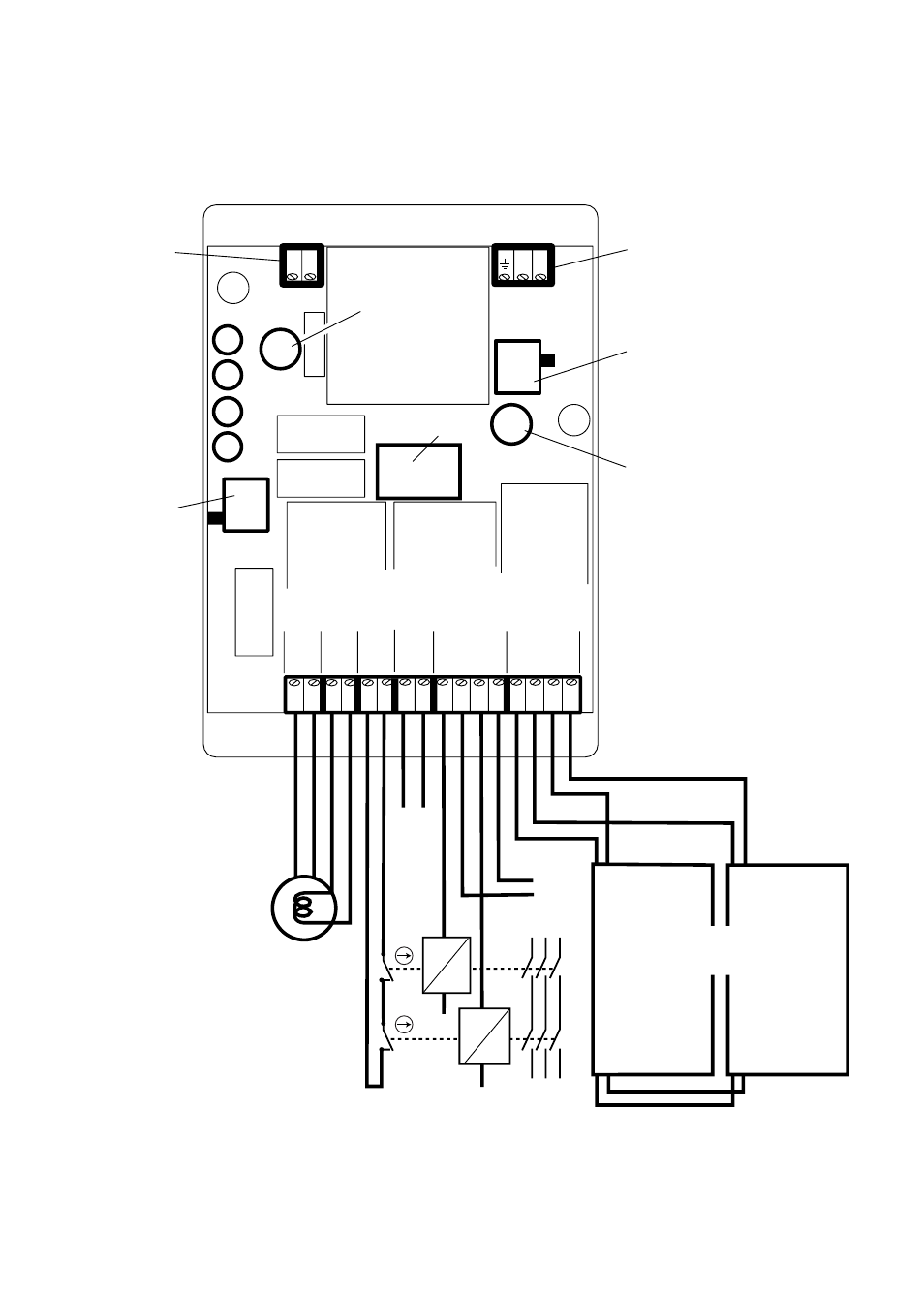

Fig. 2 Basic system and connections (shown with two contactors). 440F-C4000P and 440F-C4000S.
Note: position of reset button is different to above on 440F-C4000S.
110/230VAC
SUPPLY
TERMINAL 24 V AC/DC
SUPPLY
TERMINAL
MANUAL RESET/
AUTO RESET
SWITCH
SECONDARY
FUSE
500mA
PRIMARY
FUSE
500mA
110 / 230VAC
SELECTOR
SWITCH
LID MOUNTED
RESET BUTTON
CONTROL UNIT
3 4 1 2 23 24 13 14 31 32 MC MC N/O PB R IND
–ve N L +ve
AM
230
110
LED INDICATORS
MAT CONNECTION TERMINALS AUXILIARY TERMINALS SAFETY OUTPUT TERMINALS CONTACTOR MONITORING TERMINALS REMOTE RESET TERMINALS REMOTE RESET INDICATION TERMINALS
MACHINE ENABLED
GREEN
AUTO RESET MODE
GREEN
MANUAL RESET MODE
GREEN
POWER
GREEN
SENSOR
MATS
Contactor
control power
Volt free
Aux.
contacts
for
indication
if
required
REMOTE RESET
PUSH BUTTON
If required
L1 L2 L3
K1
K2
