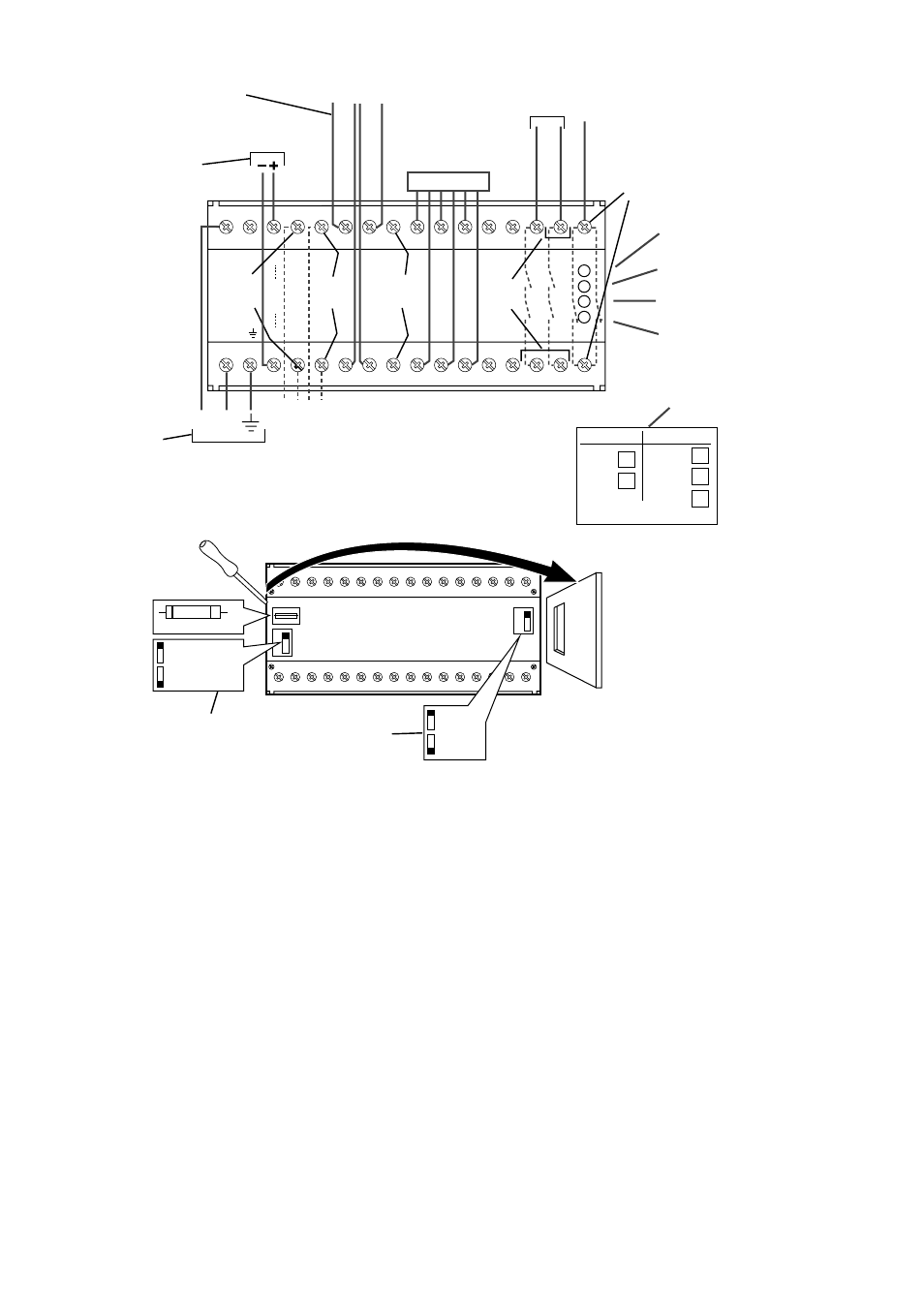

Fig. 27 440F-C4000D (Follow steps 1-12 for correct installation)
1. When using a 110V or 230VAC supply switch the voltage selector switch to 110V or 230V as
appropriate. NOTE: The system is despatched from the factory with the selector set at 230V AC.
2. If a 110V or 230V AC supply is being used it should be wired, including a protective earth, to the
terminals shown. Check setting on voltage selector switch, see step 1. Do not make any
connections to the terminal shown at step 3. The size of the protective earth wire should be at
least equal to that of the supply wire.
3. If a 24VAC/DC supply is being used it should be connected to the terminals shown, ensuring correct
polarity. Do not make any connections to the terminals shown at step 2. With 24VAC the earthed pole of
the power supply should be connected to the –ve terminal.
4. MAT CONNECTIONS: Connect the leads from the mat to the terminals shown.
1=WHITE, 2=WHITE, 3=BLACK, 4=BLACK.
440F-C28013 - eight quick connect adaptors labelled 1 to 8 are located on the base of the unit and
provide connection to the mats.
31
A1
• + RESET IND 1 2 MC Y1 Y3 Y5
• •
13 23 31
L N
110/230V AC
SUPPLY
A2 -- RESET IND 3 4 MC Y2 Y4 Y6
• •
14 24 32
110/230VAC selectable
24V AC/DC
24V AC/DC
SUPPLY
CONTACTOR
CONTROL
POWER
AUXILIARY
OPTIONAL
REMOTE
INDICATION UNIT
POWER
GREEN
AUTO RESET MODE
GREEN
MANUAL RESET MODE
GREEN
MACHINE ENABLED
GREEN
BLACK BLACK WHITE WHITE
Y1 Y2 Y3 Y4Y5Y6
Fuse replacement
UP 110V SUPPLY
DOWN 230V SUPPLY
500 mAT
AUTOMATIC
MANUAL
1
2
3
4
5
11
6 7 8 9
10
Mode set Voltage set
MANUAL
AUTO
Date
110v
230v
24v
tick boxes
