Sensor mat marking
The following Standards are referred to in this manual:
EN 292 - 1&2: Safety of machinery - Basic concepts - General principles for design - Parts 1 and 2
EN 294: Safety of machinery - Safety distances to prevent danger zones being reached by upper limbs.
EN 811: Safety of machinery - Safety distances to prevent danger zones being reached by lower limbs.
EN 953: Safety of machinery - General requirements for the construction of guards.
EN 954-1: Safety of machinery - Safety related parts of control systems - Part 1: General principles for design.
EN 999:(Draft Standard) Safety of machinery - Positioning of protective equipment in respect of approach speeds of
parts of the human body.
EN 1050: Safety of machinery - Risk assessment.
EN 1760-1: Safety of machinery - Pressure sensitive protective devices - Part 1: Pressure sensing mats and floors.
EN 60204-1: Safety of machinery - Electrical equipment of machines - Part 1: Specification for general requirements.
Information on the availability of these standards can be obtained from BSI Sales Tel: +44 (0) 20 8996 9001
Fax: +44 (0) 20 8996 7001.
MATGUARD PRESSURE SENSITIVE SAFETY MAT SYSTEM
CONTROL UNIT
Supply Voltage 230/110VAC (see selector) 50-60Hz or 24VAC/DC
IP65 Hoseproof, Dust tight
Safety Contacts 250V 2A N/O Aux Contacts 250V 2A N/C
MatGuard Mat Voltage 24VDC
EN 954-1 Category 3, System Response Time 35ms
See user manual for further information
AUTO
RESET MODE
MACHINE
ENABLED
POWER
MANUAL
RESET MODE
PRESS TO RESET
1 2 3 4 5 6 7 8
MAT STATUS
ISOLATE ALL POWER
SUPPLIES BEFORE OPENING
MADE IN THE UK.
MatGuard
Type No: 440F-C28013 R
MADE IN U.S.A.
REFER TO USER MANUAL
Model No.
EN 1760-1
R
4 M 20 IND CONT EQ
MatGuard SENSOR MAT
MATGUARD PRESSURE SENSITIVE SAFETY MAT SYSTEM
CONTROL UNIT
Supply Voltage 230/110VAC (see selector) 50-60Hz or 24VAC/DC
IP65 Hoseproof, Dust tight
Safety Contacts 250V 2A N/O Aux Contacts 250V 2A N/C
MatGuard Mat Voltage 24VDC
EN 954-1 Category 3, System Response Time 35ms
See user manual for further information
MANUAL
RESET MODE
MACHINE
ENABLED
POWER
AUTO
RESET MODE
PRESS
TO RESET
ISOLATE ALL POWER
SUPPLIES BEFORE OPENING
MADE IN THE UK
83HA TYPE 1 A300
IND CONT EQ
MatGuard
Type No: 440F-C4000P
R
3
A1 • + RESET IND 1 2 MC Y1 Y3 Y5 • • 13 23 31
A2 -- RESET IND 3 4 MC Y2 Y4 Y6
• •
14 24 32
110/230VAC selectable
24V AC/DC
440F-C4000D
EN 1760-1, EN 954-1 Cat 3
Response time: 35mS
MADE IN ENGLAND
POWER
AUTO RESET MODE
MANUAL RESET MODE
MACHINE ENABLED
R
83HA A300
IND CONT EQ
MatGuard
Isolate
before
opening

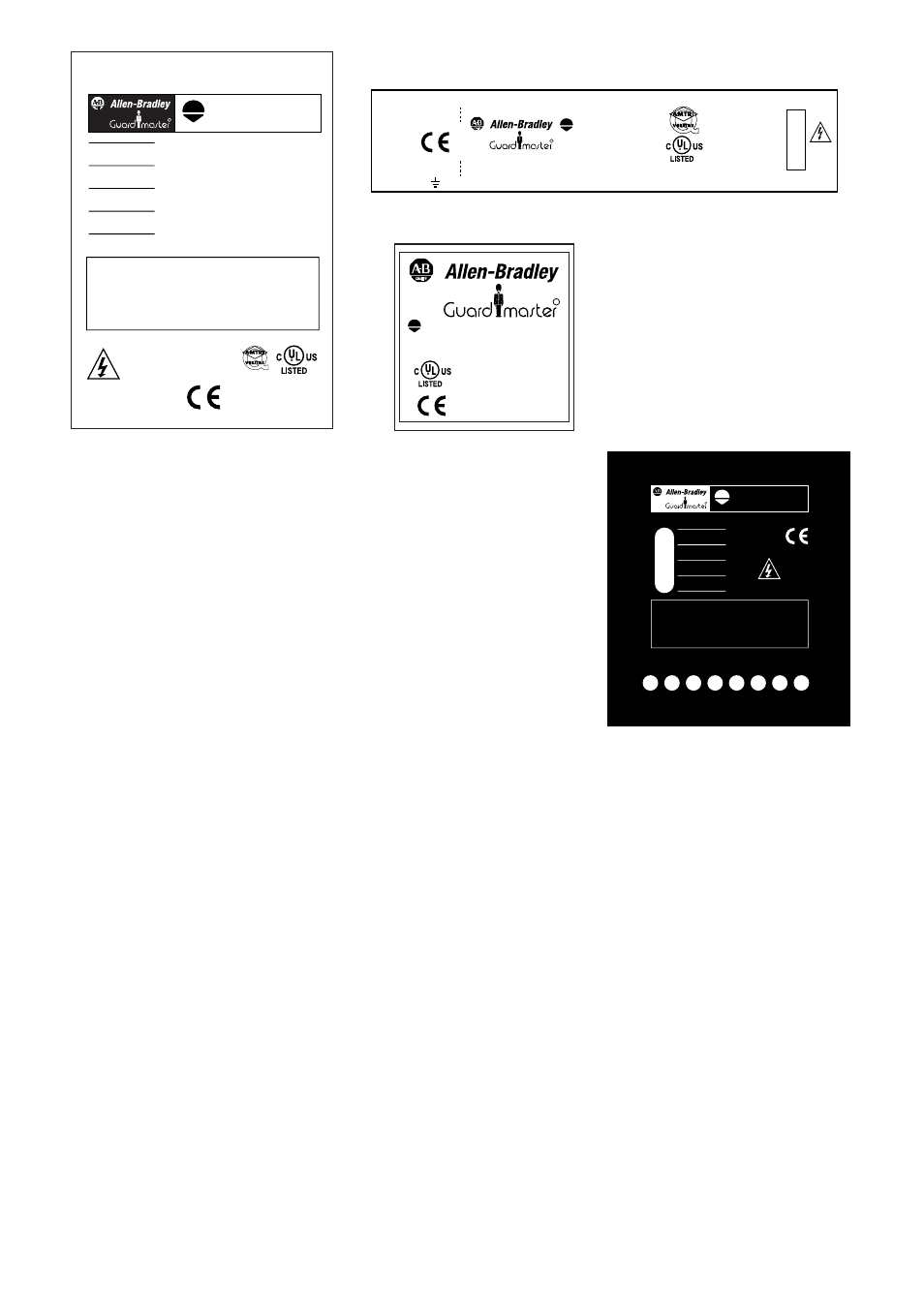

Control unit marking MGCD1
Control unit marking
440F-C4000P & 440F-C4000S
Note: position of reset button is
different to above on
440F-C4000S
Control unit markings
440F-C28013
