38 Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012
Chapter 2 Create a PanelView Plus Application

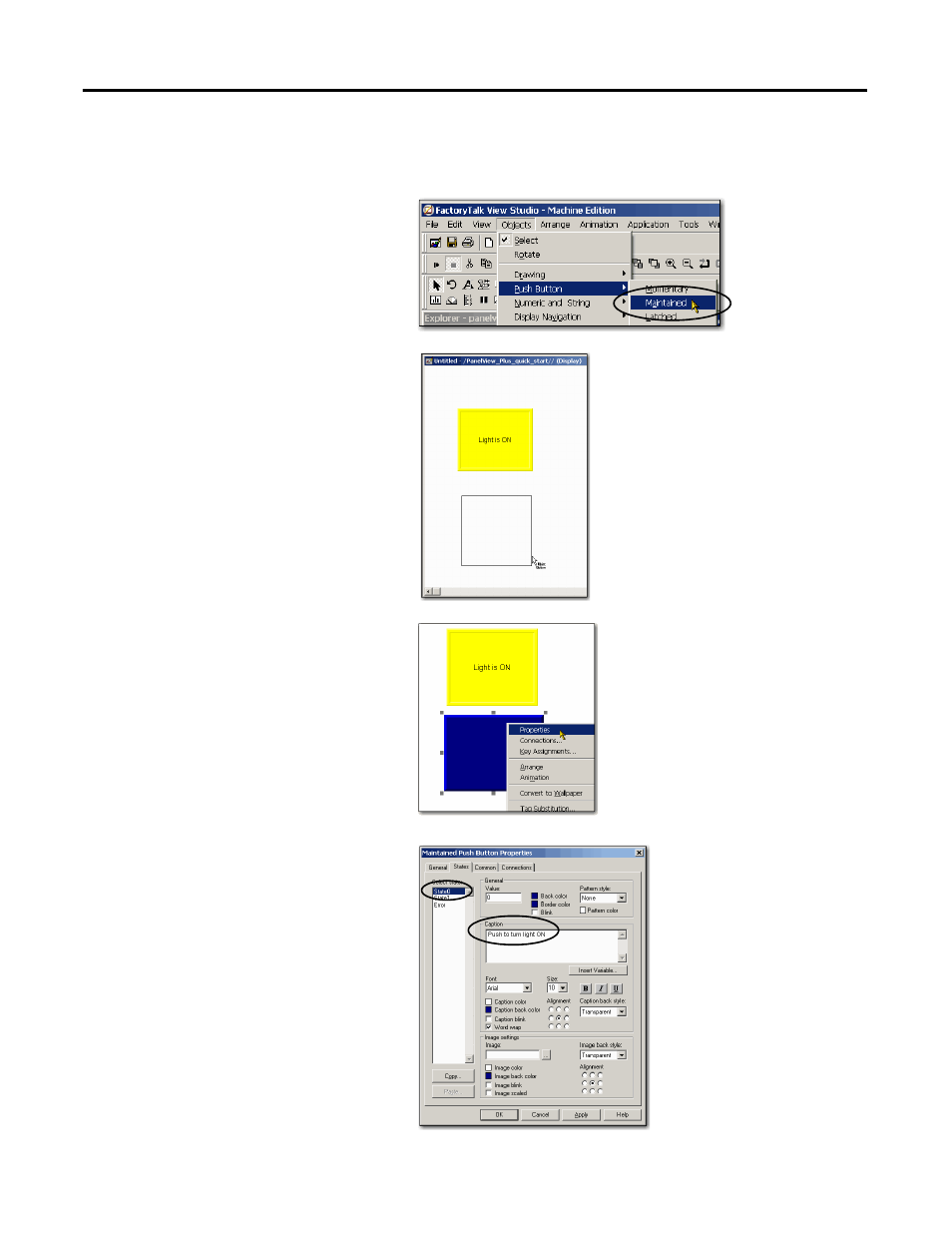

Create a Push Button
1. From the Objects menu, select
Push Button Maintained.
2. Click and drag to create the
push button beneath the
indicator.
3. Right-click the push button
you just created and select
Properties.
4. On the States tab, verify that
State0 is selected.
5. In the Caption, type Push
to turn light ON.
