16 Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012

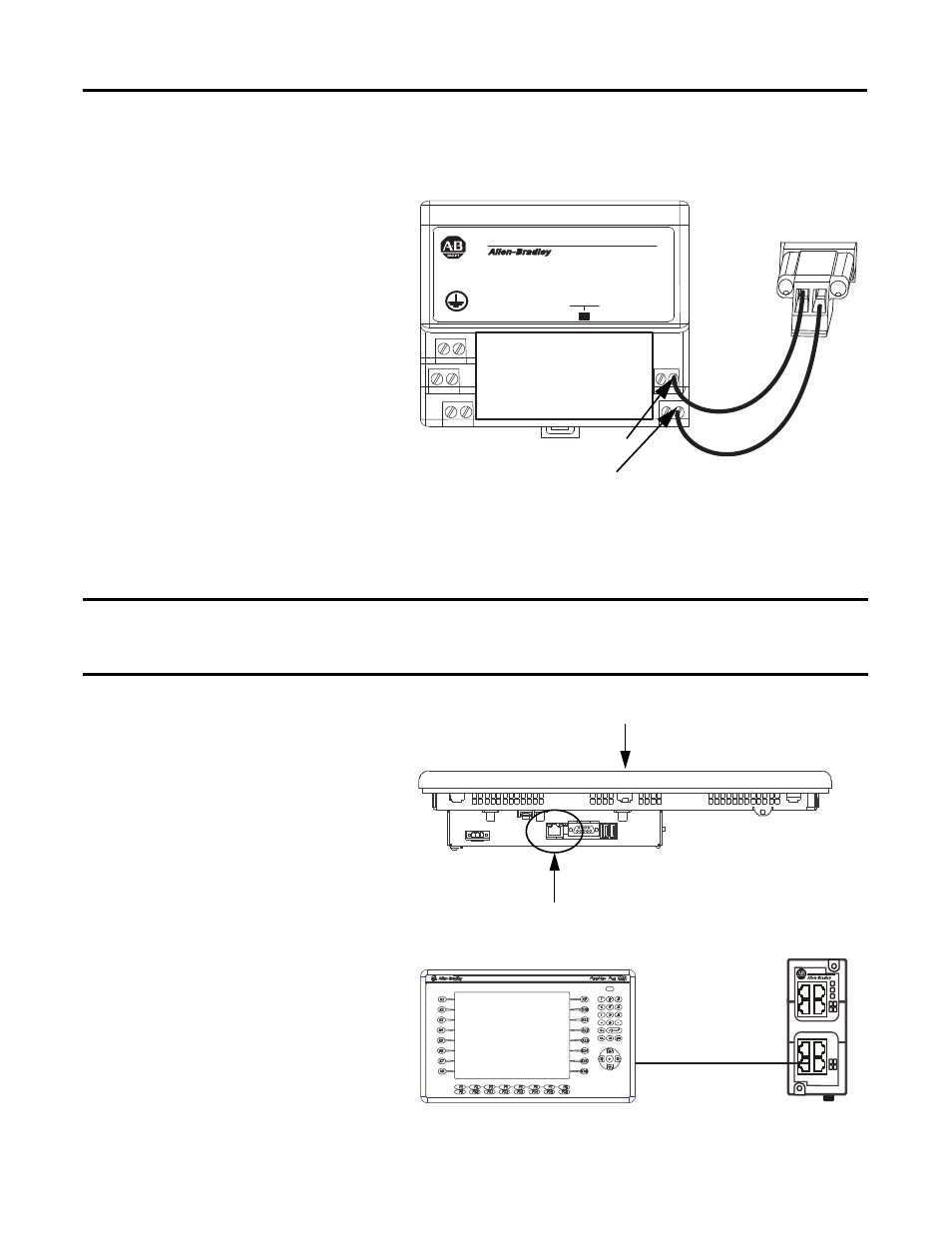

Chapter 1 Prepare the PanelView Plus Terminal Hardware
2. Gently pull the terminal block off of the PanelView Plus terminal.
3. Connect the 12/24V DC
common and 12/24V DC
power wires from the power
supply to the terminal block,
-
(common) and + (power).
4. Connect the terminal block to
the PanelView Plus terminal.
Connect the PanelView Plus Terminal to the EtherNet/IP Network
1. Connect one end of the
1585J-M8PBJM-2 RJ45-to-
RJ45 patchcord Ethernet cable
to the EtherNet/IP port on the
PanelView Plus terminal.
2. Connect the other end of the
cable to an Ethernet switch.
IMPORTANT If you completed the tasks described in the Logix5000 controller quick start for the controller you are using with this
quick start, you should already have an Ethernet switch installed on the EtherNet/IP network. If not, install a switch, for
example, a Stratix 6000 managed switch, on the EtherNet/IP network before proceeding.
+ –
24V DC
POWER SUPPLY
2711P-RSACDIN
24V
COM
POWER
PanelView Plus
Common
Power
Front Display on Terminal
EtherNet/IP Port
1 2
3 4
5 6
7 8
