Rockwell Automation Logix5000 Control Systems: Connect PanelView Plus Terminals over EtherNet/IP Quick Start User Manual
Page 27
Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012
27
Create a PanelView Plus Application Chapter 2

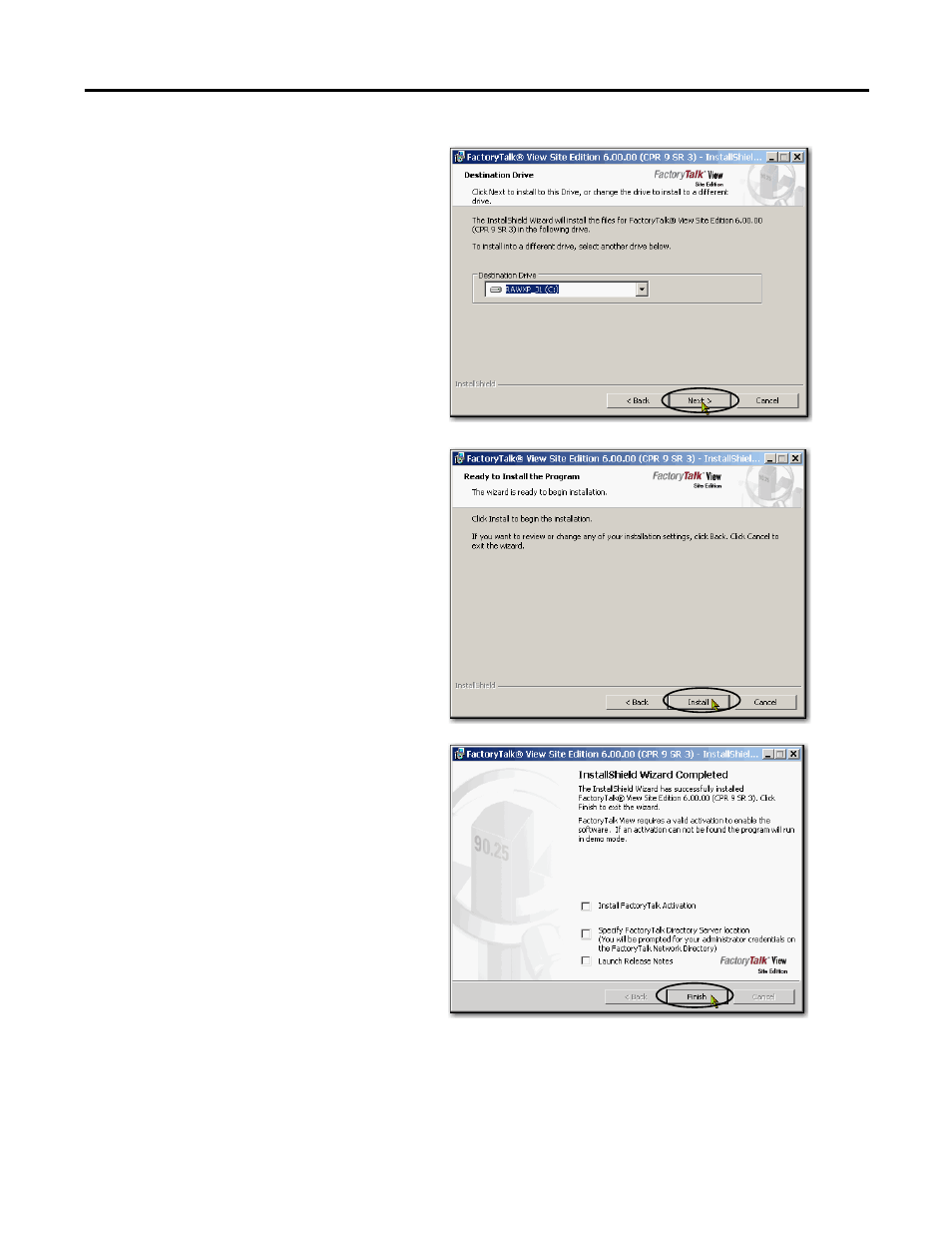

11.
Select the Destination Drive and
click Next.
We recommend you use the default
Destination Drive setting.
12.
Click Install.
13.
When the InstallShield Wizard
Completed dialog box appears,
click Finish.
You have the option to Install
FactoryTalk Activation Server.
Because the activation server is
required to use other Rockwell
Automation software and
RSLogix 5000 software is already
installed and working on your
computure, the steps to install the
FactoryTalk Activation Server are
not shown here.
