Page 34: Indicator
34
Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012
Chapter 2 Create a PanelView Plus Application

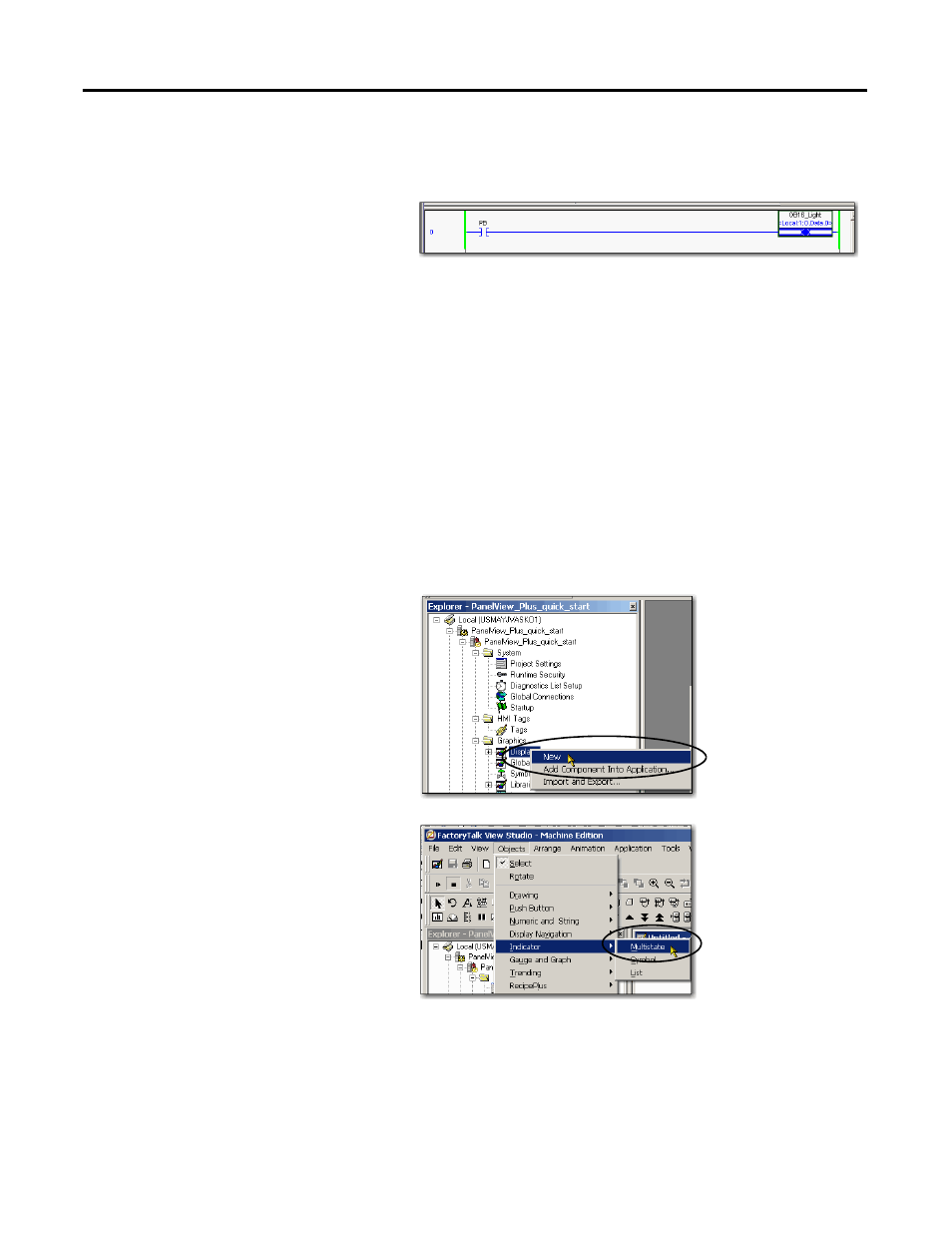

Create the OB16_Light Indicator
1.
Verify that you have created an
RSLogix 5000 project that
includes an output module and
a ladder logic rung with
Examine On and Output Energize elements similar to the one shown.
This example, the alias tag named OB16_Light is an alias for point Local:1:O:Data.0. You
might choose to use a different point on the module. If so, verify that the alias tag is set to
the correct module point.
2.
Go online with your controller and download the RSLogix 5000 project.
3.
Open the Explorer section of FactoryTalk View Machine Edition software as shown in the
following graphic.
4.
Under Graphics, right-click
Displays and choose New.
5.
Choose Objects>Indicator
Multistate.
