4.9. Configuring a Valve Profile

Each valve associated with a project must have a profile. A valve’s profile contains information the
Valve Manager uses to initiate tests, apply pass/fail criteria to a test, and to display the test results. To
configure a valve’s profile, first select the valve in the Project Tree view. Selecting “Valve | Edit Valve
Profile” from the main menu, or clicking on the “Edit Profile” button on the toolbar will bring up the
Valve Profile wizard.

4.9.1. Profile Strings

The “Profile Strings” dialog box allows you to associate a textual description with the feed-back input
states for a valve. The enumerated states correspond directly to the “_VPS” variable values for a
particular valve. Unused states may be left blank. Once the state names have been entered, click the
“Next” button to continue.

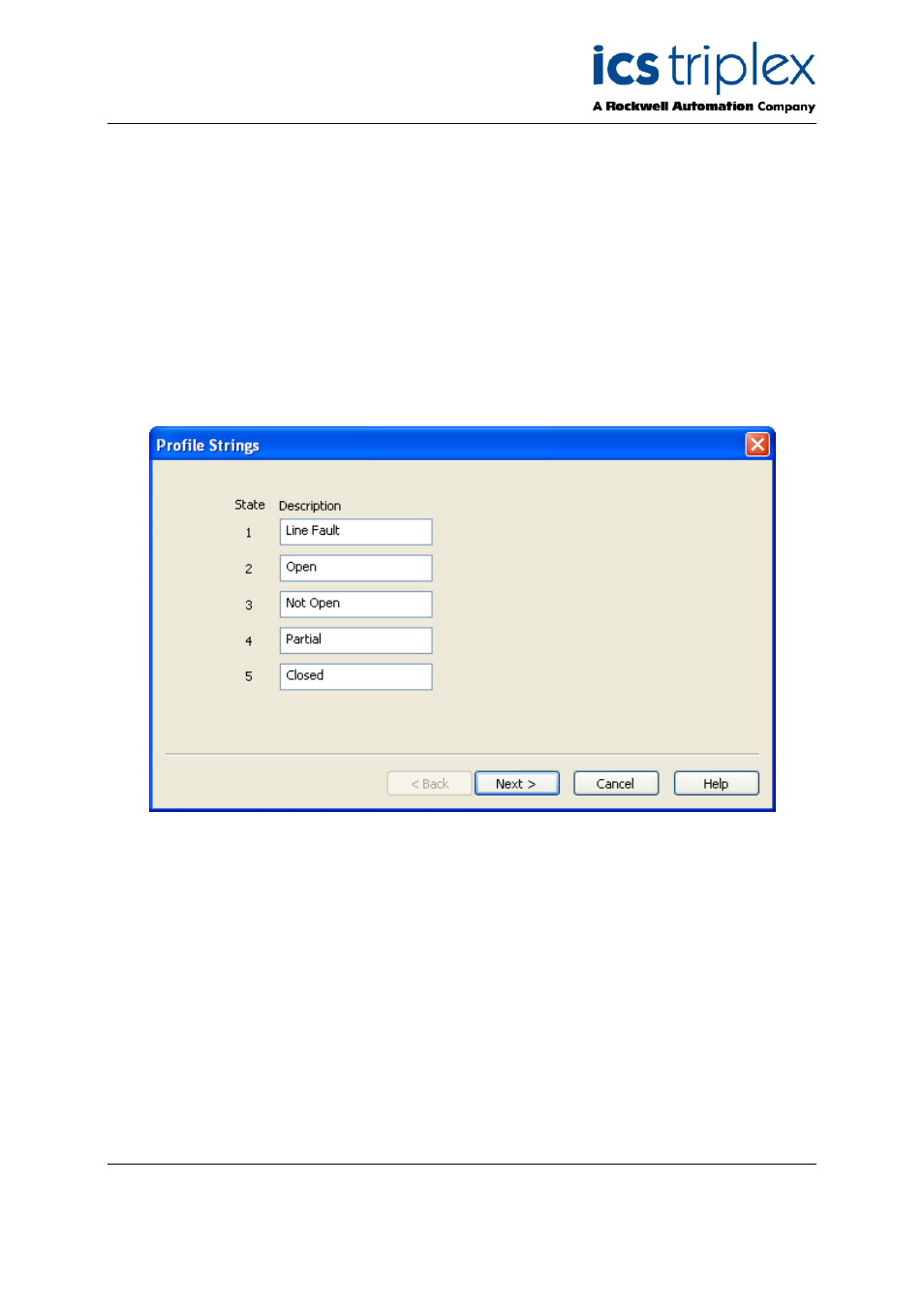

Figure 36 Profile Strings
