Trusted
TM
Valve Manager T8031
Issue 2 Oct 05
PD-T8031
32
4.4.9. Saving the Valve Manager Configuration
Once the tables have been created, the Valve Manager will prompt you to save the current
configuration information. The Valve Manager is capable of working with several projects at the same
time. Information about these projects as well as other Valve manager settings is stored in this
configuration. Enter a name for the configuration file, select a location, then click on “Save”.

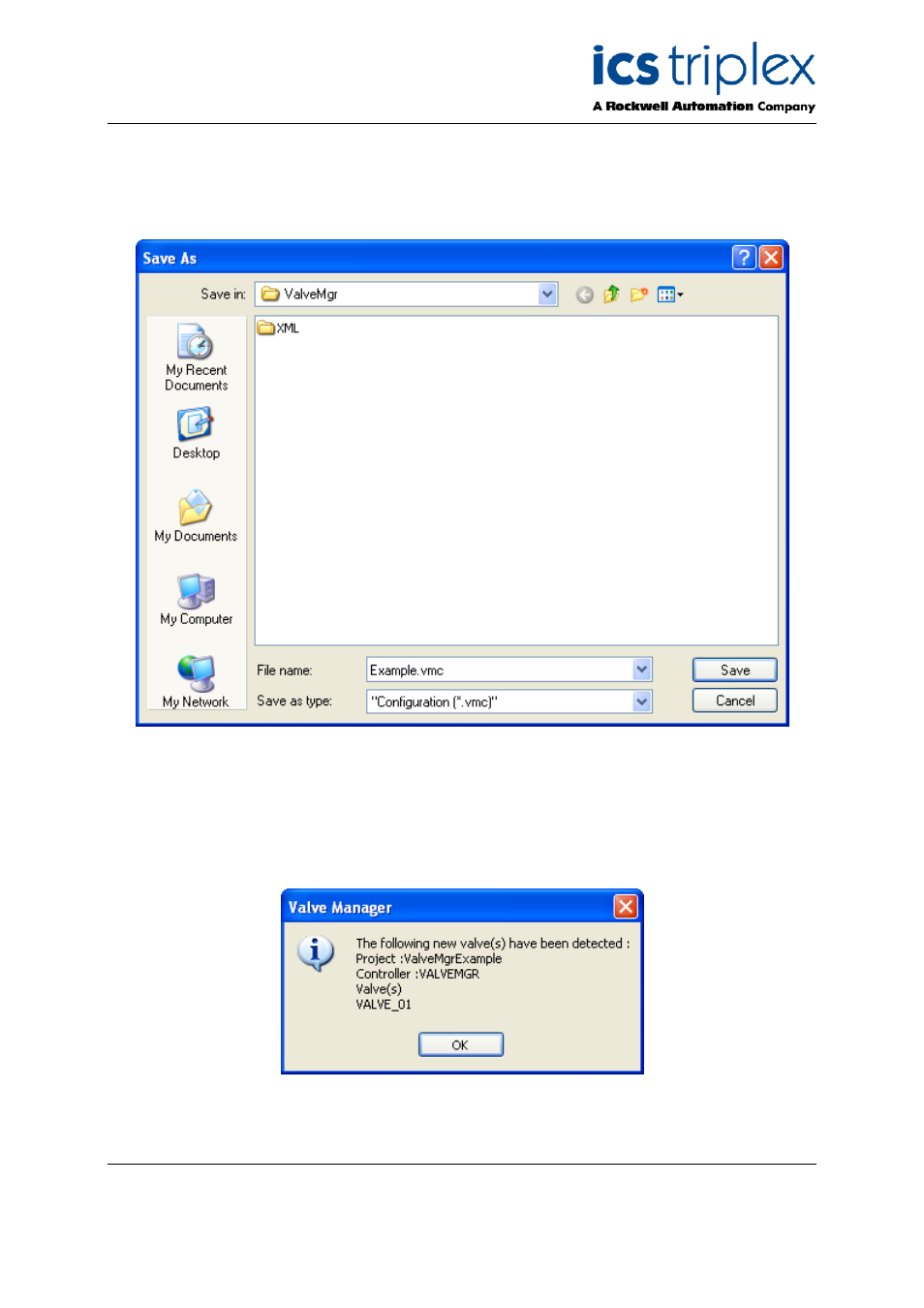

Figure 28 Saving the Configuration
4.4.10. Valve Discovery
After the Valve Manager configuration has been saved, the Valve Manager will then connect to the
project’s OPC controller in order to discover the Valves associated with the project. This operation is
automatic, and occurs each time the project is opened.
Figure 29 Valve Detection
