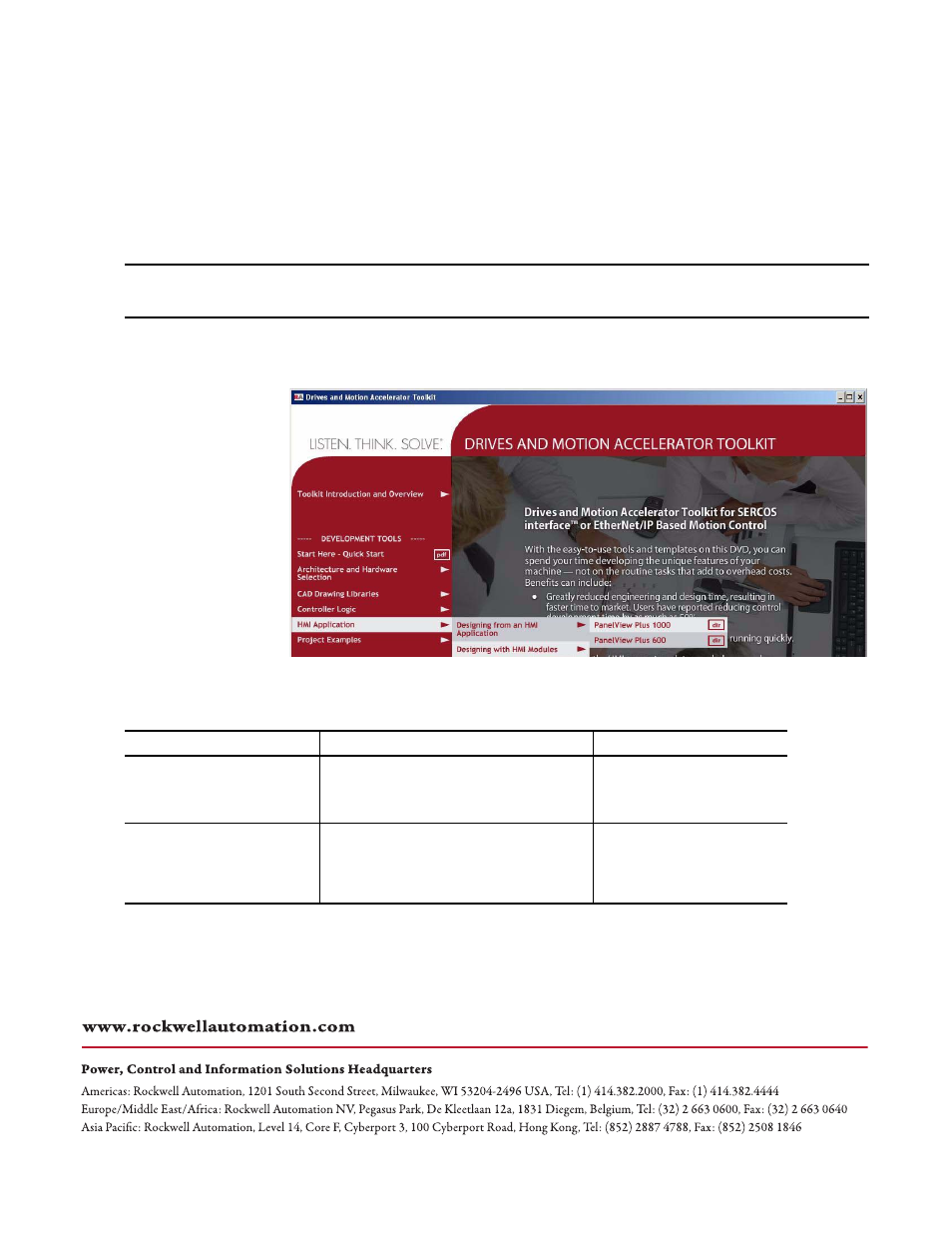

Ch. 5 Example - Restore and Open a Preconfigured HMI Application
Follow these steps to restore the preconfigured HMI file and open in FactoryTalk View Studio software.
1.
Navigate to the HMI application files within the toolkit’s file folder and open either the
PanelView Plus 1000 or PanelView Plus 600 folder, based on the terminal size and faceplate requirements
of your application.
Your personal computer’s harddrive path is C:\Program Files\RA_Simplification\DMAT\B-Files\
5-HMI\ME\HMI Applications.
For the Widg-O-matic machine application example, the PanelView Plus 1000 folder was selected.
PanelView Plus Terminal and Faceplates Compatibility
IMPORTANT
The Equipment Status faceplate is compatible with PanelView Plus 700 or larger terminals. To take full advantage of all
faceplates, choose the PanelView Plus 1000 folder.
Application Folder
PanelView Plus Terminals Supported
Faceplates Displays
PVP600
PanelView Plus 400
PanelView Plus 600
Machine Startup Display
Machine State Diagram Display
All Device Displays
Alarm History Display
PVP1000
PanelView Plus 700
PanelView Plus 1000
PanelView Plus 1250
(1)
PanelView Plus 1500
(1)
(1) The PanelView Plus 1000 Machine, Alarm History, and Equipment Status faceplate displays are sized at 640x480 (VGA) resolution. If full-sized displays are desired, open
display, select all (objects), group, and resize group. Some text editing for new display size may also be required.
Machine Startup Display
Machine State Diagram Display
All Device Displays
Alarm History Display
Equipment Status Display
