Rockwell Automation Publication IASIMP-QS022B-EN-P - April 2012
4 Drives and Motion Accelerator Toolkit Quick Start Summary

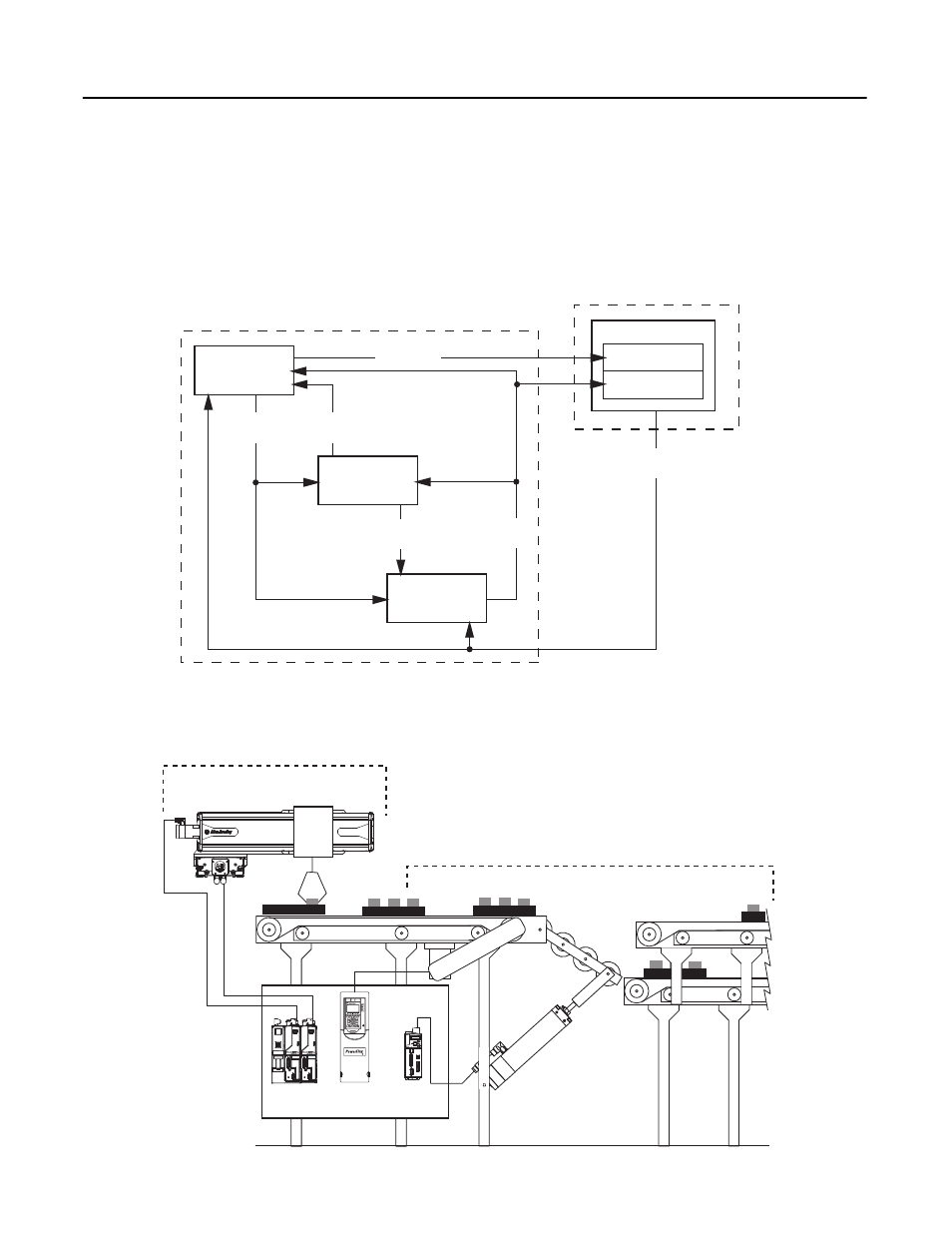

Modularity Example - Machine/Application/Device Module Relationship
The machine module monitors the current state of the overall machine and based on the state and/or requests
from the HMI terminal, broadcasts out commands to both the application and device modules. The individual
modules perform a predefined task based on the command. Some of the commands may be ignored depending
on the module type.
Widg-O-matic Machine Application Example
Machine
Module
Application
Module
Device
Module
PanelView Plus Terminal
Machine Faceplate
Controller Logic
HMI Application
Application
Status
Machine
Commands
Device
Commands
Device
Status
Operator
Commands
Machine Status
Device Faceplate
755
0 0 3 0 0
X-Y Gantry
Diverter
Conveyor
Kinetix 6500
Drives
Kinetix 300
Drive
PowerFlex 753
Drive
Ser
vo Mot
or D
riven
Elec
tric C
ylinder
Induction Motor
X-Servo
Y-Servo
Assembly
Packaging
To assist you in device configuration, the Widg-O-matic machine application example is
referenced in the device configuration steps. Two servo drives are configured for the X-Y
gantry assembly section, one PowerFlex drive is configured for the conveyor, and one
Kinetix® 300 drive is configured for the packaging diverter.
