Ch. 3 example - edit system communication drawings – Rockwell Automation Drives and Motion Accelerator Toolkit Quick Start Summary User Manual
Page 6
Rockwell Automation Publication IASIMP-QS022B-EN-P - April 2012
6 Drives and Motion Accelerator Toolkit Quick Start Summary
Ch. 3 Example - Edit System Communication Drawings
1. Open the communication drawing for your application.
For the Widg-O-matic machine application example, the 060_120_Ethernet_Communication.dwg file is
opened.
2. Delete network devices not used in the project.
For the Widg-O-matic machine application example, one of the Kinetix 300 drives and associated cable is
deleted.

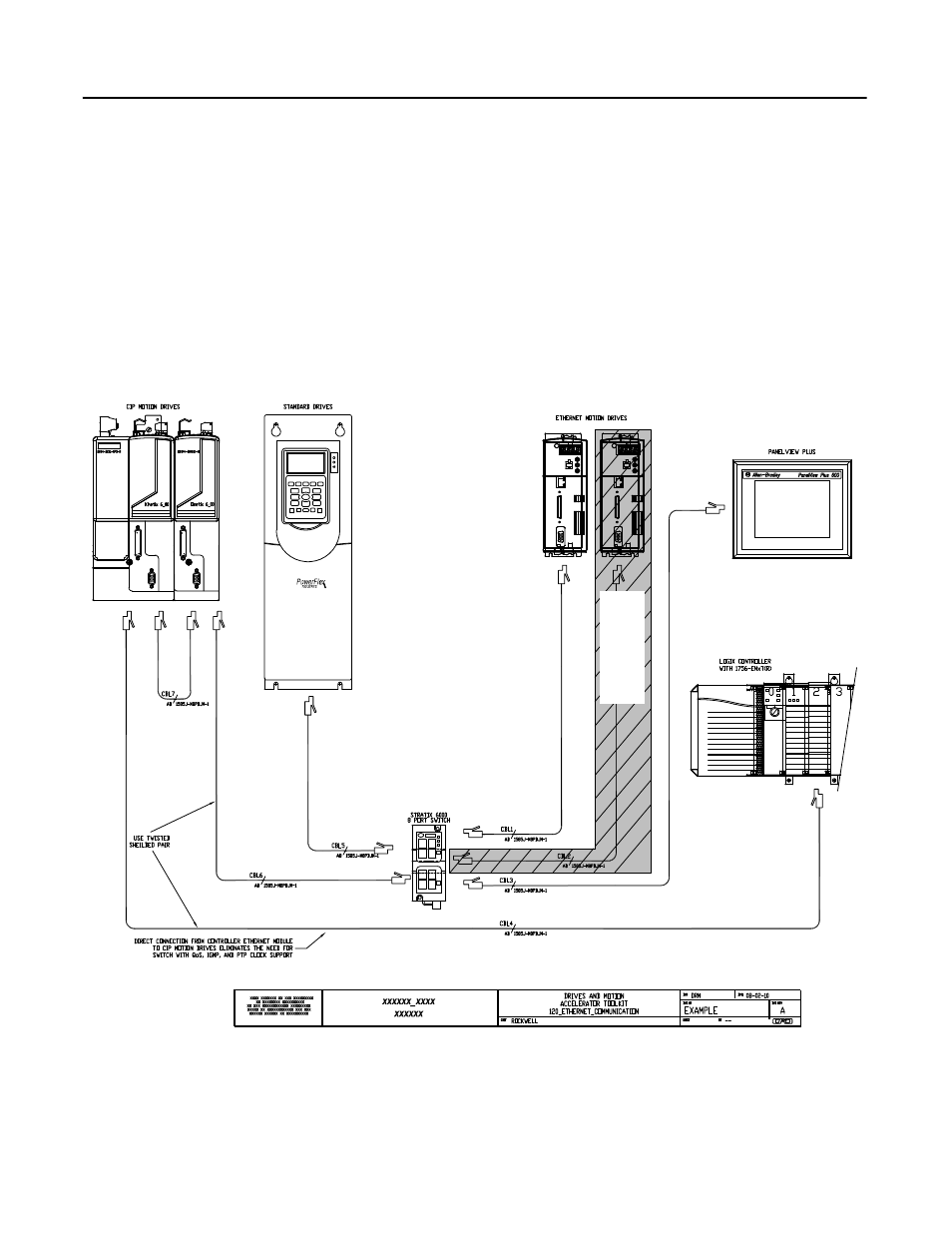

Ethernet Communication
Select and
delete
this drive
and cable.
