Module pinout connections, Table 2 field connector pinout, Trusted – Rockwell Automation T8449 Trusted TMR 24V dc Valve Monitor Module - 40 Channel User Manual

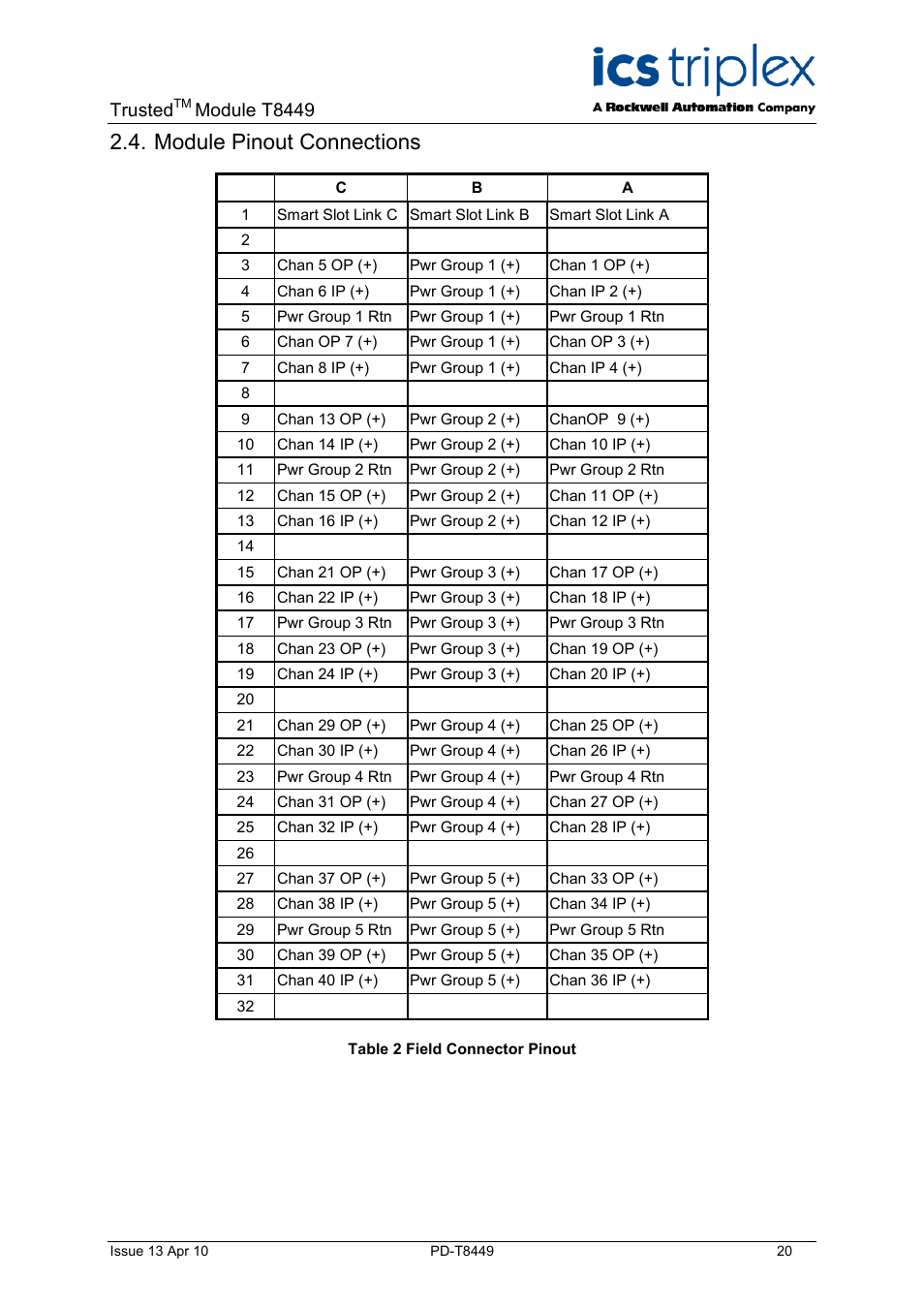

Page 20: Module t8449
