Valve testing, Positional feedback, Normal operation – Rockwell Automation T8449 Trusted TMR 24V dc Valve Monitor Module - 40 Channel User Manual

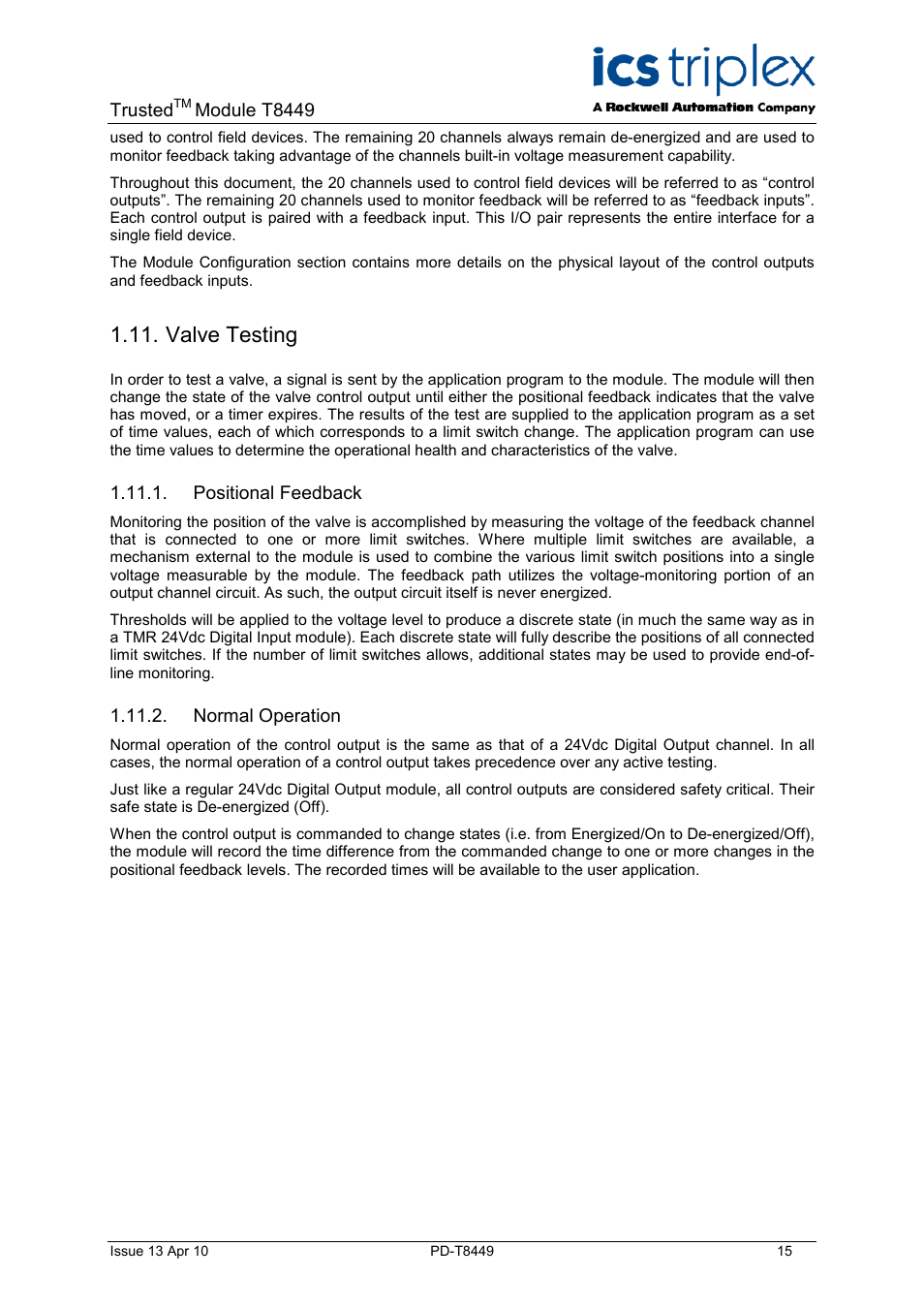

Page 15
