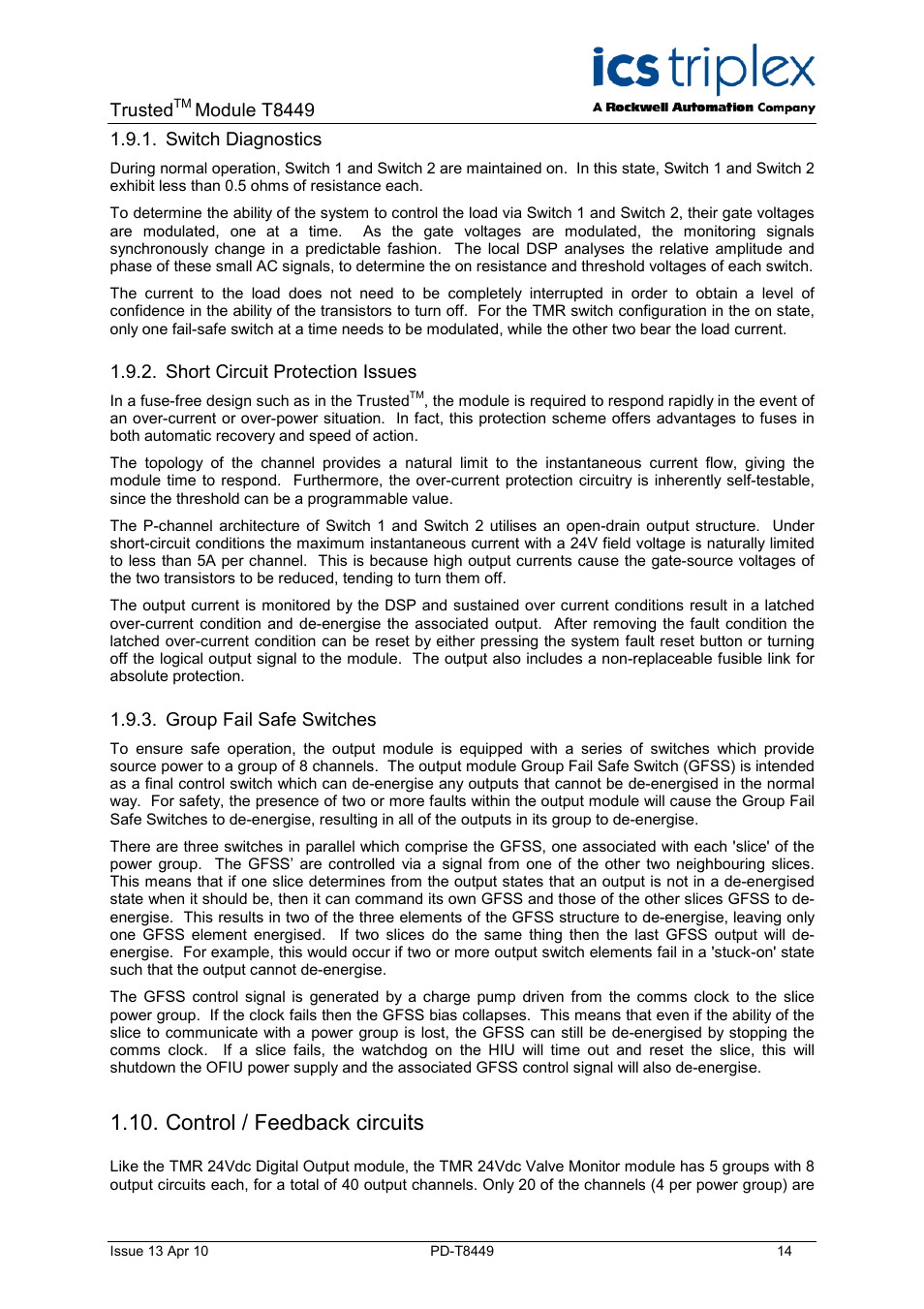

Switch diagnostics, Short circuit protection issues, Group fail safe switches – Rockwell Automation T8449 Trusted TMR 24V dc Valve Monitor Module - 40 Channel User Manual
Page 14: Control / feedback circuits
