18 Publication IASIMP-QS037A-EN-P - May 2013
Chapter 1
2. Select the interlock from the list, and then use the Add Interlock
button to add it to the Current Interlocks or use the Remove Interlock
button to remove it from the Current Interlocks.
For example: If Pump Seal Fail is in an alarm state, press Remove
Interlock to allow the pump to continue running in that alarm state.

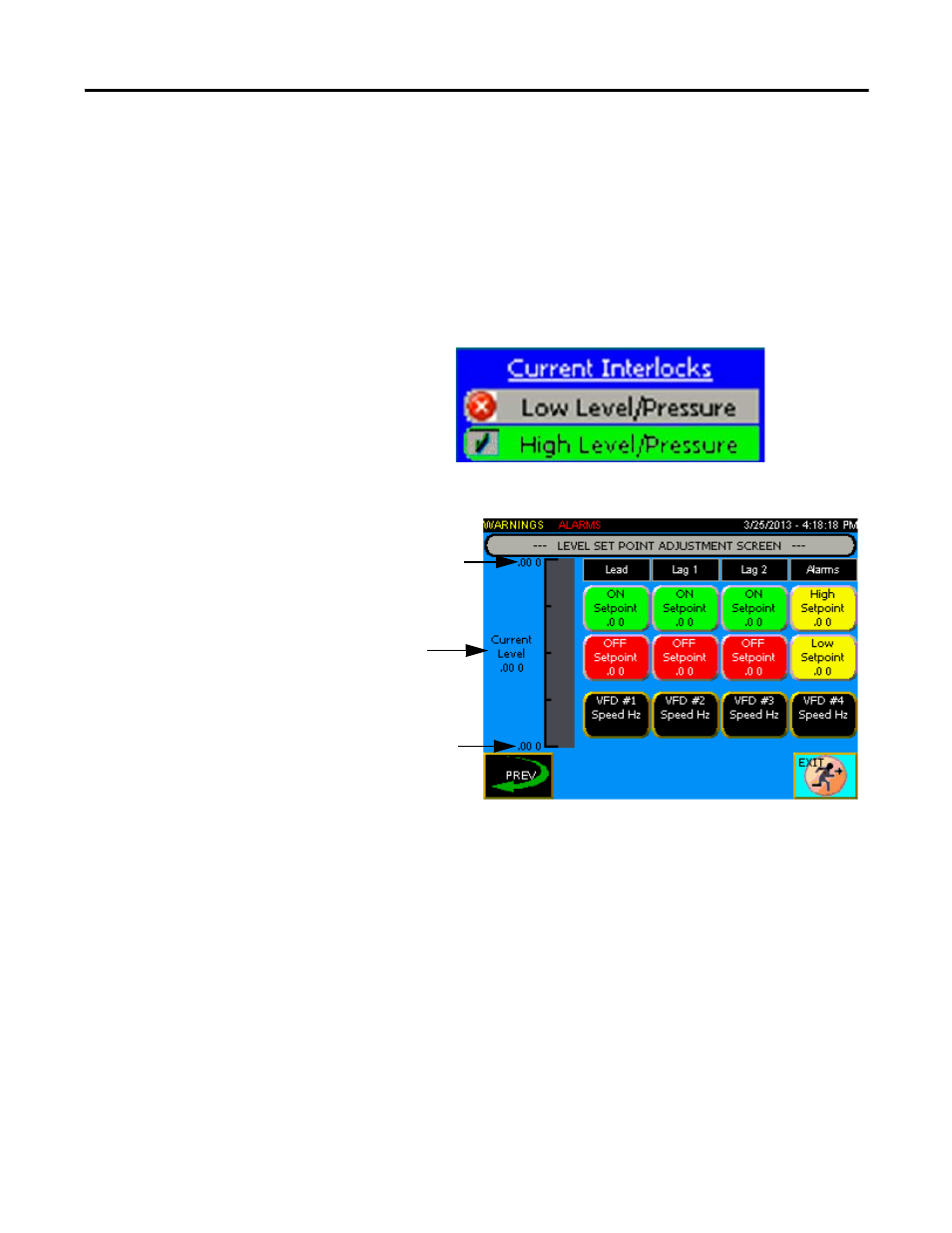

A white X in a red circle indicates an interlock that has been removed,
while a blue check mark in a gray box indicates an interlock that has
been added.
Level Setpoints
From the Level Setpoints screen you can:
– Press On Setpoint to enter the level at which you want the selected
pump to turn on.
– Press Off Setpoint to enter the level at which you want the selected
pump to turn off.
– Press VFD # Speed Hz to enter the desired VFD speed (in Hz)
when running in Level mode. The VFD # Speed Hz button is not
visible if Starters were selected on the Motor Control Setup screen.
– Press the High and Low Alarm Setpoints to enter the threshold
values for triggering the related alarms.
20mA Scaled value
4mA Scaled value
Current level
scaled value
