Diagnostic leds – Rockwell Automation DC3N DC Drive User Guide, 1/4-2HP-115/230 VAC User Manual
Page 44
36
Troubleshooting
Diagnostic LEDs
The DC3N chassis drive is equipped with two diagnostic LEDs.
Refer to Figure 23 for LED location.
Power (PWR):
Lights whenever the AC line voltage is applied to the drive.
Current Limit (CURR LIMIT or CL):
Lights whenever the drive reaches current limit.

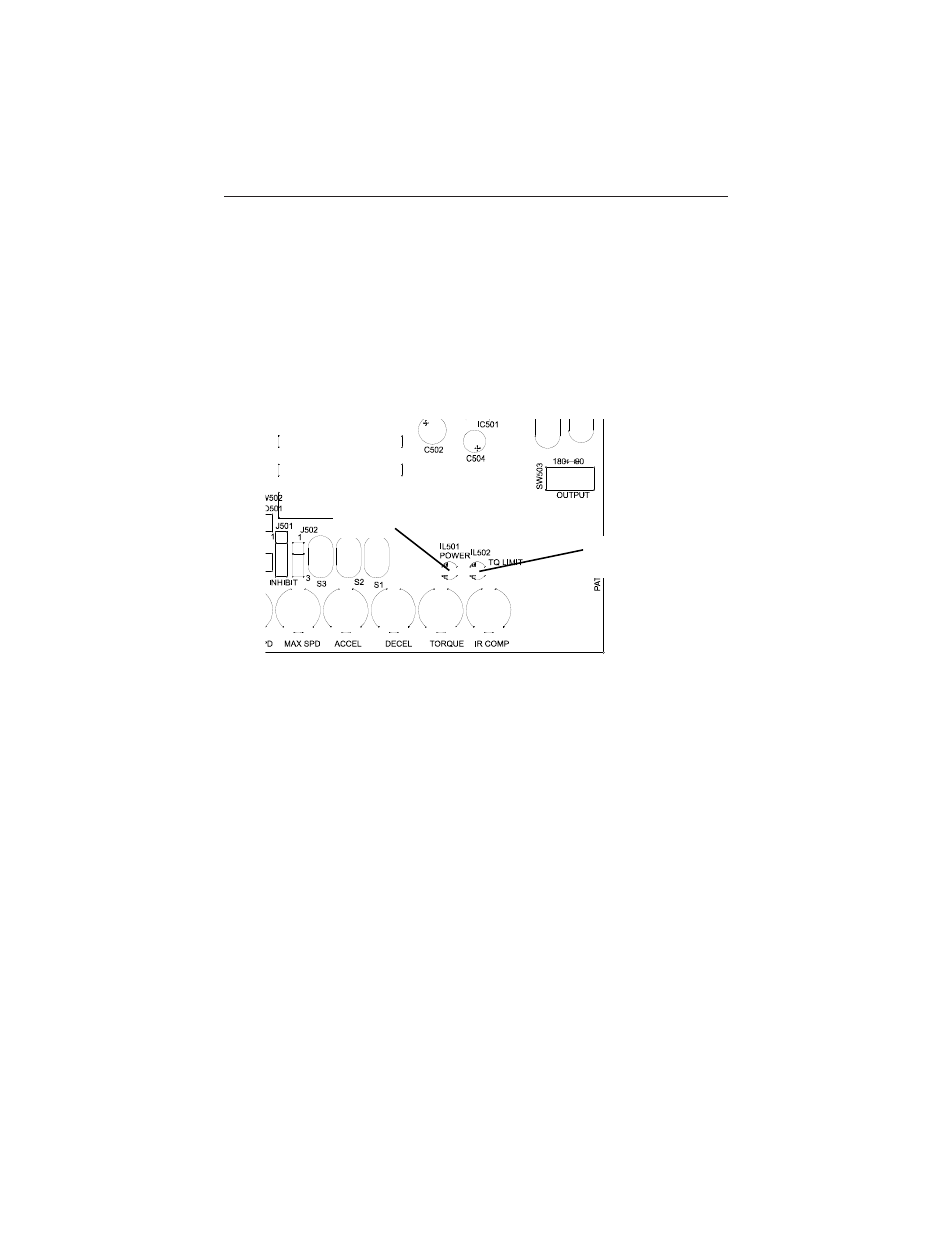

Figure 23. Diagnostic LED Locations
POWER
TQ
LIMIT
