Operation
Power supply header block
The power supply header block can supply an unregulated +9 VDC (5 mA) to
external devices when the motor and the power supply of the drive are fully
loaded. More current is available with less motor loading. The power supply can
supply an unregulated +15V (10 mA) signal in typical applications.

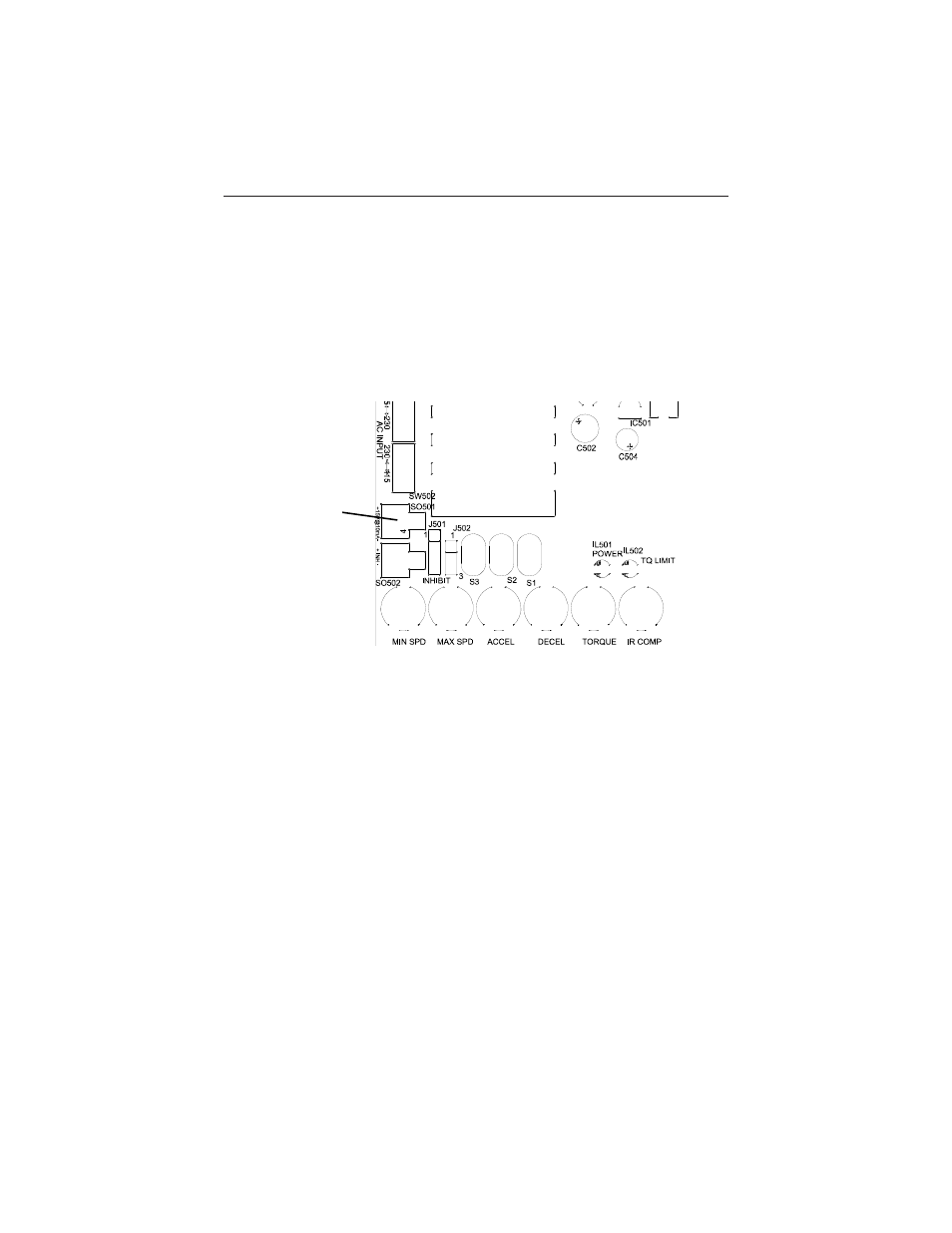

Figure 14. Power Supply Header Block
POWER
SUPPLY
HEADER
BLOCK
