Page 17

Rockwell Automation Publication IASIMP-QS031A-EN-P - February 2012
17
Prepare the PowerFlex 70 Drive Hardware Chapter 1

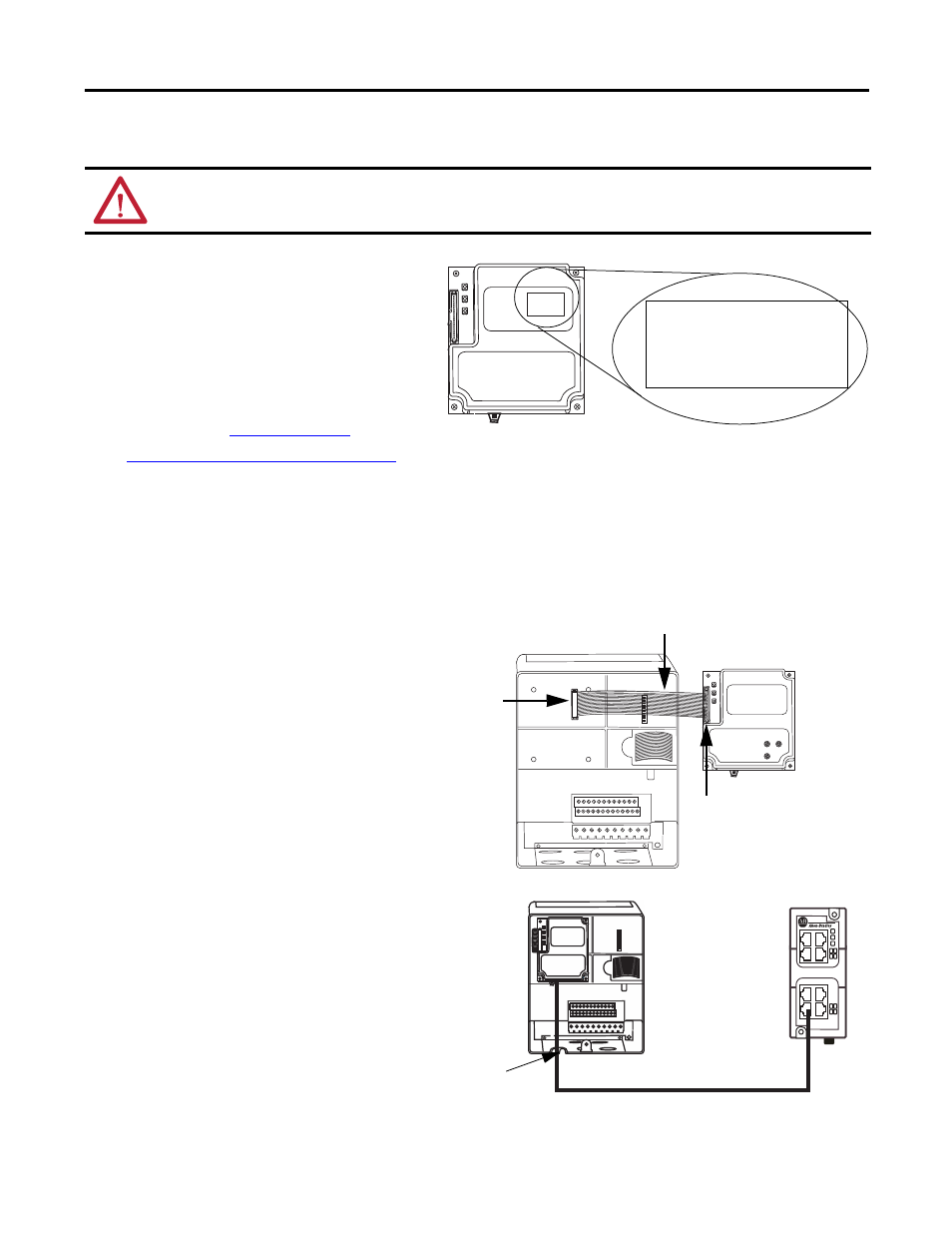

Connect the EtherNet/IP Adapter to the Drive
1.
Before you connect the adapter to
the PowerFlex 70 drive, record the
Ethernet (MAC ID) address.
You need this number to set an IP
address for the adapter, as
described in
EtherNet/IP Adapter on page 18
.
The MAC ID address uses format
xx:xx:xx:xx:xx:xx where each x represents a letter
or numeral. The MAC ID is located on the adapter’s product ID label as shown in the
example graphic.
2.
Connect the Internal Interface
cable to the DPI port on the drive
and the other end to the DPI
connector on the adapter.
3.
Fold the cable under the adapter
without creasing and secure the
adapter on the drive using the
captive screws.
4.
Remove a knockout from the
bottom plate of the drive and route
the Ethernet cable through it.
5.
Connect one end of an Ethernet
cable to the Ethernet adapter and the
other end to the Ethernet switch.
6.
Replace drive cover.
WARNING: Verify that all incoming power is turned off before connecting the adapter to the drive.
22-COMM - E
00:00:BC:08:90:65
20-COMM-E
HW Address: 00:00:BC:08:90:65
Internal Interface Cable
DPI Port
DPI Connector
1
2
3
4
5
6
7
8
Knockout
