Preface

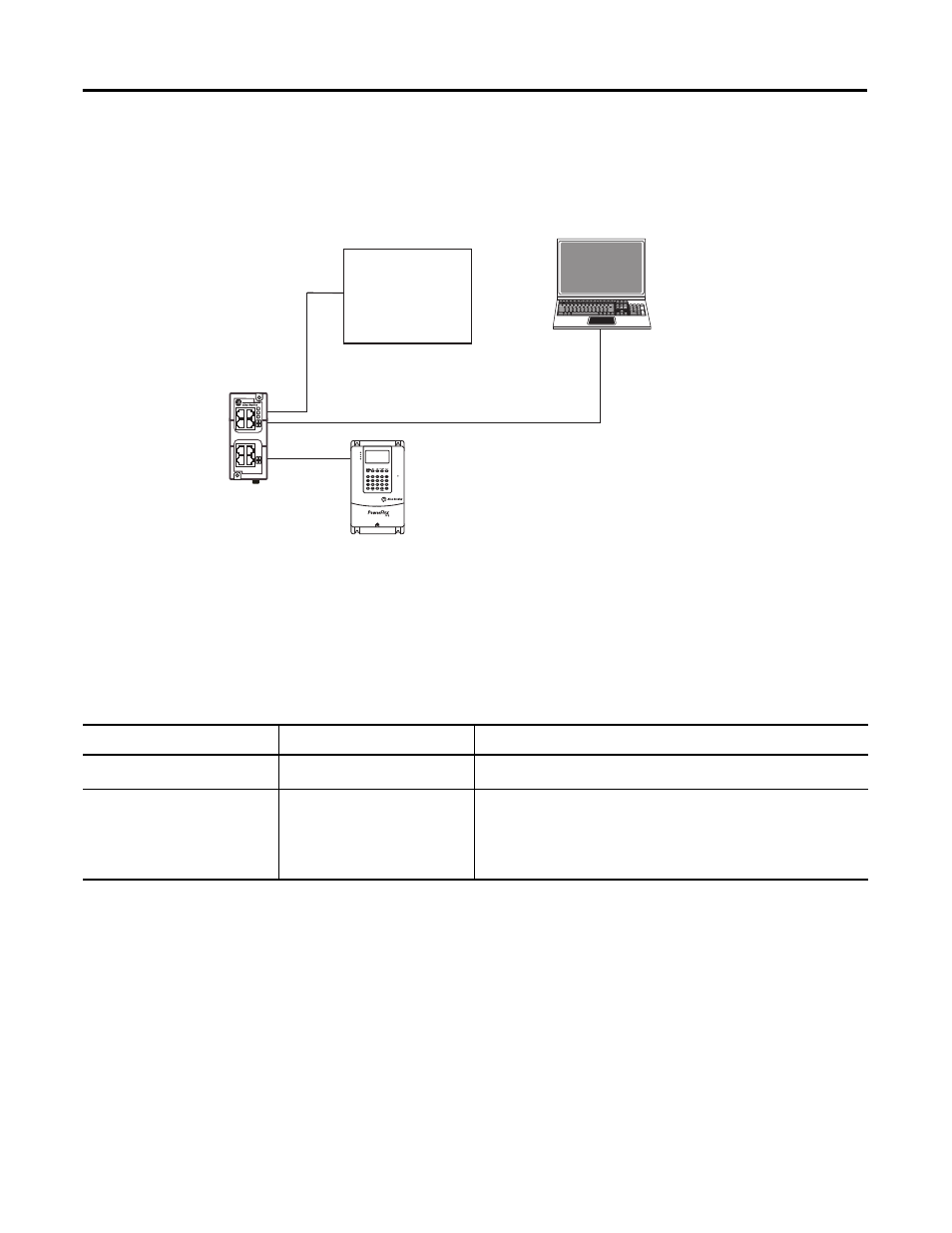

How Hardware is Connected
This quick start demonstrates the following possible control system.
Required Software
To complete examples in this quick start, you need the software described in this table.
Software
Required Version
Required for This Task
RSLogix 5000
20.00.00 or later
(1)
(1) RSLogix 5000 software, version 20.00.00 or later, is required for use of this quick start because the example Logix5000 controller, and associated tasks, described herein
are completed in a CompactLogix 5370 control system. CompactLogix 5370 control systems require RSLogix 5000 software, version 20.00.00 or later. If you connect a
PowerFlex 70 drive over an EtherNet/IP network in a Logix5000 control system that uses a different controller, the minimum version may differ.
Create or change RSLogix 5000 projects to use PowerFlex 70 drives
BOOTP/DHCP utility
Version automatically installed
with RSLogix 5000 software and
varies according to that
software’s version
Set IP address for PowerFlex 70 drive
1
2
3
4
5
6
7
8
PORT
MOD
NET B
NET A
STS
PowerFlex 70 Drive with
20-COMM-E
Communication Card
Stratix 6000
Managed Switch
Logix5000 Controller
with Ethernet
Connection
Computer
