Chapter 7
On-Line Operation
7–3
To make adjustments to the inspection process while on-line:

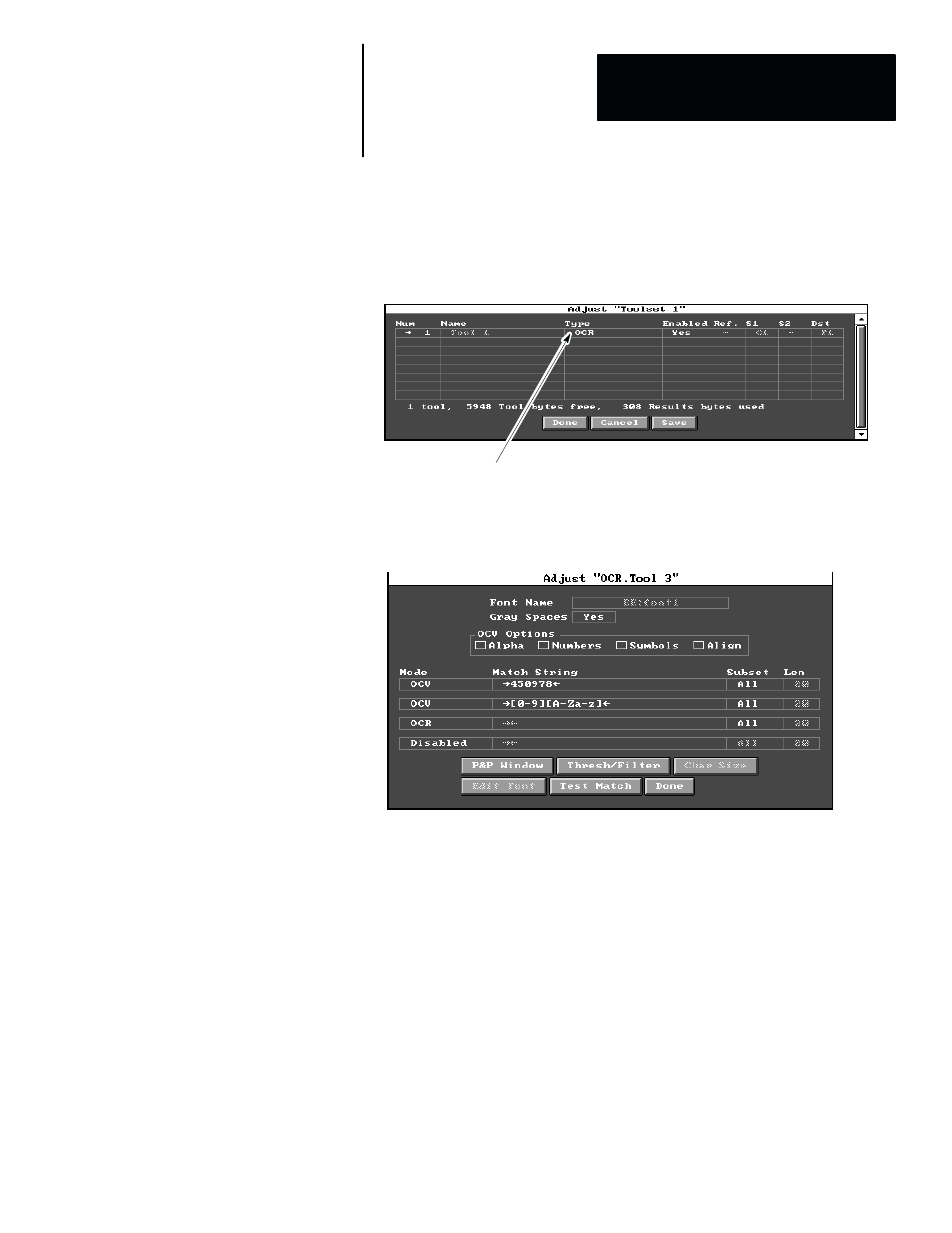

1. Choose the Tools menu from the toolset image display panel.
This displays the Adjust Toolset panel.
Click here to display
Adjust OCR Tool panel.
2. Click in the type box for the OCR Tool on the Adjust Toolset panel to
bring up the Adjust OCR Tool panel.
When on-line, you can adjust the same options available during
configuration except:
•
The Font cannot be changed or edited while on-line.
•
Character Size cannot be adjusted.
•
The size of the OCR Tool’s processing window cannot be increased.
•
The Thresh/Filter settings of the tool can be adjusted, but no processed
image will be displayed.
3. Click the Done button on the Adjust OCR Tool panel. On the Adjust
Toolset panel, click the Save button to save your changes in the tools file,
then the Done button to apply the changes to the next inspection.
On-Line Adjustment
