Chapter 4 Analyzing Reports
• Recipe, batch alarm, and operator prompt summary
information in text form.
• Bar charts showing recipes by batch and by time.
• Three time-series trends.

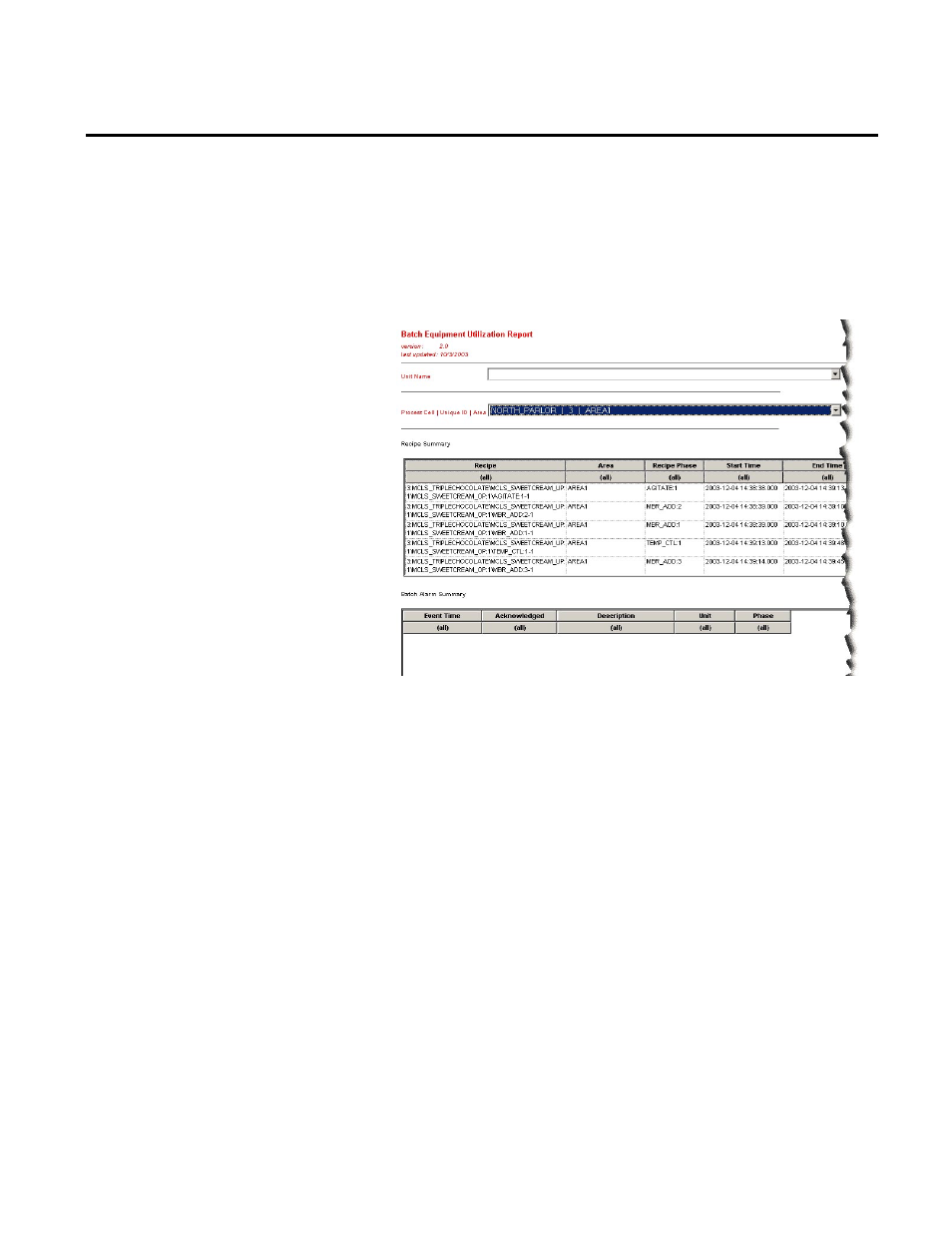

When you switch from Design mode to Preview mode, the Batch
Equipment Utilization report displays information based on the
Unit Name or Process Cell specified in the Report Configuration
Selection. However, you will need to configure the report to obtain
the data you want to display.
From the Unit Name list, you can select the Unit that contains the
equipment utilization you want to see. From the Process
Cell|Unique ID|Area list, you can select the Process Cell that
contains the equipment utilization you want to see.
Time series trend objects contain the Time Selection toolbar at the
top of the object. You can use this toolbar to change the time
parameters of that object. For instance, you can show all times for
this recipe, or select a specific time span. The times and
configurations selected for one object will not affect the information
Selecting Data to Display on
the Batch Equipment
Utilization Report
