Appendix c, Video cables, Hd-15 video connector – Rockwell Automation 6186-Mxxx Industrial Monitors User Manual User Manual
Page 55: Dvi video connector, Appendix c - video cables, Appendix
Publication 6186M-UM001J-EN-P - July 2008
55
Appendix
C
Video Cables
You can use the HD-15 connector cable included with your monitor to
connect the monitor to the host computer.
HD-15 Video Connector
The HD-15 video cable 2 m (6 ft) is equipped with a conventional
HD-15 connector at each end.

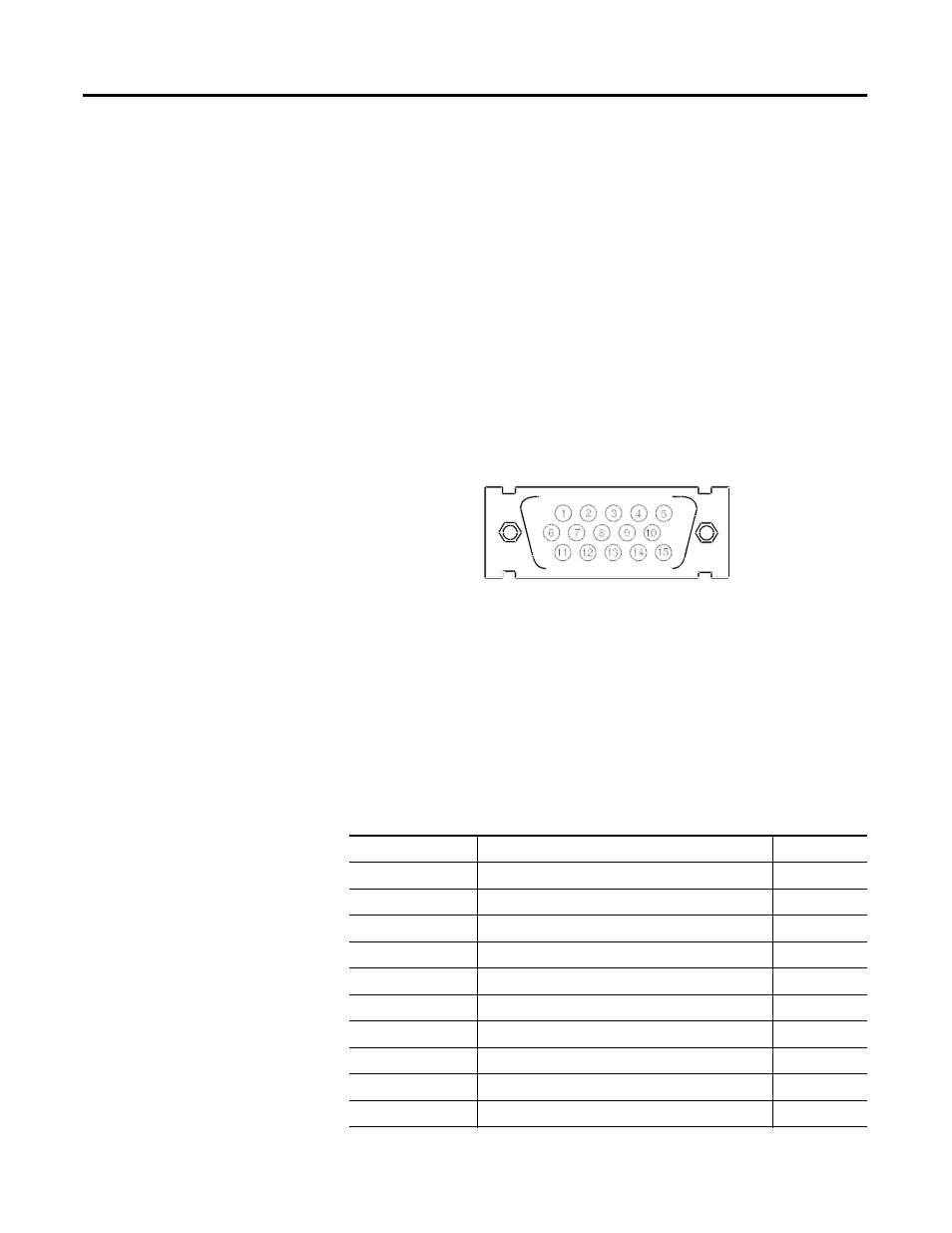

The illustration shows the connector looking into pin end of male
connector or solder term end of female connector.
The Standard HD-15 Video Cable table provides the pin numbers and
corresponding pin assignments for the HD-15 video connector with
the DDC2B capability.
DVI Video Connector
The Standard DVI Video Cable table provides the pin numbers and
corresponding pin assignments for the supported video connectors.
Each connector is female.
Standard HD-15 Video Cable
Monitor (Female)
Signal Description
Host (Male)
1
Red Video
1
2
Green Video
2
3
Blue Video
3
4
Not Used
4
5
Return
5
6
Red Video Ground
6
7
Green Video Ground
7
8
Blue Video Ground
8
9
Not Used
9
10
Sync Ground
10
