Page 42
42
Publication 6186M-UM001J-EN-P - July 2008
Chapter 3 Configure the Video Setup

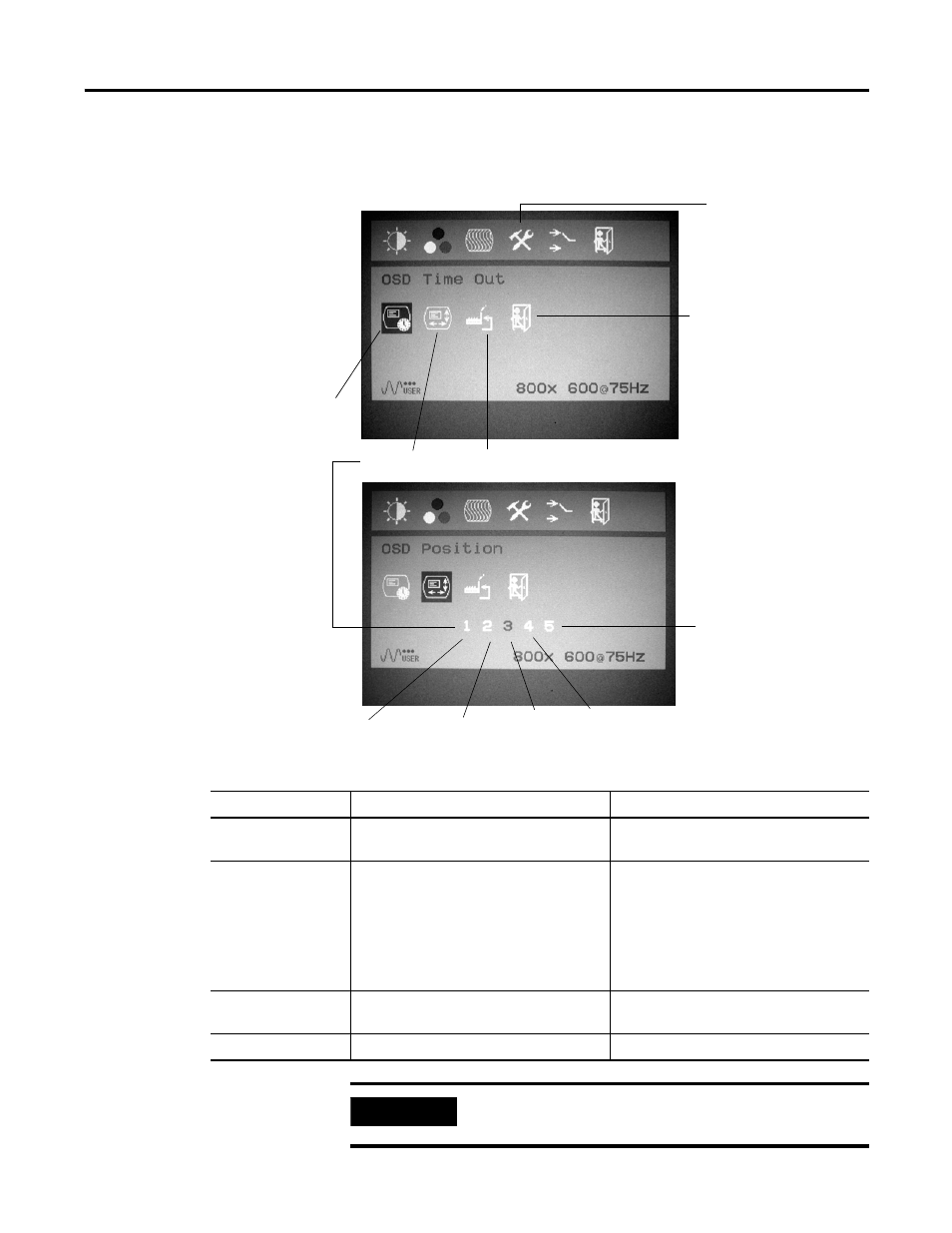

Tools Menu
Tools Menu
Tools Menu
OSD Position
Exit
Left-top Corner
Right-top Corner
Bottom-left Corner
Default-Center
Bottom-right Corner
OSD Time Out
Factory Reset
Tool Functions
Description
Value Range
OSD Timeout
Sets a maximum idle time for exiting the
OSD system if input is not received.
0…60 (default is 30)
OSD Position
Adjusts the position of the OSD menu on
the monitor display:
1 - left top
2 - right top
3 - center
4 - left bottom
5 - right bottom
1, 2, 3, 4, 5 (default is 3)
Factory Reset
Resets all OSD settings to the factory
defaults.
Exit
Exits the Tool menu.
IMPORTANT
All saved settings are lost when you reset OSD settings to the
factory defaults.
