Inputs/outputs, Wiring – Rockwell Automation 1797-BCNR FLEX Ex Redundant ControlNet Barrier Module User Manual
Page 9

FLEX Ex Redundant ControlNet Barrier Module 9
Publication
1797-5.35 - July 2004
Inputs/Outputs
Do not apply any non-instrinsically safe signals to the FLEX Ex side of the
1797-BCNR.
When used as an associated apparatus according to EN50020, the European
directives and regulations must be followed.

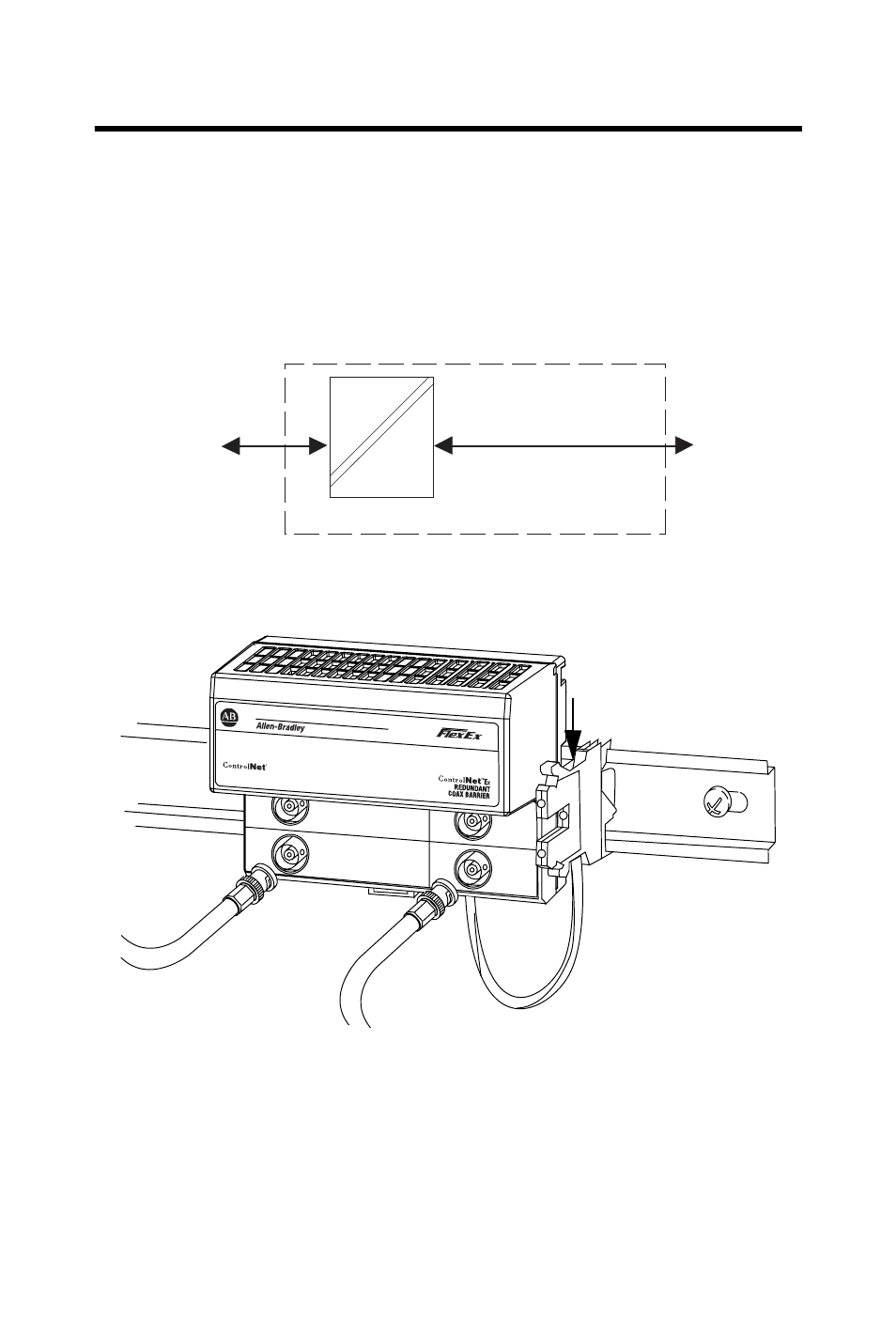

Wiring
1. Connect the ControlNet Ex trunk cable to connector, terminal B
after removing the insulator boot.
43465
ControlNet
1797-BCNR
ControlNet Ex
IS
In
Out
Out
Channel A
Channel B
In
A
B
C
D
30502-mdin
E
Redundant cables
