3 - connecting power, Chapter objectives, Wiring and safety guidelines – Rockwell Automation 2711PC-xxxx PanelView Plus Compact User Manual User Manual

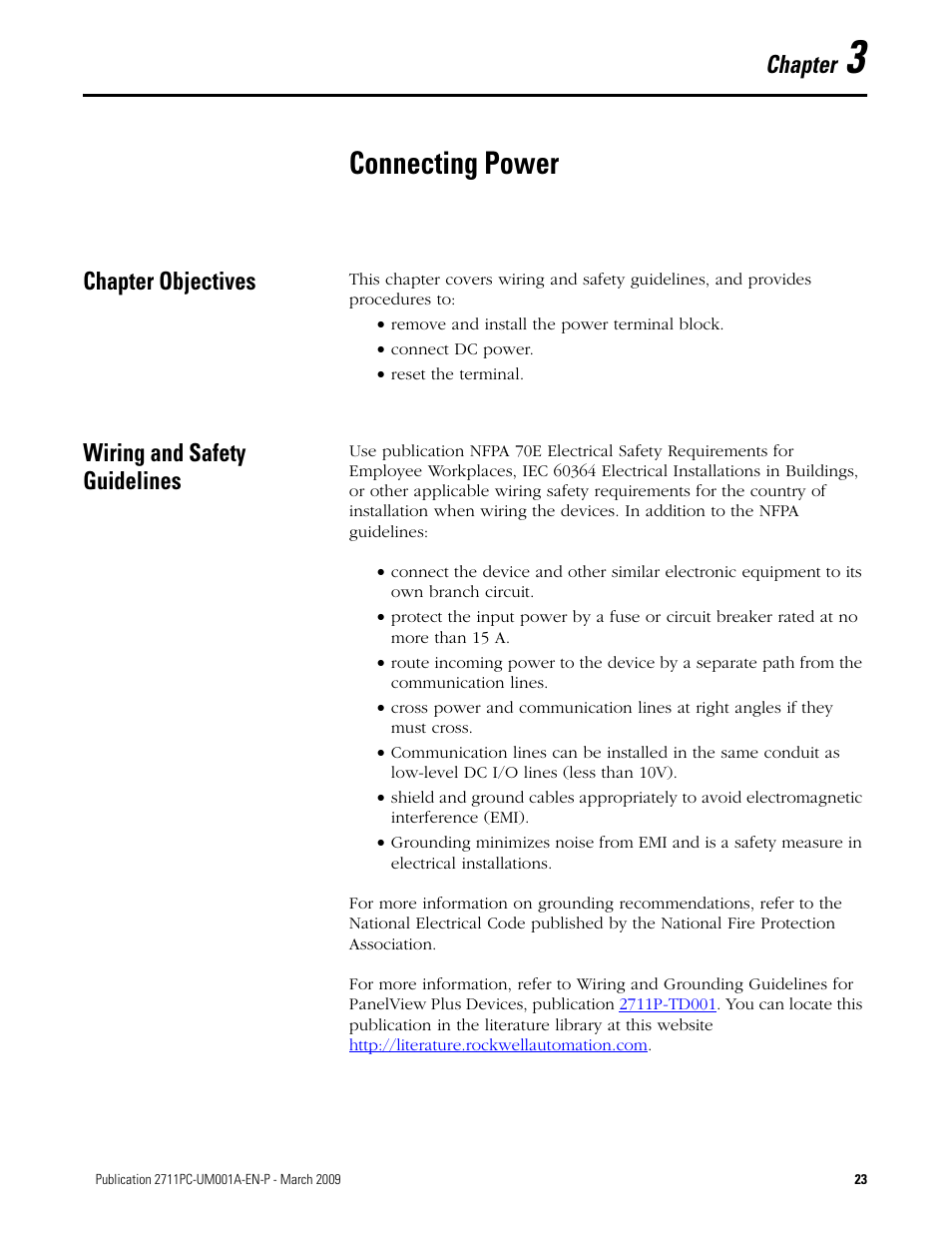

Page 23: Chapter 3, Connecting power, Chapter objectives wiring and safety guidelines, Chapter
