Required tools, Clearances, Cutout dimensions – Rockwell Automation 2711PC-xxxx PanelView Plus Compact User Manual User Manual

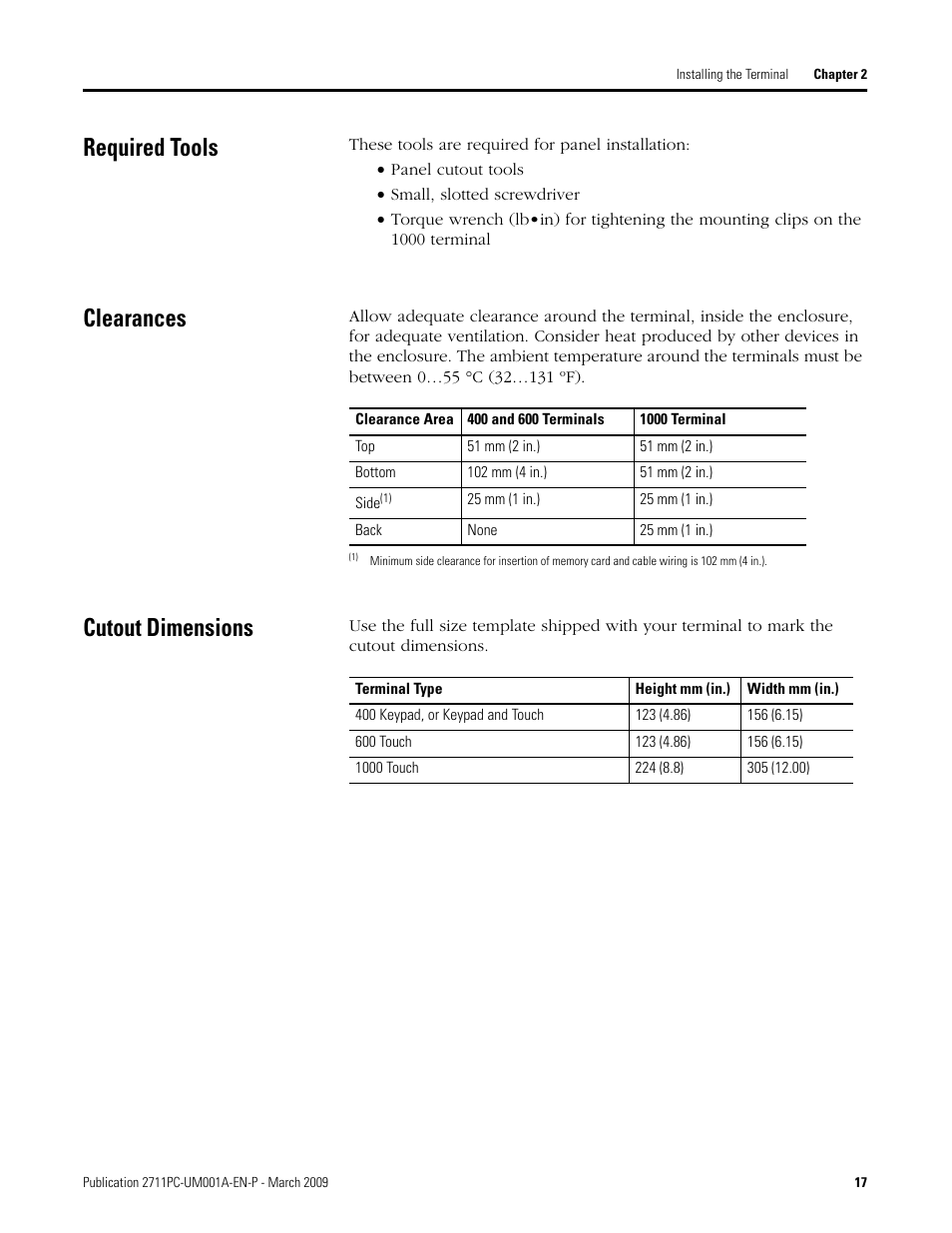

Page 17: Required tools clearances cutout dimensions
