Kinetix 7000 High Power Servo Drives 9
Rockwell Automation Publication 2099-IN003B-EN-P - August 2013

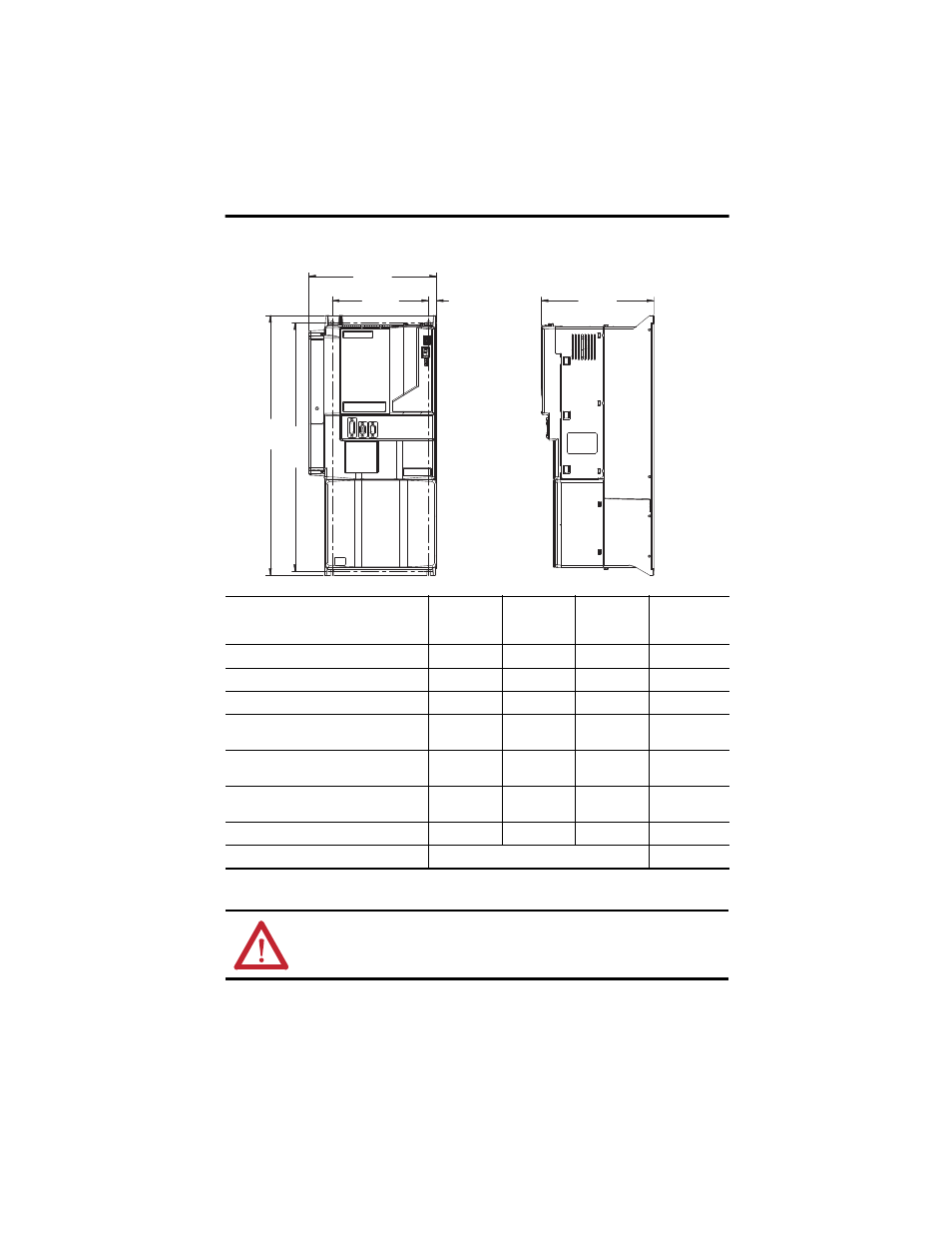

Kinetix 7000 Mounting Dimensions
Attribute
2099-BM06-S
2099-BM07-S
2099-BM08-S
2099-BM09-S 2099-BM10-S
2099-BM11-S
2099-BM12-S
A - Height mm (in.)
517.5 (20.37)
644.5 (25.37)
690.3 (38.47)
977.1 (38.47)
B - Width mm (in.)
254.12(10.0)
331.9 (13.07)
331.9 (13.07)
429.2 (16.90)
C - Depth mm (in.)
224.3(8.83)
286.7 (11.29)
286.7 (11.29)
282.7 (11.13)
M1 - Vertical mm (in.) from mounting hole to
mounting slot
495.0(19.49)
625.0 (24.61)
625.0 (24.61)
824.0 (32.44)
M2 - Horizontal mm (in.) between mounting holes
and slots
192.0(7.56)
225.0 (8.86)
225.0 (8.86)
300.0 (11.81)
M3 - Offset in mm (in.) from right of drive to
center line of mounting hole and slot
15.3(0.60)
37.5 (1.48)
37.5 (1.48)
49.6 (1.95)
Fastener sizing for mounting holes and slots
M6 (0.25 in.)
M6 (0.25 in.)
M6 (0.25 in.)
M8 (0.31 in.)
Torque for low-carbon steel bolts
(1)
(1)
Fasteners constructed from material other than low-carbon steel have different torque requirements.
0.7 N•m (6 lb•in)
2.3 N•m (20 lb•in)
ATTENTION: A sticker is affixed over the top vents on the drive to prevent metal debris or other
foreign matter from becoming lodged in the circuitry during installation. Remove this sticker
after completing all installation activities in the cabinet, and before applying power to the drive.
B
C
M1
M2
M3
A
2099-BM07 Drive Shown
