Configuring the MobileView Terminal 3-11
Checking the Operating and
Control Elements
You can verify the operating and control elements of the MobileView
terminal using the System Check software. You can check the
following operating and control elements:
• Override potentiometer (option)
• Electronic handwheel (option)
• Membrane Keypad
• Touch screen
• Display
• Illuminated push button (option)
• Key switch (option)
• IPSM Flash file system
The following safety elements cannot be checked with this utility:
• Emergency stop switch
• Enabling switches

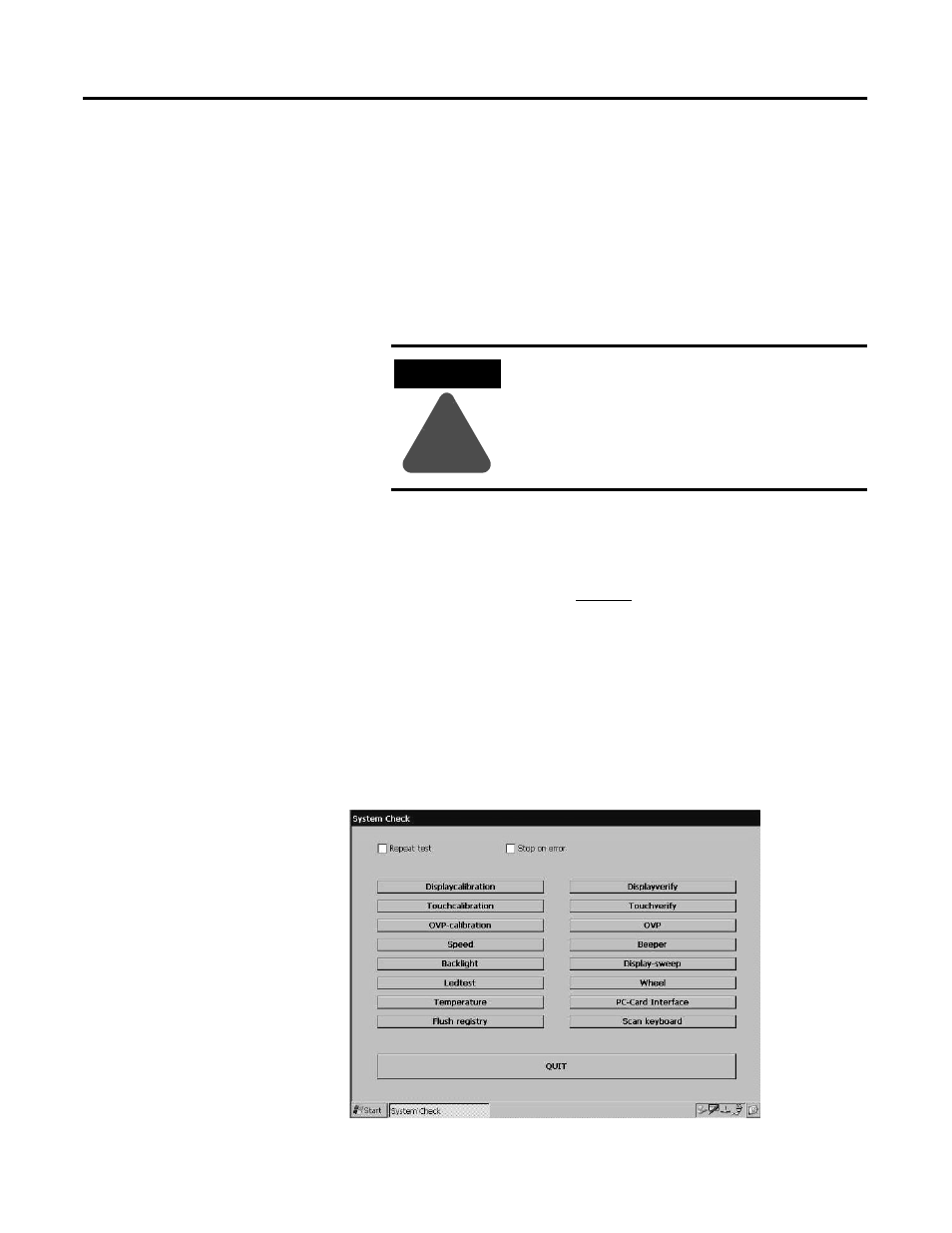

The System Check software also lets you check the MobileView
terminal data, such as the CPU memory, interface module, or
operating elements.
To run this software, select:
Start>Programs>MobileView>System Check
ATTENTION
!
Any changes to the contrast or brightness
setting in the display backlight system check
will be applied to the MobileView terminal and
the configuration tool.
