Preface
APS Quick Start for New Users
A–6
Entering a Timer Instruction
In exercise 2, you enter a timer instruction with a time delay of 10 seconds. Two
different types of timer status bits activate output pilot lights #0 and #1. The first
type, called a “timer timing” status bit turns on output #0 for 10 seconds. The
second type, called a “done” status bit, turns on output #1 after 10 seconds.
Exercise 2: Entering a Timer Instruction
We are assuming you have created a new file, configured it and you are now ready
to begin entering an instruction. See chapter 3 for help with the above. Begin
offline at the edit screen.

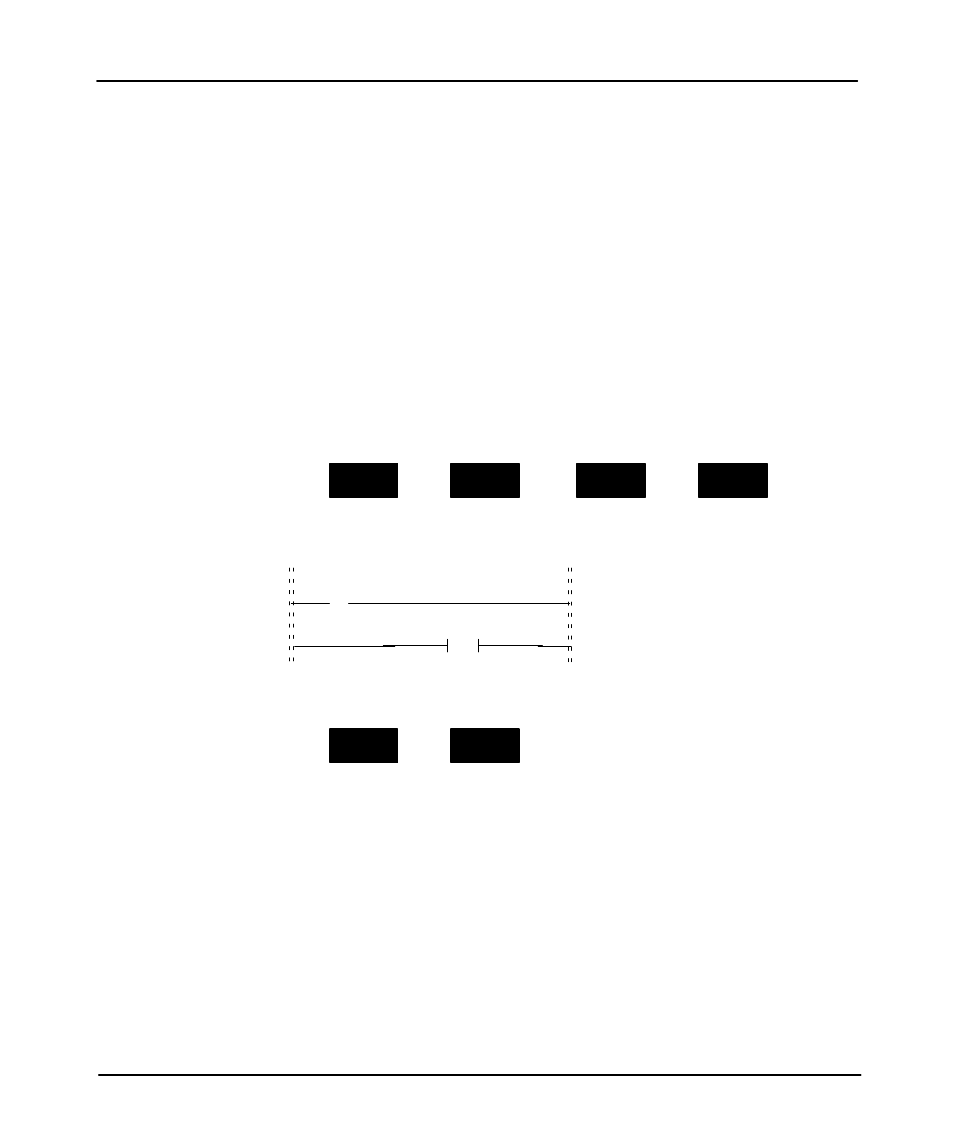

1. Enter a rung and an XIC instruction.
Press
CONFIG OFFLINE
CONFIG
APPEND
RUNG
F3
, then
CONFIG OFFLINE
CONFIG
INSERT
INSTR
F4
, then
CONFIG OFFLINE
CONFIG
BIT
F1
, then
CONFIG OFFLINE
CONFIG
XIC
-] [-
F1
. Type the
address I:1/0 then press [ENTER] .
] [
I:1
0
END
2. Enter the timer instruction.
Press
CONFIG OFFLINE
CONFIG
TIMER
COUNTER
F2
, then
CONFIG OFFLINE
CONFIG
TON
F1
.
Type the address T4:0 then press [ENTER] . This is the Timer Address.
Type the timebase .01 then press [ENTER] . This is the timebase in seconds.
Type 1000 then press [ENTER] . This is the Timer Preset Value in hundredths
of a second.
