Connect dc power – Rockwell Automation 2711P-RDT12H High-bright Display Module User Manual
Page 20
20 High-bright Display Modules
Publication 2711P-IN026E-EN-P - September 2008
Connect DC Power
Follow these steps to connect the terminal DC power.
1. Verify that the terminal is not connected to a power source.
2. Secure the DC power wires to the terminal block.
Follow the markings on the terminal blocks and the terminal for proper
connections.
3. Secure the earth/ground wire to the earth/ground terminal screw at the
bottom of the display.

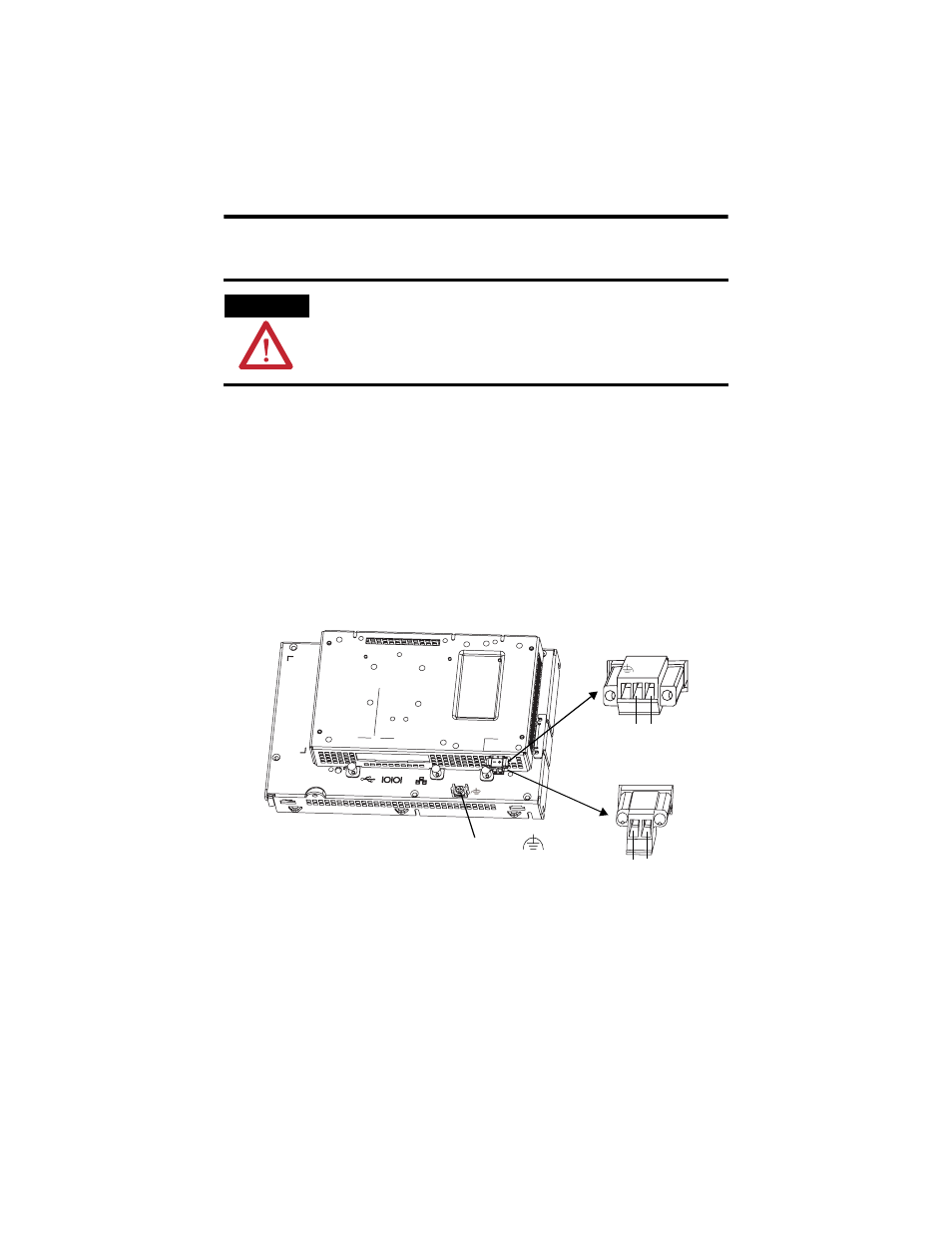

DC Power Supply Connections
WARNING
Explosion Hazard - Do not disconnect equipment unless power has been switched off and
the area is known to be nonhazardous.
Disconnect all power before installing or replacing components. Failure to disconnect
power may result in electrical shock or damage to the terminal.
GND
Two-position Terminal Block
(Series E or later logic modules)
Three-position Terminal Block
(Series A to D logic modules)
+
–
–
+
Earth/Ground to Ground Bus
DC - DC+
DC- DC+
GND
