4 MobileView Connection Cable
Publication 2727-IN004C-MU-P
MobileView Connection Cable
* For connection to MobileView Guard G750 terminals only.

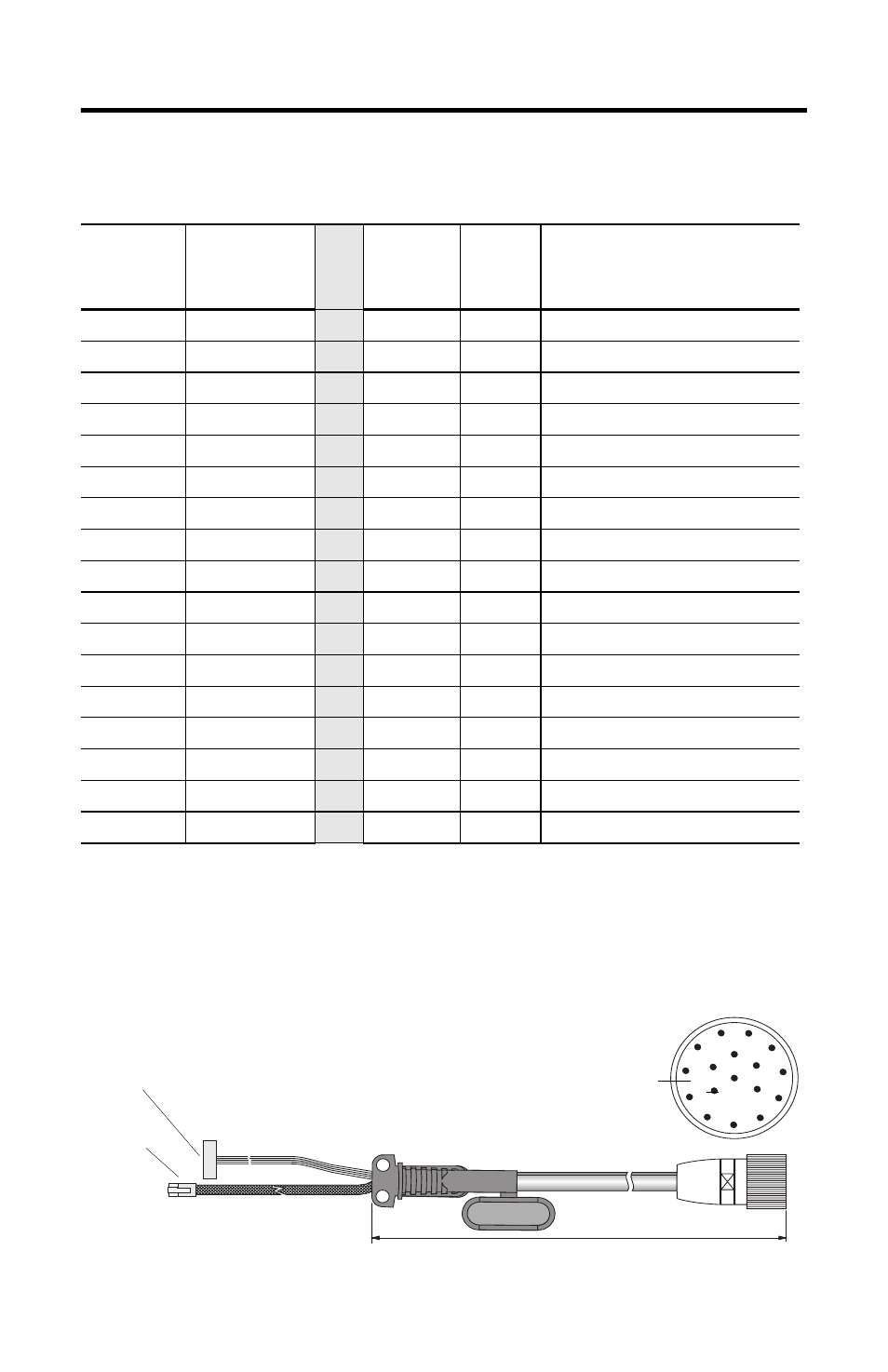

Connection Cable Diagram
K1, 17-pin
Circular
Jack Pin #
MobileView
Connection
Cable
Wire Color
K3, 11-pin
female
connector
S19
K2, 8-pin
RJ-45
Ethernet
Description
1 pink -->> 6 - 24V dc
2 black -->> 7 - GND_IN
3 green-brown -->> 8 - E-stop, circuit 1, positive *
4 white-green -->> 9 - E-stop, circuit 1, negative *
5 grey-pink -->> 10 - E-stop, circuit 2, positive *
6 red-blue -->> 11 - E-stop, circuit 2, negative *
7 brown -->> 1 - Enabling switch, circuit 1, positive *
8 yellow -->> 2 - Enabling switch, circuit 1, negative *
12 green -->> 3 - Enabling switch, circuit 2, positive *
17 grey -->> 4 - Enabling switch, circuit 2, negative *
9 bridge to pin 10 -->> - - Not used
10 bridge to pin 9 -->> - - Not used
11 violet -->> 5 - Not used
13 blue -->> - 1 TD+ (transmit)
14 white -->> - 2 TD- (transmit)
15 orange -->> - 3 RD+ (receive)
16 red -->> - 6 RD- (receive)
K2, 8-pin
RJ-45 jack
to S4 at
MobileView
terminal.
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
K3, 11-pin female connector to S19
at MobileView terminal.
K1, 17-pin
circular connector
5, 10, 15 or 20 mm
(6.4, 32.8, 48.2 or 65.6 ft)
