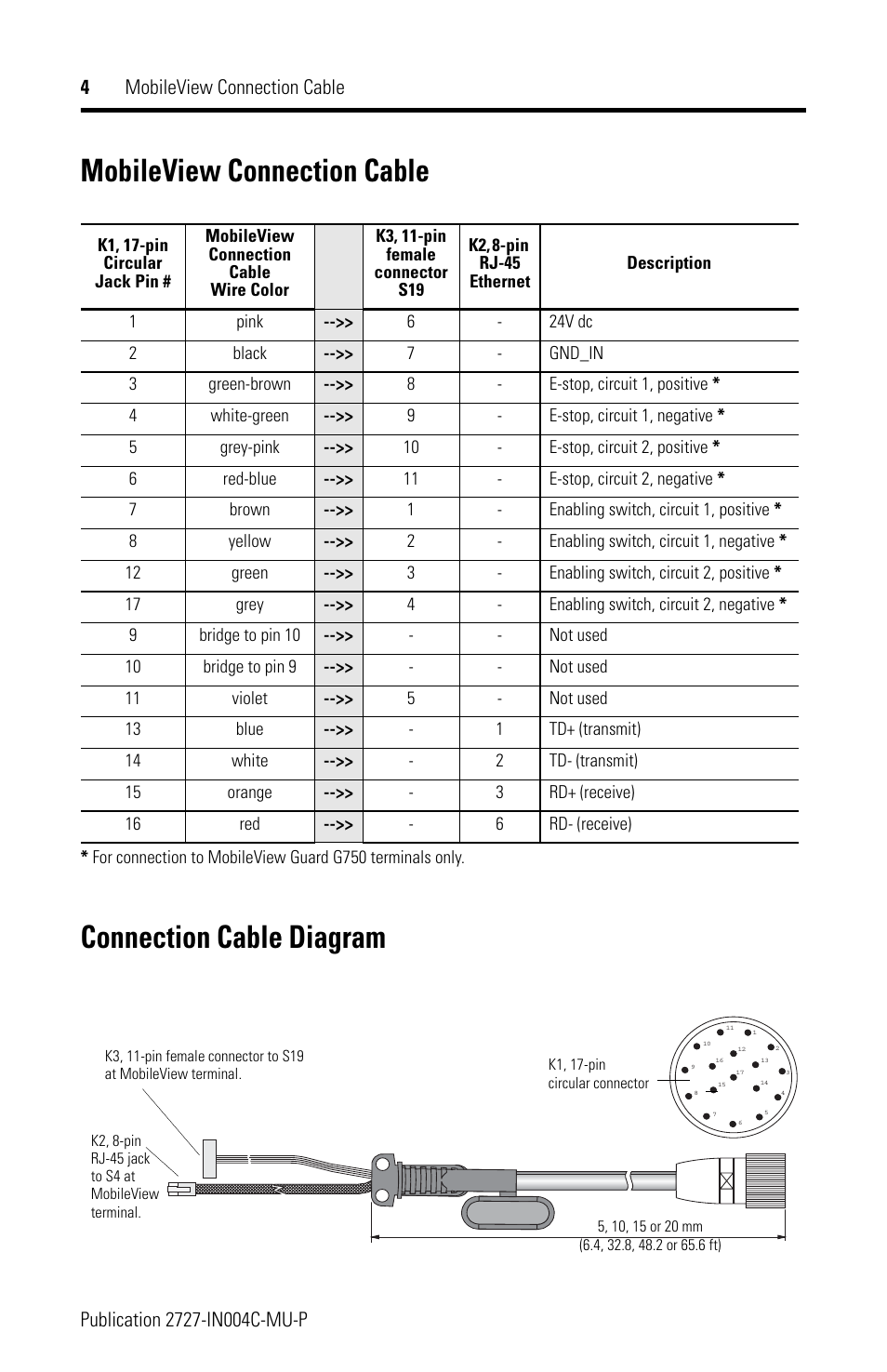

Mobileview connection cable, Connection cable diagram – Rockwell Automation 2727-MRT5_10_15_20 MobileView Connection Cable Installation Instructions User Manual
