Cable de conexión mobileview, Diagrama del cable de conexión – Rockwell Automation 2727-MRT5_10_15_20 MobileView Connection Cable Installation Instructions User Manual

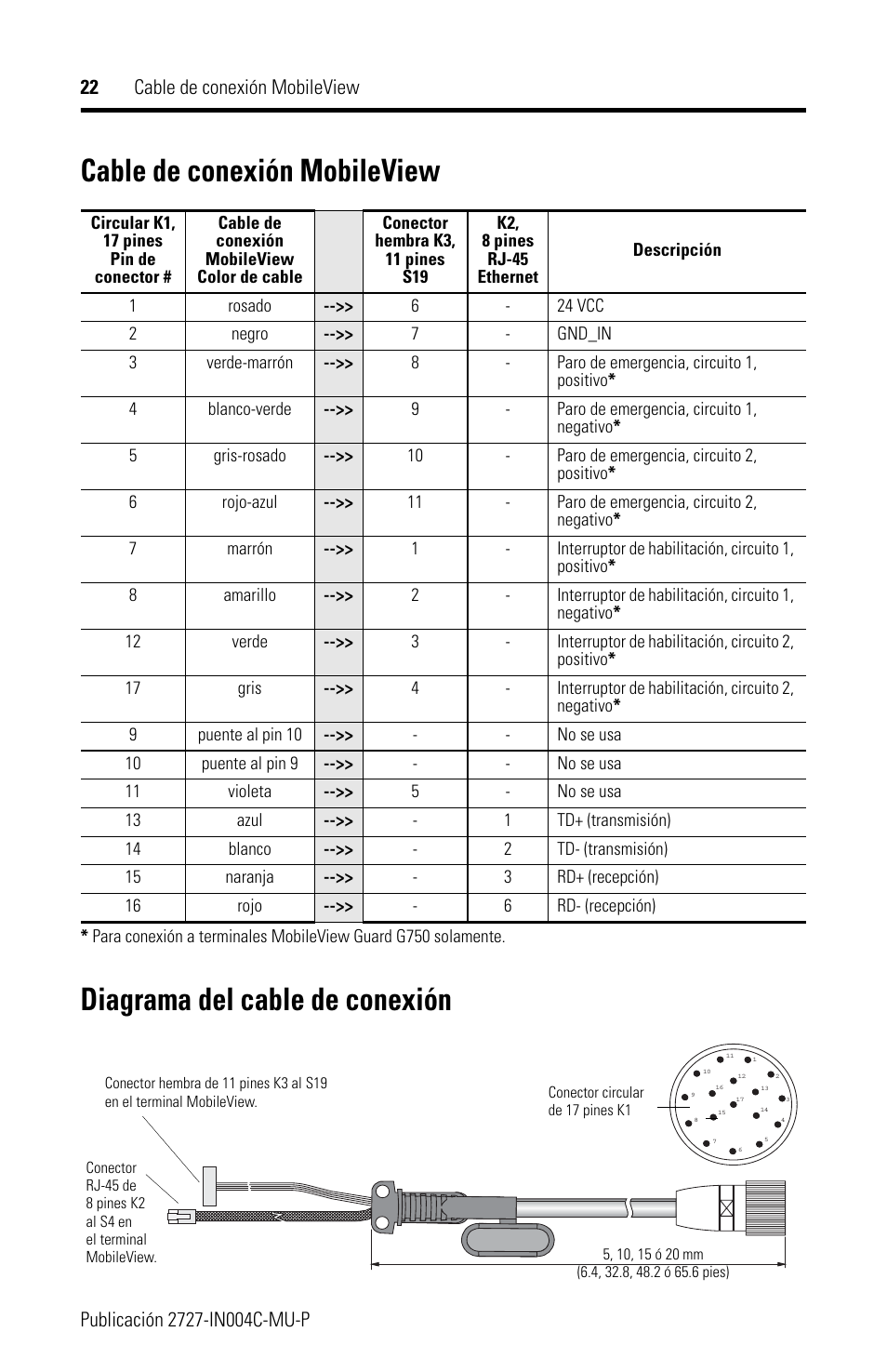

Page 22
