ArmorBlock MaXum 12 Input/ 4 Output Module With Ground Lug 9

Publication

1792D-IN056A-EN-P - October 2004

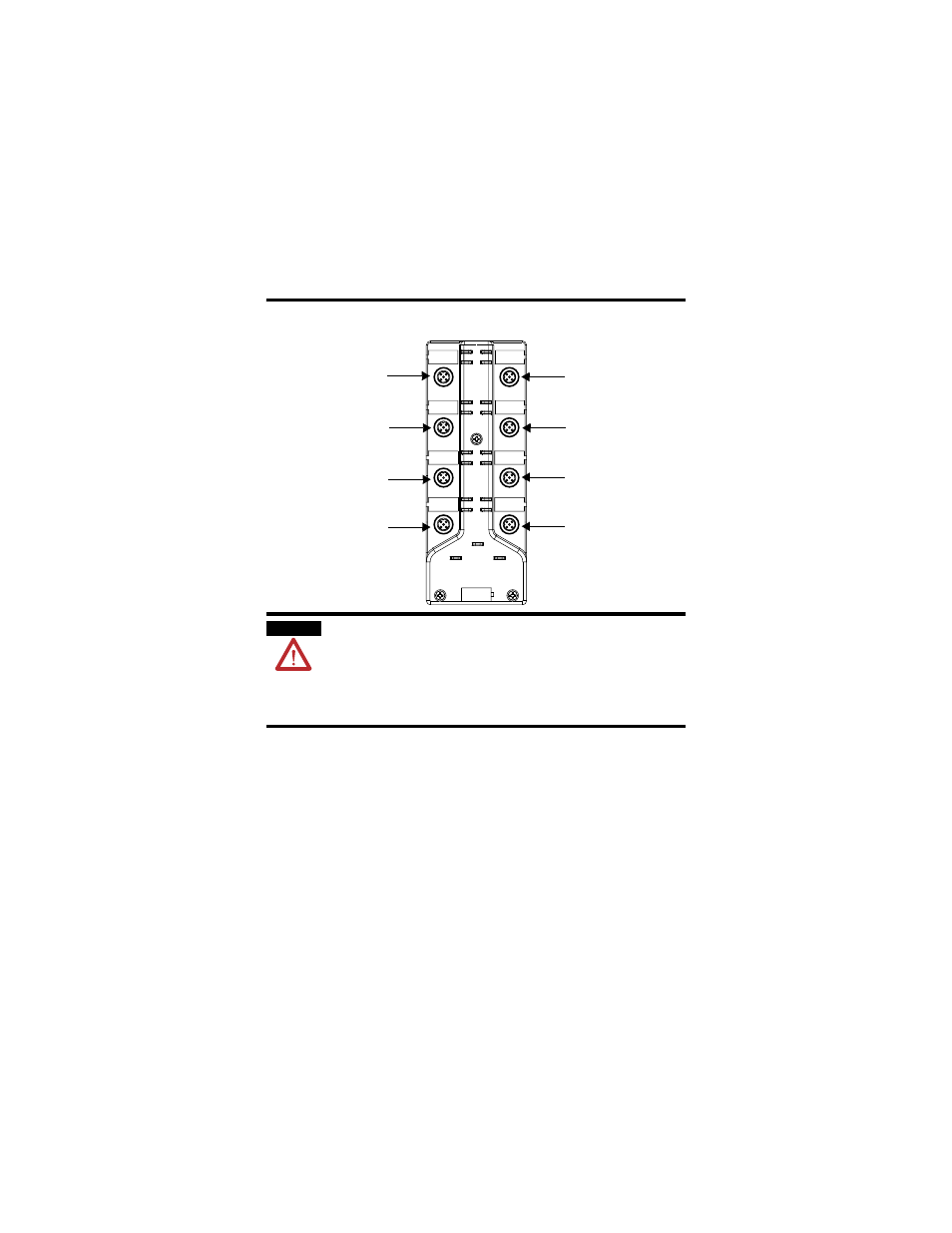

I/O connectors for this module are shown below.

Output Power and DeviceNet Cables

Output power and DeviceNet cables are described in the installation
publications for the cable base assembly of your choice. Refer to the
following publications:

• 1792D-IN009 ArmorBlock MaXum Cable Base Installation
Instructions

• DN-6.7.2 DeviceNet Cable Planning and Installation Manual

WARNING

If you connect or disconnect wiring while the
field-side power is on, an electrical arc can occur.
This could cause an explosion in hazardous
location installations. Be sure that power is
removed or the area is nonhazardous before
proceeding.

I-2

I-3

I-4

I-5

I-9

I-8

I-0

I-1

I-11

I-10

I-7

I-6

Logic Status

Net/Mod Status

O-0

O-1

O-3

O-2

Auxiliary Power

42339

Output 0
Output 1

Input 0
Input 1

Input 2
Input 3

Input 4
Input 5

Output 3
Output 2

Input 11
Input 10

Input 9
Input 8

Input 7
Input 6

Connector A

Connector B

Connector C

Connector F

Connector E

Connector D
