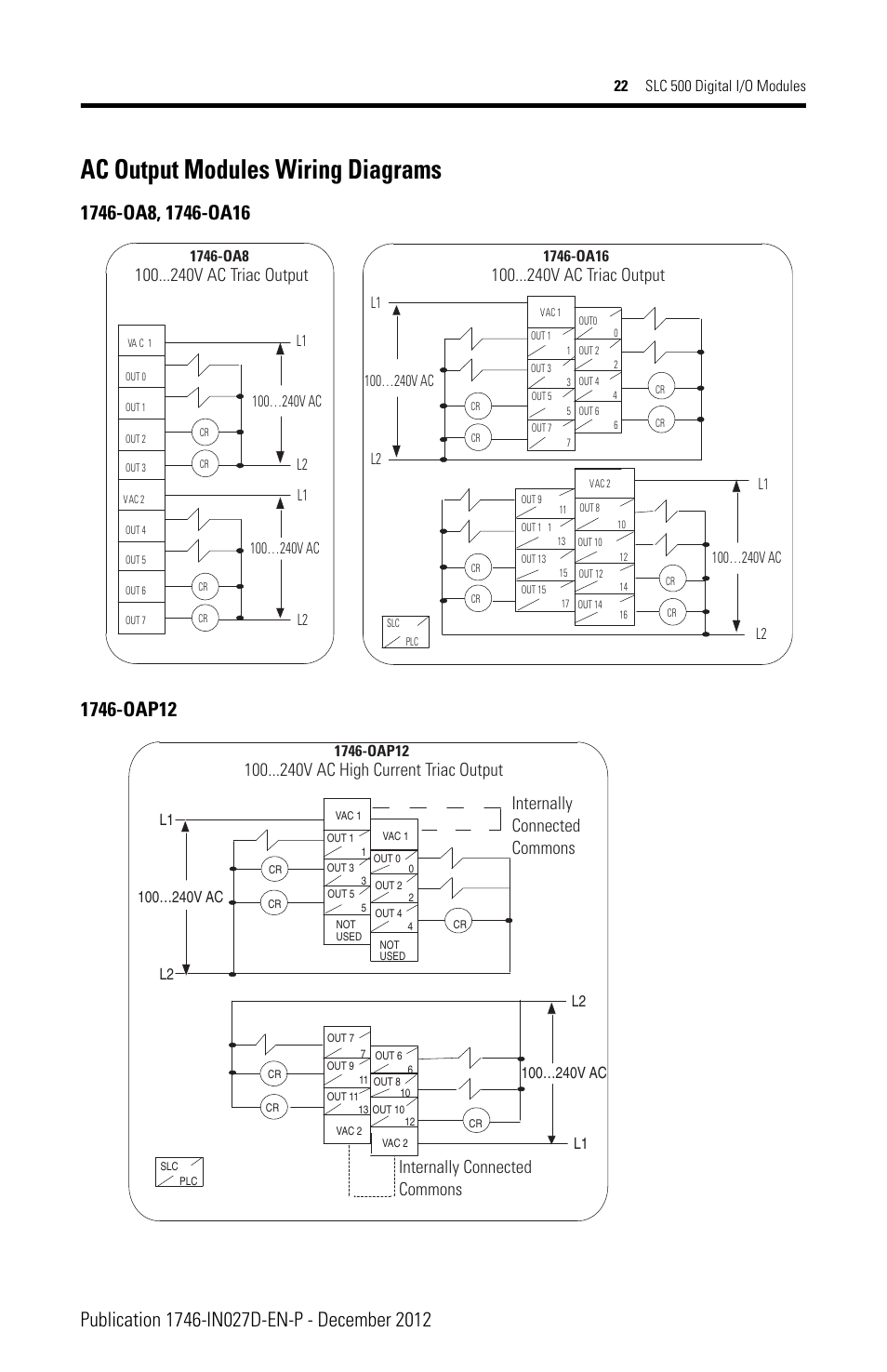

Ac output modules wiring diagrams, 100 v ac triac output – Rockwell Automation 1746-XXXX SLC 500 Digital I/O Modules Installation Instructions User Manual
Page 22
