ControlNet IP67 Tap and Cable Assembly Kit Installation Instructions 9
Publication 1786-IN017B-EN-P - May 2004
4. Attach the tap body to the isolated bulkhead connector using the 1786-TNCLP4
plug-to-plug adapter.
5. Attach the drop cable to the bulkhead connector. Attach the other end to the
ControlNet node.
Terminate the Cable
IMPORTANT
To make IP67-approved crimps when installing connectors onto a cable,
order the ControlNet Coax Tool Kit, catalog number 1786-CTK). You
can also use this tool kit to make standard coax cables.
For more information on the ControlNet Coax Tool Kit, contact your
Rockwell Automation representative or refer to the ControlNet Coax
Media Planning and Installation Guide, publication CNET-IN002. You
can order a paper copy or view an electronic copy of this manual at
www.theautomationbookstore.com, or call 1-800-963-9548.
For more information on how to properly terminate cables, refer to the
ControlNet BNC installation training video on compact disk, publication
CNET-DM001. This CD is available from
www.theautomationbookstore.com or by calling 1-800-963-9548.
IMPORTANT
Do not cut, lengthen, or substitute the drop cable supplied in this kit.
Doing so may diminish the integrity of your ControlNet network
connection.

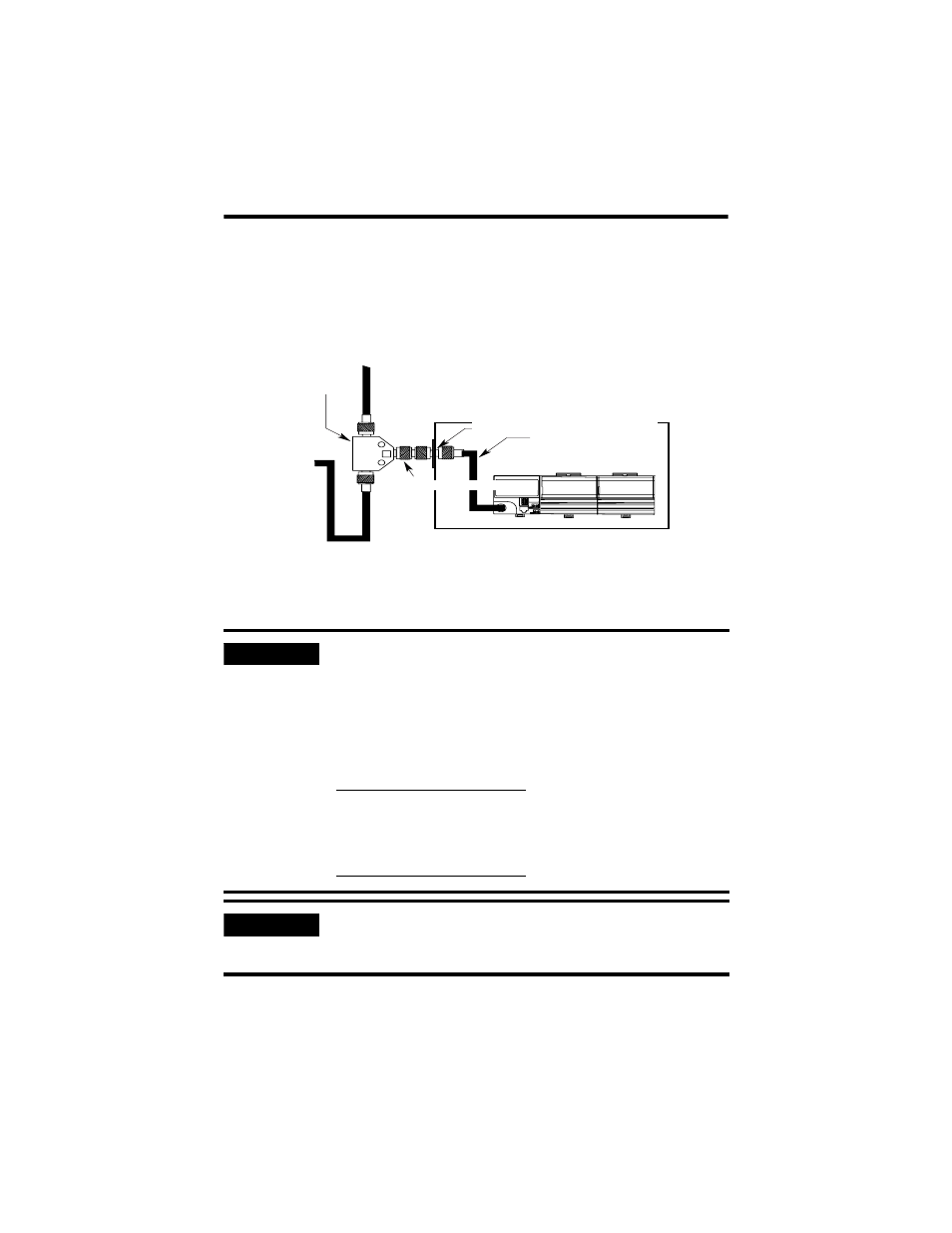

1786-TCT2BD1
TNC tap
1786-TNCJI4 jack-to-jack isolated bulkhead
1 meter drop cable to device
1786-TNCLP4 plug-to-plug adapter
